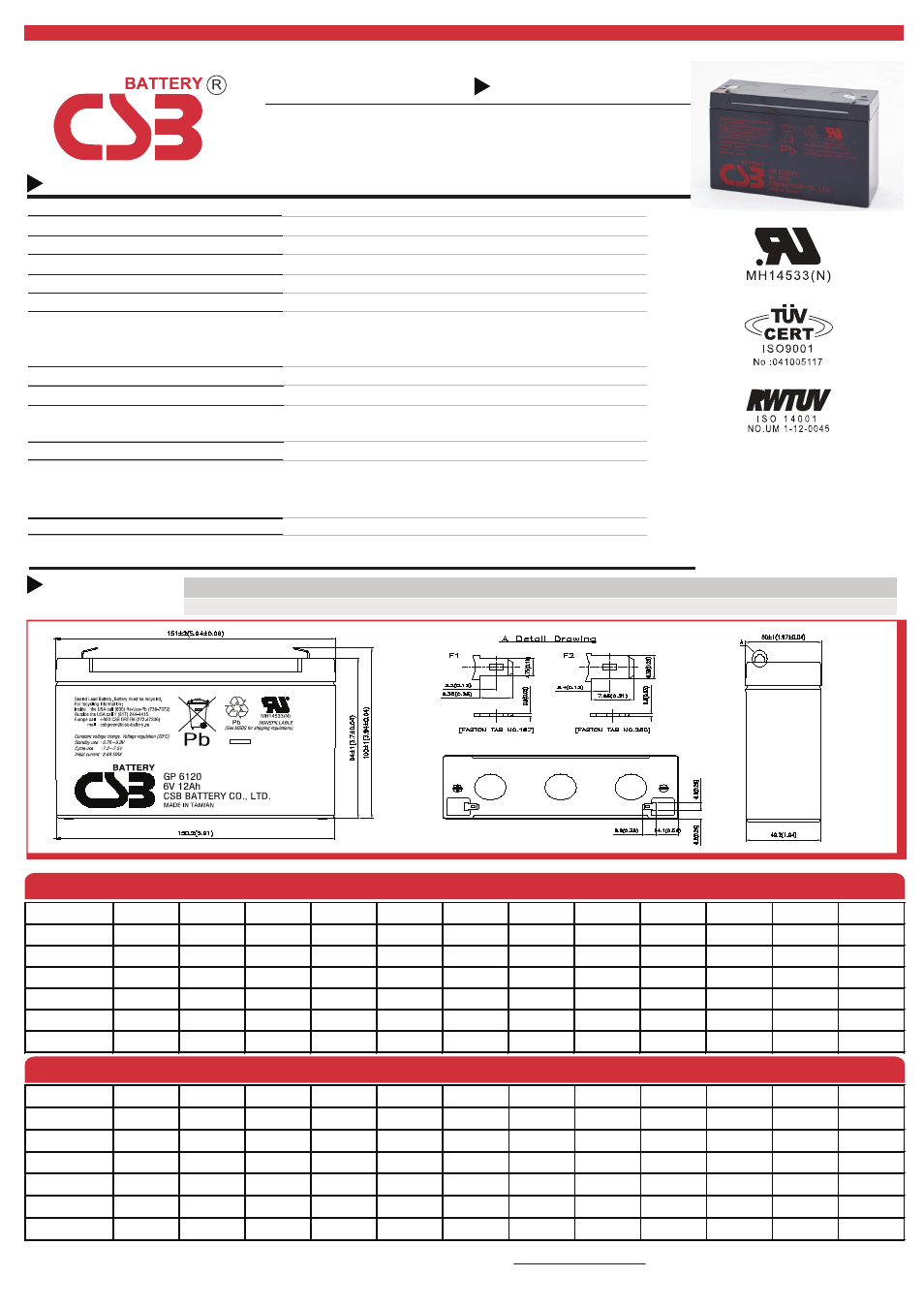

CSB Battery GP6120 User Manual
Gp 6120, 6v 12ah, Powered by
Cells Per Unit
3
Voltage Per Unit
6
Capacity
12A h @ 20hr-rate to 1.75V per cell
Weight
Approx. 1.85 kg(4.08 lbs)
Maximum Discharge Current
150A/180A(5sec)
Internal Resistance
Approx. 8.5 mΩ
Operating Temperature Range
Nominal Operating Temperature Range
Float Charging Voltage
6.75 to 6.9 VDC/unit Average at
Recommended Maximum Charging
3.6A
Current Limit
Equalization and Cycle Service
7.2 to 7.5 VDC/unit Average at
Self Discharge
CSB Batteries can be stored for more than 6 months at
Please charge batteries before using. For
higher temperatures the time interval will be shorter.
Terminal
F1/F2-Faston Tab187/250
Container Material
ABS(UL 94-HB) & Flammability resistance of
(UL 94-V0) can be available upon request.
Discharge:
Charge:
Storage:
Constant Current Discharge Characteristics Unit:A (25°C,77°F)
GP 6120
6V 12Ah
Specification
Powered by
GP 6120 is a general purpose battery up to 5 years in standby
service or more than 260 cycles at 100% discharge in cycle
service. As with all CSB batteries, all are rechargeable , highly
efficient , leak proof and maintenance free.
Width (W)
Dimensions :
Unit: mm (inch)
Overall Height (H)
Container height (h)
Length (L)
100±1 (3.94±0.04)
94±1 (3.7±0.04)
151±2 (5.94±0.08)
50±1 (1.97±0.04)
CSB-manufactured
VRLA
batteries are UL-
recognized components
under UL1989.
CSB is also certified by
ISO 9001 and ISO 14001.
(http://www.csb-battery.com)
by TUV CERT according to ISO 9001,ISO 14001.
The system of manufacturer was certified
F.V/Time
5MIN
10MIN
15MIN
30MIN
60MIN
90MIN
2HR
3HR
5HR
8HR
10HR
20HR
1.60V
51.2
33.2
23.9
13.9
8.14
5.90
4.69
3.37
2.24
1.45
1.19
0.62
1.67V
48.2
32.0
23.6
13.7
8.12
5.84
4.62
3.35
2.21
1.44
1.18
0.61
1.70V
46.3
31.6
23.3
13.6
8.08
5.82
4.61
3.32
2.18
1.43
1.17
0.61
1.75V
43.3
30.0
22.6
13.4
8.03
5.77
4.57
3.26
2.13
1.40
1.15
0.61
1.80V
38.8
28.0
21.5
13.0
7.81
5.64
4.48
3.17
2.06
1.37
1.14
0.59
1.85V
34.2
25.3
19.8
12.3
7.51
5.41
4.29
3.03
1.97
1.32
1.09
0.57
F.V/Time
5MIN
10MIN
15MIN
30MIN
60MIN
90MIN
2HR
3HR
5HR
8HR
10HR
20HR
1.60V
269
173
134
79.8
48.9
35.3
28.0
19.8
12.7
8.36
6.91
3.85
1.67V
257
171
132
79.6
48.8
35.1
27.8
19.7
12.6
8.30
6.85
3.81
1.70V
250
168
131
78.8
48.5
35.0
27.7
19.5
12.5
8.25
6.80
3.80
1.75V
231
163
128
78.1
48.1
34.6
27.5
19.3
12.2
8.12
6.69
3.77
1.80V
209
153
121
76.3
47.4
34.0
26.8
18.9
12.0
7.91
6.52
3.71
1.85V
185
140
111
72.2
45.8
33.1
26.3
18.1
11.7
7.73
6.36
3.61
Constant Power Discharge Characteristics Unit:W (25°C,77°F)
@25°C (77°F)
25°C (77°F)
25°C (77°F)
25°C (77°F).
-15°C~50°C ( 5°F~122°F)
-15°C~40°C ( 5°F~104°F)
-15°C~40°C ( 5°F~104°F)
25°C±3°C (77°F±5°F)
RA1308
Ratings presented herein are subject to revision without notice. Please refer to www.csb-battery.com to confirm the latest version.
