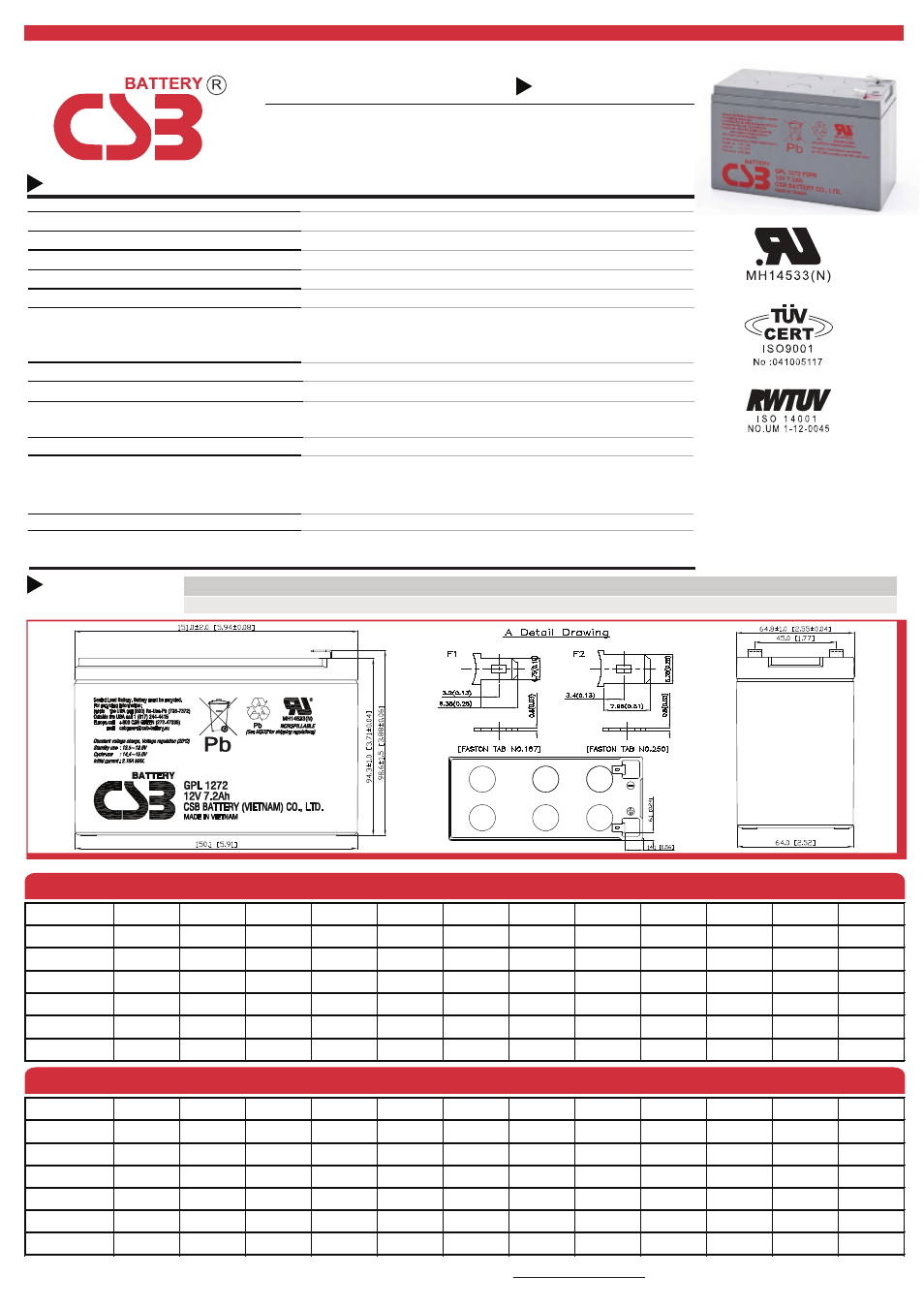

Gpl 1272, 12v 7.2ah, Powered by

background image

Cells Per Unit

6

Voltage Per Unit

12

Capacity

7.2Ah @ 20hr-rate to 1.75V per cell

Weight

Approx. 2.6 kg(5.73 lbs)

Maximum Discharge Current

100A/130A(5sec)

Internal Resistance

Approx. 21 mΩ

Operating Temperature Range

Nominal Operating Temperature Range
Float Charging Voltage
Recommended Maximum Charging

2.16A

Current Limit
Equalization and Cycle Service

14.4 to 15.0 VDC/unit Average at

Self Discharge

CSB Batteries can be stored for more than 6 months at

25°C (77°F). Please charge batteries before using . For

higher temperatures the time interval will be shorter.

Terminal

F1/F2-Faston Tab187/250

Container Material

ABS(UL 94-HB) & Flammability resistance of

(UL 94-V0) can be available upon request.

Discharge:
Charge:
Storage:

Constant Power Discharge Characteristics Unit:W (25°C,77°F)

Constant Current Discharge Characteristics Unit:A (25°,77°F)

GPL 1272

12V 7.2Ah

Specification

Powered by

GPL 1272 is a general purpose battery up to 8 years in standby

service or more than 260 cycles at 100% discharge in cycle

service . As with all CSB batteries, all are rechargeable , highly

efficient , leak proof and maintenance free.

13.5 to 13.8 VDC/unit Average at

Dimensions :

Unit: mm (inch)

CSB-manufactured

VRLA

batteries are UL-

recognized components

under UL1989.

CSB is also certified by
ISO 9001 and ISO 14001.

F.V/Time

5MIN

10MIN

15MIN

30MIN

60MIN

90MIN

2HR

3HR

5HR

8HR

10HR

20HR

1.60V

24.1

19.2

15.6

9.05

4.87

3.43

2.67

1.93

1.29

0.90

0.73

0.37

1.67V

23.1

18.3

14.9

8.80

4.72

3.33

2.60

1.89

1.28

0.88

0.72

0.36

1.70V

22.6

17.8

14.5

8.68

4.65

3.28

2.56

1.87

1.27

0.87

0.72

0.36

1.75V

21.8

17.0

13.9

8.45

4.52

3.20

2.50

1.82

1.23

0.86

0.70

0.36

1.80V

20.8

16.2

13.2

8.19

4.39

3.13

2.46

1.77

1.20

0.84

0.69

0.35

1.85V

19.6

15.3

12.5

7.87

4.27

3.04

2.39

1.74

1.16

0.82

0.67

0.34

F.V/Time

5MIN

10MIN

15MIN

30MIN

60MIN

90MIN

2HR

3HR

5HR

8HR

10HR

20HR

1.60V

258

210

173

103

54.0

38.1

29.8

22.0

15.3

10.5

8.78

4.46

1.67V

251

202

166

101

53.3

37.4

29.1

21.8

15.0

10.4

8.64

4.40

1.70V

247

199

162

99.3

52.9

37.1

28.8

21.6

14.9

10.2

8.57

4.36

1.75V

240

192

156

97.4

52.3

36.5

28.2

21.2

14.5

10.1

8.45

4.28

1.80V

231

185

151

95.0

51.5

35.8

27.7

20.8

14.1

10.0

8.29

4.20

1.85V

222

177

146

92.2

50.6

35.2

27.2

20.4

13.8

9.72

8.14

4.12

@25°C (77°F)

25°C (77°F)

25°C (77°F)

-15°C~50°C ( 5°F~122°F)

-15°C~40°C ( 5°F~104°F)

-15°C~40°C ( 5°F~104°F)

25°C±3°C ( 77°F±5°F)

RA1312

Ratings presented herein are subject to revision without notice. Please refer to www.csb-battery.com to confirm the latest version.

Width (W)

Overall Height (H)

Container height (h)

Length (L)

98.6±1.5 (3.88±0.06)

94.3±1 (3.71±0.04)

151±2 (5.94±0.08)

64.8±1 (2.55±0.04)

(http://www.csb-battery.com)

by TUV CERT according to ISO 9001,ISO 14001.

The system of manufacturer was certified
