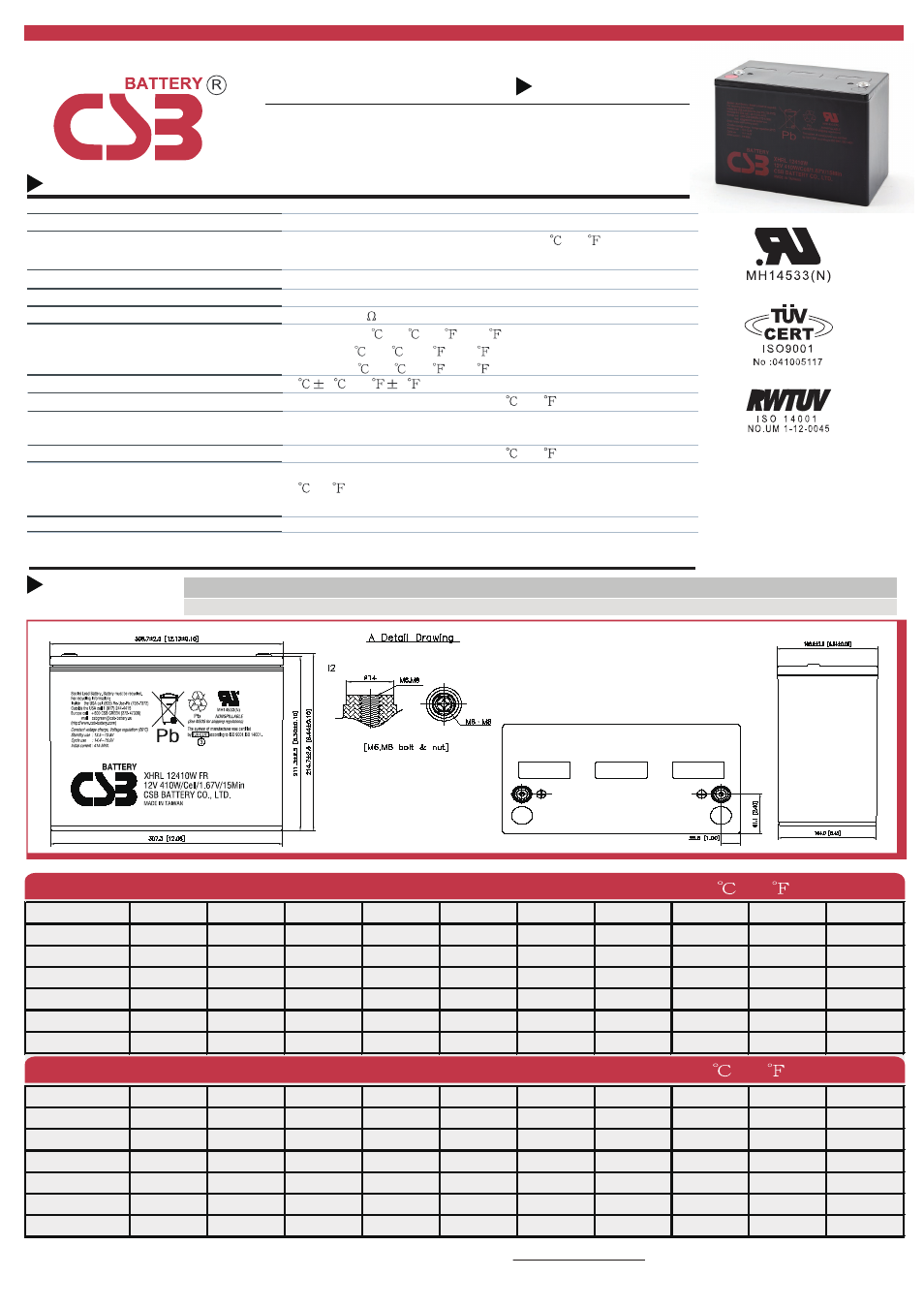

CSB Battery XHRL12410W - Manual

XHRL 12410W is specially designed for high efficient
discharge and long life application. Its characteristics are
high energy density , small footprint and high discharge
efficiency. It can be used for more than 260 cycles at 100%
discharge in cycle service, up to10 years in standby service.
Cells per unit
Voltage per unit
Capacity
Weight
Maximum Discharge Current
Internal Resistance Approx.
Operating Temperature Range
Nominal Operating Temperature Range
Float Charging Voltage
Recommended Maximum Charging
Current Limit
Equalization and Cycle Service
Self Discharge
Terminal
Container Material
6
12
410W @15 min-rate to 1.67V per cell @25
(77 )
Approx. 31 kg(68.34 lbs)
800A(5sec)
Approx. 4.0m
25 3 (77 5 )
13.5 to 13.8 VDC/unit Average at 25 (77 )
41 A
14.4 to 15.0 VDC/unit Average at 25 (77 )
CSB Batteries can be stored for more than 6 months at
25 (77 ). Please charge batteries before using. For
higher temperatures the time interval will be shorter.
I2-Thread lead alloy recessed terminal to accept M6/M8 bolt
Polypropylene(UL 94-HB) & Flammability resistance
of (UL 94-V0) can be available upon request.
Discharge: -20 ~50 (-4 ~122 )
Charge: -20 ~50 (-4 ~122 )
Storage: -15 ~40 (5 ~104 )
Constant Power Discharge Characteristics Unit:W (25 ,77 )
Constant Current Discharge Characteristics Unit:A (25 ,77 )
XHRL12410W
12V 410W
Specification
Powered by
Width (W)
Dimensions :
Unit: mm (inch)
Overall Height (H) Container height (h) Length (L)
214.7±2.5 (8.44±0.10) 211.3±2.5 (8.30±0.10) 308.7±2.5 (12.13±0.10) 168.9±2.0 (6.64±0.08)
F.V/Time 2MIN 4MIN 6MIN 8MIN 10MIN 15MIN 20MIN 30MIN 60MIN 90MIN
1.60V 546 447 372 319 279 212 169 121 68.8 48.6
1.67V 472 411 350 300 266 206 166 119 68.4 48.4
1.70V 435 378 339 294 258 202 162 118 67.9 48.1
1.75V 405 348 312 273 245 192 156 115 66.6 47.3
1.80V 373 331 285 249 226 177 146 108 64.9 46.2
1.85V 328 277 243 224 203 162 135 101 60.4 41.7
F.V/Time 2MIN 4MIN 6MIN 8MIN 10MIN 15MIN 20MIN 30MIN 60MIN 90MIN
1.60V 5,179 4,538 4,022 3,512 3,143 2,505 1,977 1,440 811 580
1.67V 4,702 4,177 3,806 3,369 3,016 2,462 1,950 1,412 809 575
1.70V 4,388 4,008 3,651 3,225 2,884 2,370 1,897 1,383 800 571
1.75V 4,095 3,792 3,503 3,052 2,735 2,264 1,820 1,355 787 560
1.80V 3,848 3,443 3,166 2,822 2,553 2,117 1,726 1,288 771 549
1.85V 3,135 2,930 2,776 2,544 2,298 1,922 1,597 1,202 716 519
CSB-manufactured
VRLA batteries are UL-
recognized components
under UL1989.
CSB is also certified by
ISO 9001 and ISO 14001.
RA1308
Ratings presented herein are subject to revision without notice. Please refer to www.csb-battery.com to confirm the latest version.
