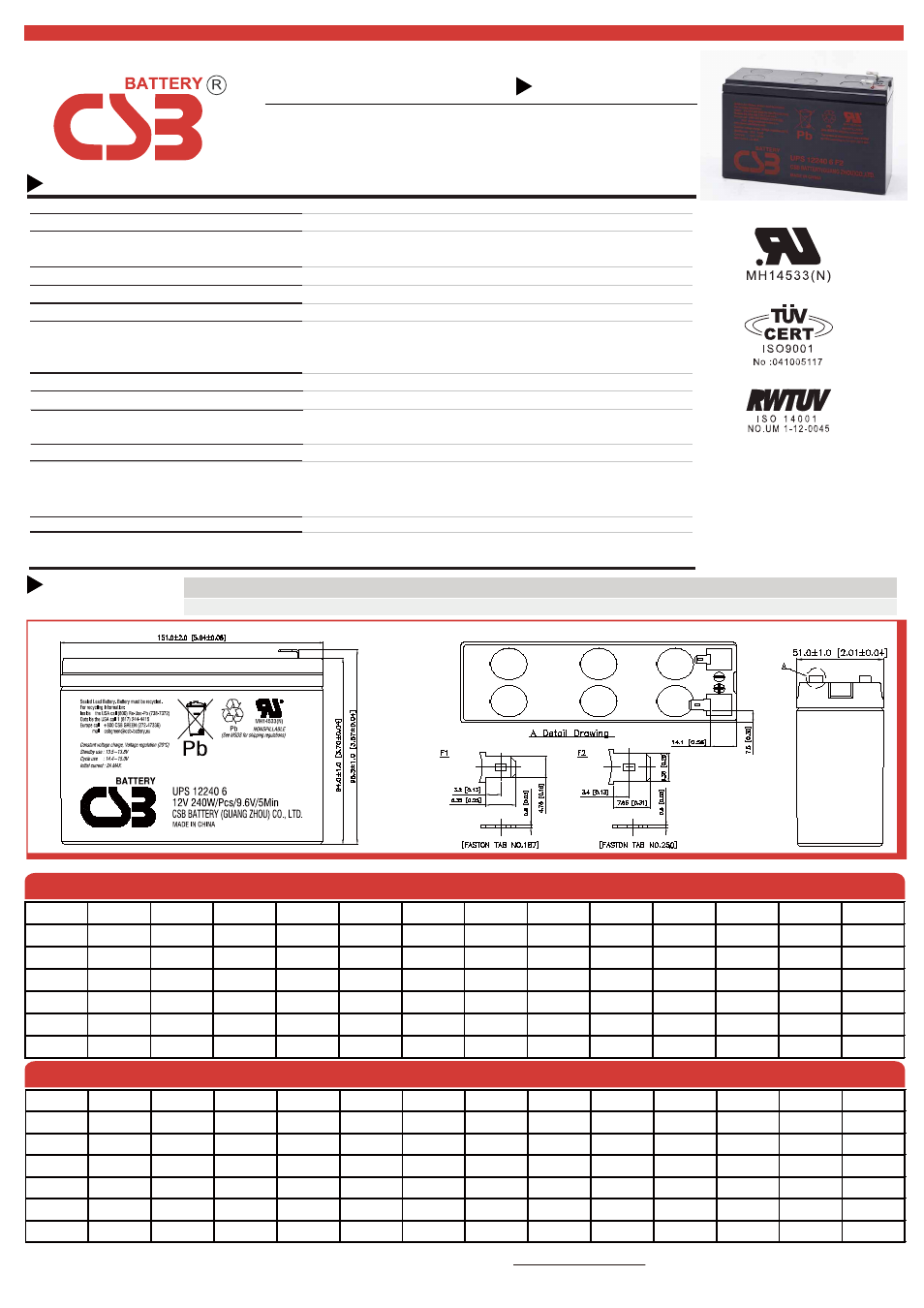

CSB Battery UPS122406 User Manual
Powered by

Cells Per Unit
6
Voltage Per Unit
12
Capacity
240W @ 5min-rate to Watt(1.60V)/pcs @25°C (77°F)
Weight
Approx. 1.45 kg(3.2 lbs)
Maximum Discharge Current
100/130A(5sec)
Internal Resistance
Approx. 32mΩ
Operating Temperature Range
Nominal Operating Temperature Range
Float Charging Voltage
13.5 to 13.8 VDC/unit Average at
Recommended Maximum Charging
2.0A
Current Limit
Equalization and Cycle Service
14.4 to 15.0 VDC/unit Average at
Self Discharge
CSB Batteries can be stored for more than 6 months at
Please charge batteries before using. For
higher temperatures the time interval will be shorter.
Terminal
Container Material
Discharge:
Charge:
Storage:
F1/F2-Faston Tab 180/250
ABS(UL 94-HB) & Flammability resistance of
(UL 94-V0) can be available upon request.
Constant Power Discharge Characteristics Unit:W (25°C,77°F)
Constant Current Discharge Characteristics Unit:A (25°C,77°F)
UPS12240 6
Specification
Powered by
UPS 12240 6 is specially designed for high efficient discharge
application. Its characteristics are high energy density, small
footprint and high discharge efficiency. It can be used for more
than 260 cycles at 100% discharge in cycle service, up to 5 years
in standby service.
Width (W)
Dimensions :
Unit: mm (inch)
Overall Height (H)
Container height (h)
Length (L)
98.3±1.0 (3.87±0.04)
94.0±1.0 (3.70±0.04)
151.0±2.0 (5.94±0.08) 51.0±1.0 (2.01±0.04)
CSB-manufactured
VRLA
batteries are UL-
recognized components
under UL1989.
CSB is also certified by
ISO 9001 and ISO 14001.
(http://www.csb-battery.com)
by URS according to ISO 9001,ISO 14001.
The system of manufacturer was certified
25°C (77°F)
25°C (77°F)
25°C (77°F).
-15°C~50°C ( 5°F~122°F)
-15°C~40°C ( 5°F~104°F)
-15°C~40°C ( 5°F~104°F)
25°C±3°C (77°F±5°F)
F.V/Time 2MIN
3MIN
4MIN
5MIN
6MIN
7MIN
8MIN
10MIN 15MIN 20MIN 30MIN 60MIN 90MIN
1.60V
42.4
32.6
27.2
23.6
20.6
18.3
16.1
13.5
9.89
7.93
5.80
3.35
2.41
1.67V
37.4
30.3
26.0
22.7
20.0
17.7
15.9
13.3
9.77
7.88
5.77
3.34
2.40
1.70V
35.2
29.1
25.2
22.0
19.7
17.4
15.6
13.2
9.67
7.86
5.75
3.31
2.38
1.75V
31.4
26.7
23.5
20.8
18.5
16.6
14.9
12.8
9.57
7.73
5.69
3.28
2.36
1.80V
27.7
24.4
21.3
19.1
16.9
15.2
14.0
12.1
9.22
7.48
5.55
3.22
2.32
1.85V
24.0
21.0
19.0
16.7
15.0
13.7
12.6
11.0
8.53
6.96
5.28
3.08
2.23
F.V/Time 2MIN
3MIN
4MIN
5MIN
6MIN
7MIN
8MIN
10MIN
15MIN
20MIN
30MIN
60MIN
90MIN
1.60V
383
321
275
240
213
192
177
151
112.0
90.1
66.1
38.5
28.1
1.67V
362
306
264
233
208
189
174
149
111.0
89.7
65.7
38.4
28.0
1.70V
350
297
258
228
205
187
171
148
110.0
89.4
65.6
38.3
27.9
1.75V
324
277
243
217
196
180
166
144
109.0
88.1
65.1
38.1
27.8
1.80V
296
254
226
201
184
170
156
136
105.0
85.5
63.7
37.5
27.4
1.85V
258
228
203
184
170
154
143
127
97.8
79.7
61.3
36.1
26.4
RA1308
Ratings presented herein are subject to revision without notice. Please refer to www.csb-battery.com to confirm the latest version.
