Chapter 2: Printer Installation

Setting up the Advantage DLX Printer

Connecting the Interface and Power Cables

IMPORTANT!

PRIOR TO CONNECTING THE INTERFACE AND POWER CABLE TO THE

PRINTER, MAKE SURE THAT THE PRINTER IS TURNED OFF.

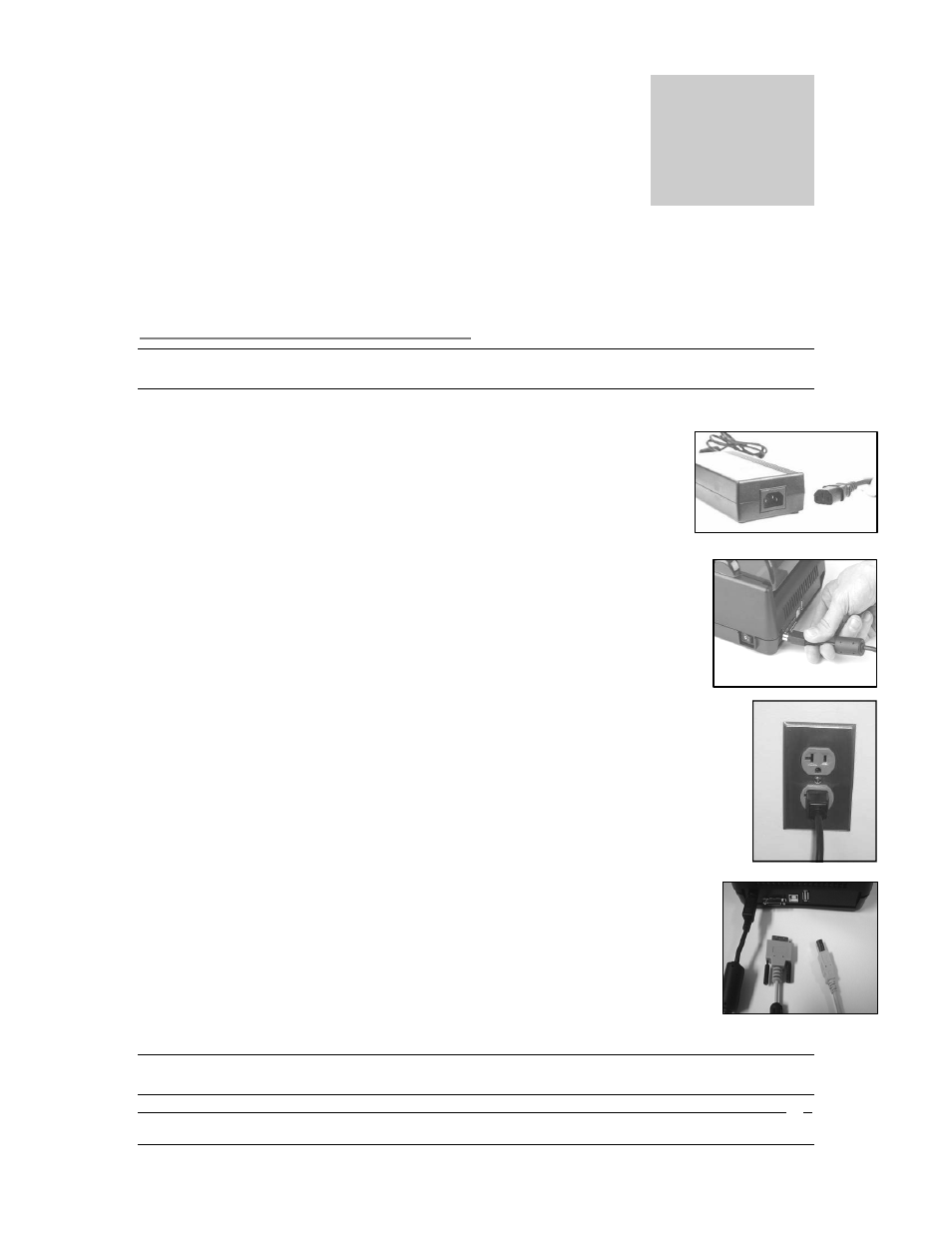

1. Connect the power cable to the AC adapter.

2. Connect the AC adapter to the power connector on the

printer.

3. Plug the power cable into an AC outlet.

4. Connect the interface cable to the rear of the printer. For

Serial or Parallel cables, securely fasten the interface
connector screws.

5. Test the Power by turning the power ON. The POWER

LED on the printer will turn green.

NOTE: IF THE POWER LED DOES NOT TURN GREEN REPEAT STEPS 1-5 OR REFERENCE
THE TROUBLESHOOTING CHART (CHAPTER 7).
