Configuring the printer

The configuration menu allows you to select functions or change various settings for the printer. Instructions printed on the
receipt guide you through the processes.

Caution: Be extremely careful changing any of the printer settings to avoid changing other settings that might affect the

performance of the printer.

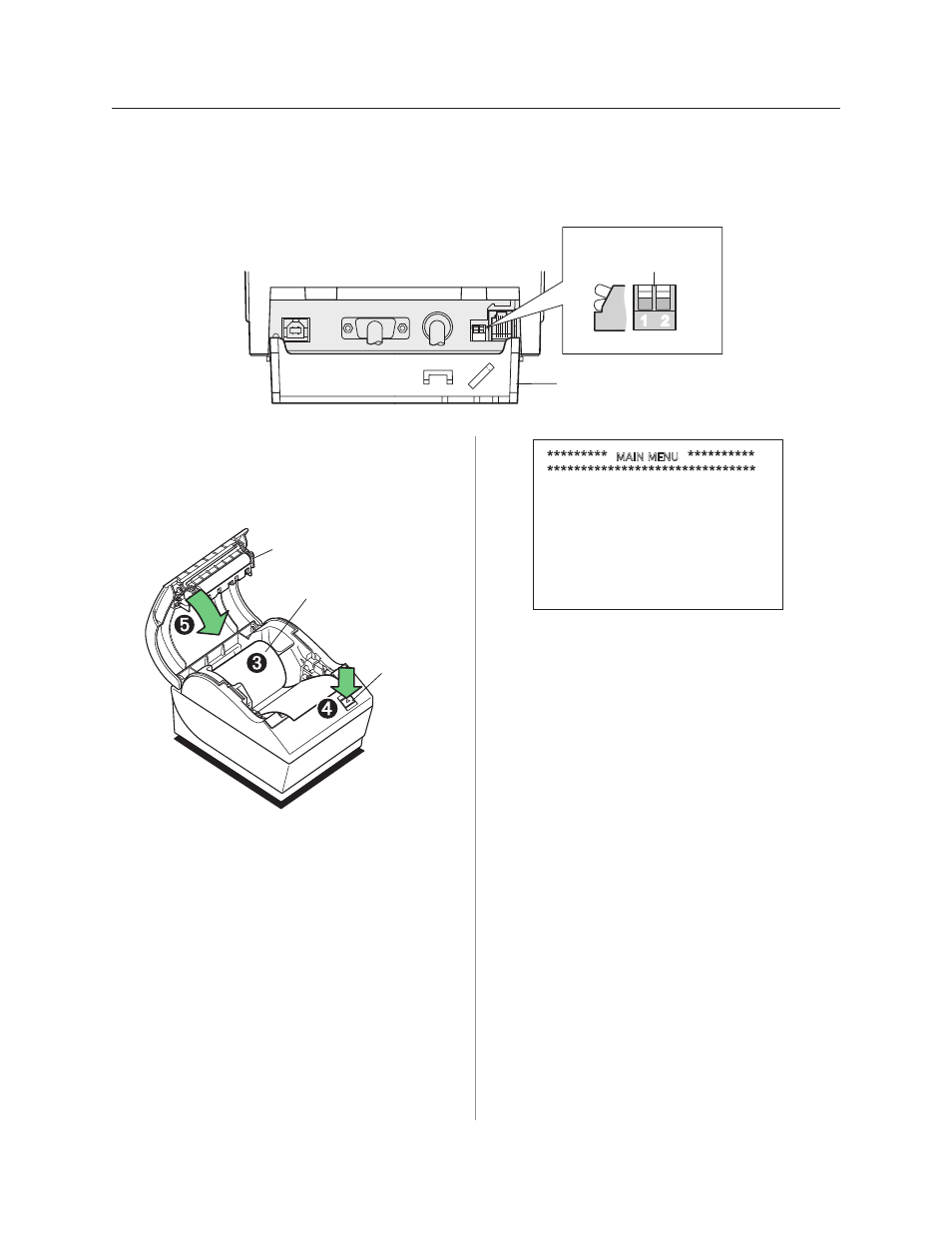

Turn power off to printer.

Open the connector cover.

Set DIP Switch 1 to ON position (down). DIP Switch 2

should be in the OFF position (up).

Make sure receipt paper is loaded in the printer before

proceeding. (For loading instructions, see the A799

User Guide) Make sure cover is closed.

Apply power to printer and immediately press and hold

the paper feed button (4) until the configuration printout
begins.
• The printer beeps, prints the diagnostics form and

the configuration main menu.

• The printer pauses and waits for a main menu

selection to be made; short clicks are used, except
when answering “Yes” or validating selection (see
sample printout).

To communicate with the printer, you will press the

paper feed button using either short or long clicks.
Use a long click (more than one second) for “yes” and
a short click for a “no.” Follow the printed instructions
to make selections.

Continue through your menu selections until you are

asked, “Save New Parameters?”. Select “Yes” or “No.”
a

If you wish to save, select “Yes,” then return DIP

switch 1 to the OFF Postion (up).

. Open the receipt cover.

Press and hold the paper feed button while closing

the receipt cover.

• The diagnostic printout verifies your new

settings.

If you would like to continue configuring the

printer, select “No.” The printer then returns to the
configuration menu, where you can set parameters
again.

��

��

��

� �

��

� ��

��

� ��

��

� ��

��

� ��

��

� ��

��

� ��

��

� ��

��

� ��

��

� ��

��

� ��

��

� ��

��

� ��

��

� �

��

� ��

��

� ��

��

� ��

��

� ��

��

� ��

��

� ��

��

� ��

��

� ��

��

� ��

��

� ��

��

� ��

��

� ��

��

� �

��

� �

��

� ��

��

� ��

��

� ��

��

� ��

��

�

��

�

��

� ��

��

� ��

��

� ��

��

�

��
