22

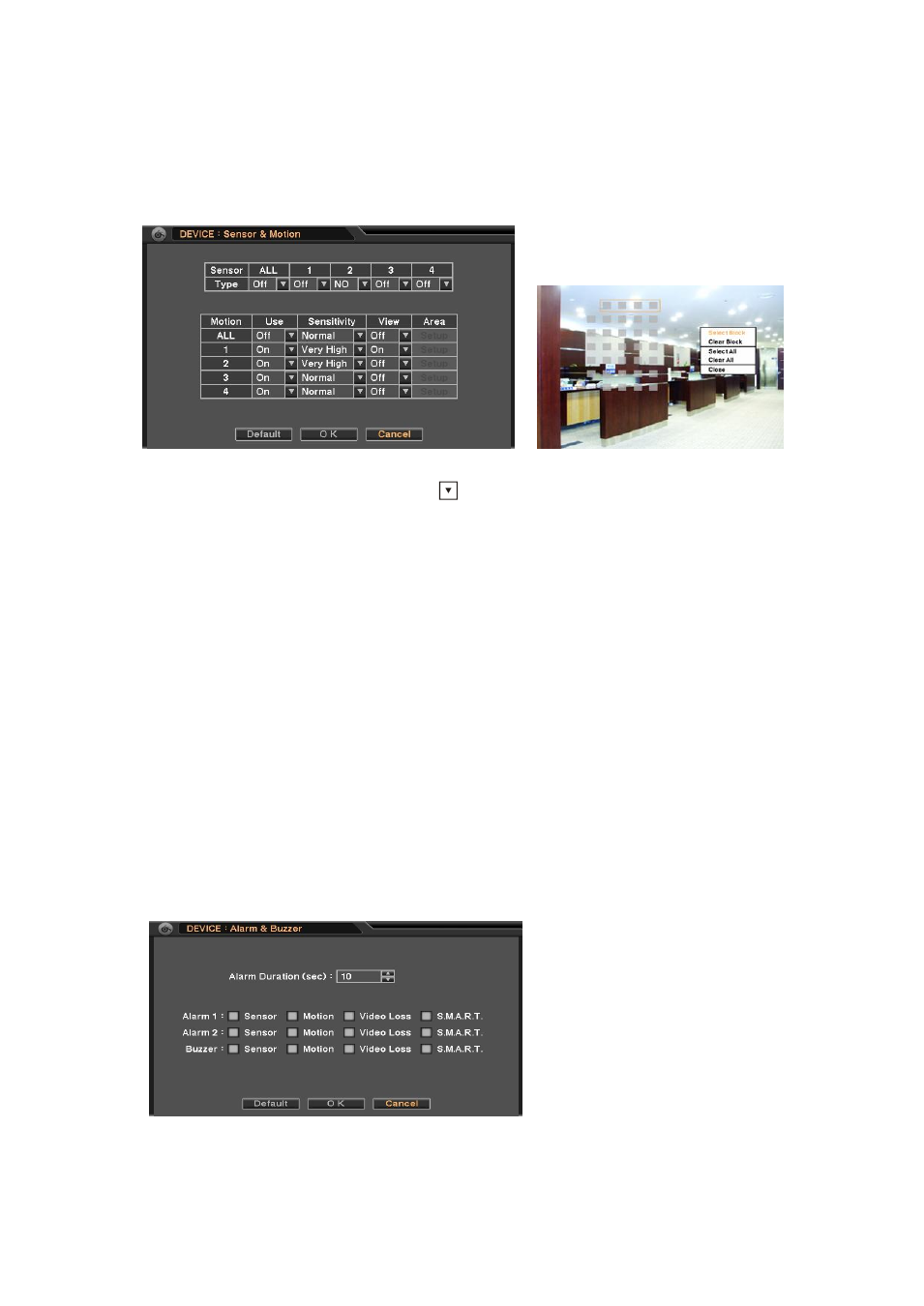

3-2-3. MENU > DEVICE > Sensor & Motion
In the Sensor & Motion, Sensor Type and Motion Detection options can be selected.
 Sensor Type: Select Sensor Type using button. NC(Normally Closed), NO(Normally Opened)
The system provides Motion Detection function. Set Motion Detection using below option:
 Use: Turn Motion Detection On or Off
 Sensitivity: Set system‟s sensitivity of motion
 View: Display selected Motion Area on the monitor
 Area: Define the area where motion to be detected
Highlight and press „Setup‟ under area to set the area motion to be detected. Motion setup screen will
appear. The blocks indicate the area is defined for motion detection. Use mouse or enter/Channel (1~4)
buttons to select/unselect the blocks. Motion contextual menu will appear by clicking right mouse button.
 Select Block: Select four blocks at a time
 Clear Block: Unselect four blocks at a time
 Select All: Select all blocks
 Clear All: Unselect all blocks
3-2-4. MENU > DEVICE > Alarm & Buzzer
In the Alarm & Buzzer, Alarm Duration, Alarm Outs and Buzzer options can be selected.
DVR has two alarm outs which can be associated with all or selected event types.
