2. Basic Operation

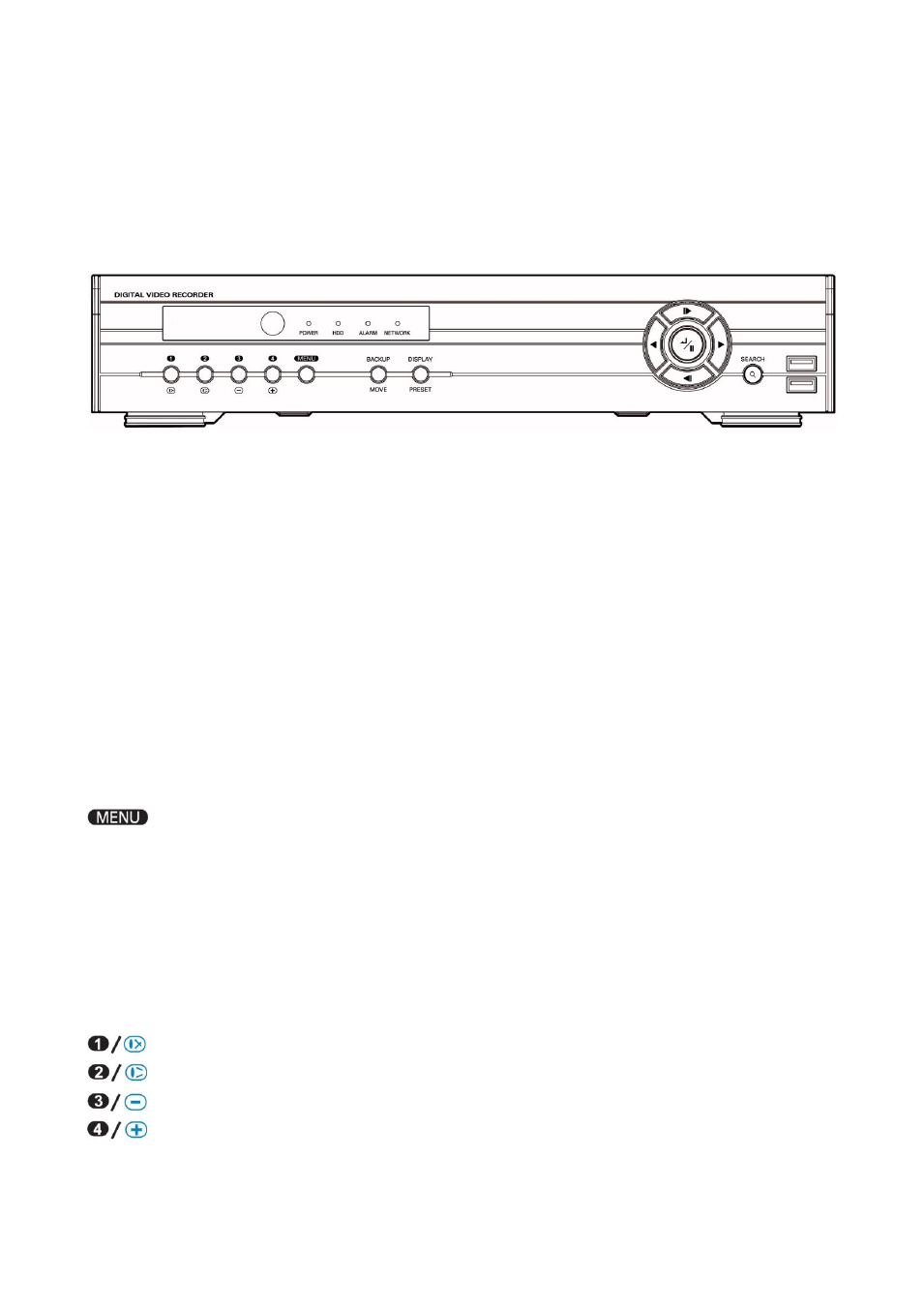

2-1. Front Panel
 USB Port : USB ports on the front panel provides following functions:
i. Backup files using USB Flash Memory
ii. Control the system using an USB Mouse
iii. Save/Load the system settings using an USB Flash Memory.
 LED Indication
Power LED: LED will be on when power is supplied to the system
HDD LED: LED will be on when data is being recorded or searched in HDD.
NETWORK LED: LED will be on when the system is being connected via network.
ALARM LED: LED will be on when the alarm is being activated.
 Front panel buttons
: Press the „Menu‟ button to enter/exit the setup screen.
SEARCH : Press the „SEARCH‟ button to enter playback mode.
Playback menu will be popped up if you press „SEARCH‟ button again at playback mode.
BACKUP/MOVE : Press the „Backup/Move‟ button to enter backup menu. In addition, the button can be also
used to display menu for loading PTZ presets under PTZ mode.
DISPLAY/PRESET : Press the „Display/Preset‟ button to change display mode from Quad to Sequence or
Sequence to Quad. In addition the button can be also used to display menu for saving
PTZ preset under PTZ mode.
: Display Camera no.1 / Focus on near distance under PTZ mode.
: Display Camera no.2 / Focus on far distance under PTZ mode.
: Display Camera no.3 / Zoom Out under PTZ mode.
: Display Camera no.4 / Zoom In under PTZ mode.
