12
: Move forward by one frame under Pause. Use this button to move upward when you set the menu.
: Move backward by one frame under Pause. Use this button to move downward when you set the menu.
: Play the video backward. Press the button repeatedly to increase play speed up to 32 times faster than
usual (Sequence: 1, 2, 4, 8, 16, 32 times). Use this button to move left when you set the menu.
: Plays the video forward. Press the button repeatedly to increase play speed up to 32 times faster than
usual (Sequence: 1, 2, 4, 8, 16, 32 times). Use this button to move right when you set the menu.
: Press the button to complete the settings. Under playback mode, the button can be used to pause
the playback screen.

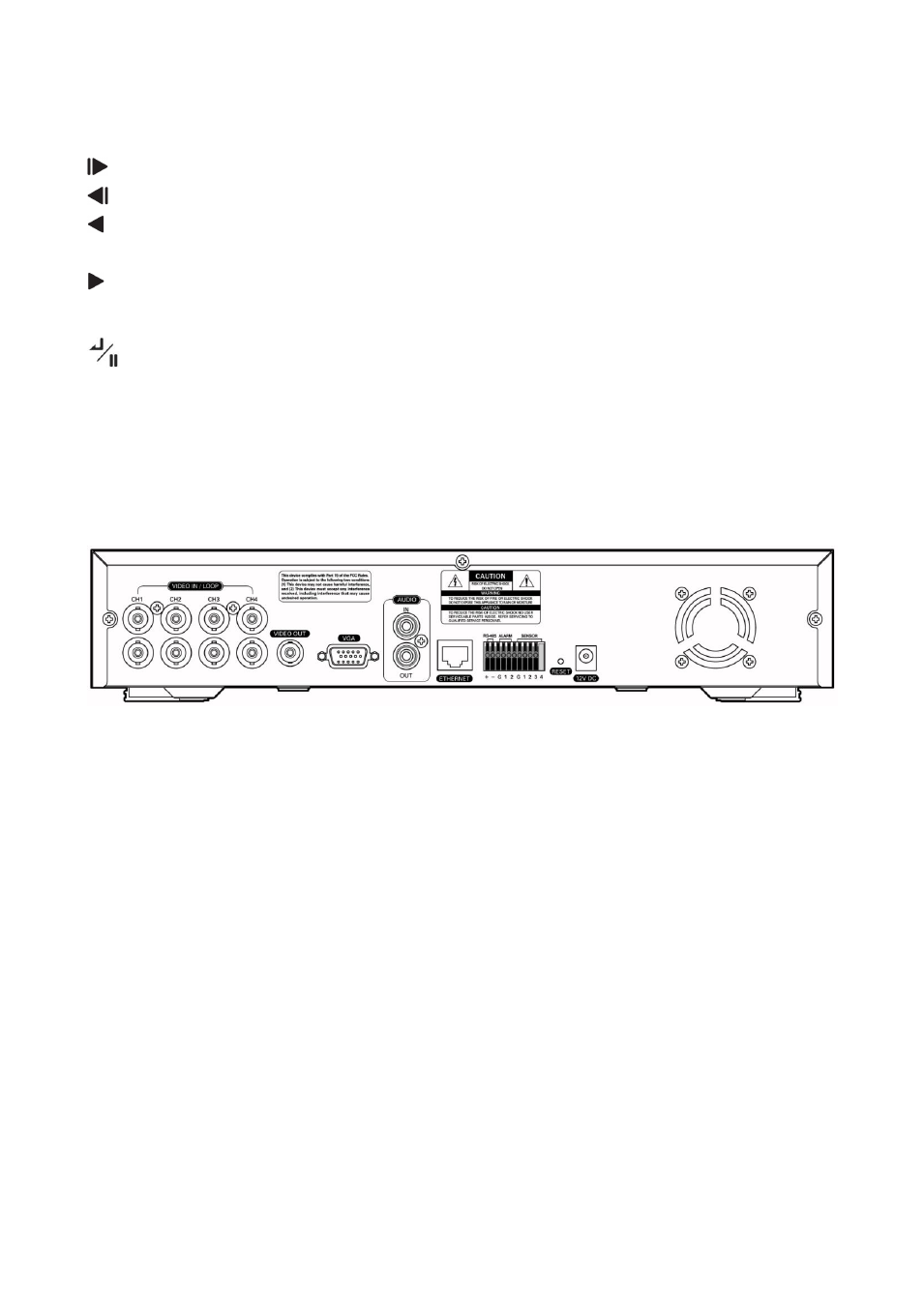

2-2. Rear Panel
The rear panel of the DVR comprises the following:
 Video Input port: Four connectors for video input (NTSC/PAL).
 Video Loop Through: Four connector for video loop out.
 Video Out: Composite video output in NTSC/PAL format.
 VGA Out : Connector for VGA monitor.
 Audio In / Audio Out: RCA (line level).
 Network : RJ-45 connector for LAN connection
 Terminal Blocks
- RS-485: For control the PTZ cameras and external control keyboard.
- Alarm Out: This terminal blocks connect external alarms to the DVR. (5V TTL OUTPUT)
- Sensor In: This terminal connects external sensors to the DVR. (5V TTL INPUT)
 Reset: This reset switch will return all the settings to the original factory settings.
 DC Power Jack : Apply 12V DC using the DC adaptor supplied with equipment(DC12V / 3.33A)
