XNET Network Dome Camera User’s Guide
y Reset
There is a factory default switch provided for returning the network camera to factory
default state. Press the switch using tools with sharp tip for a few seconds while power is
applied.

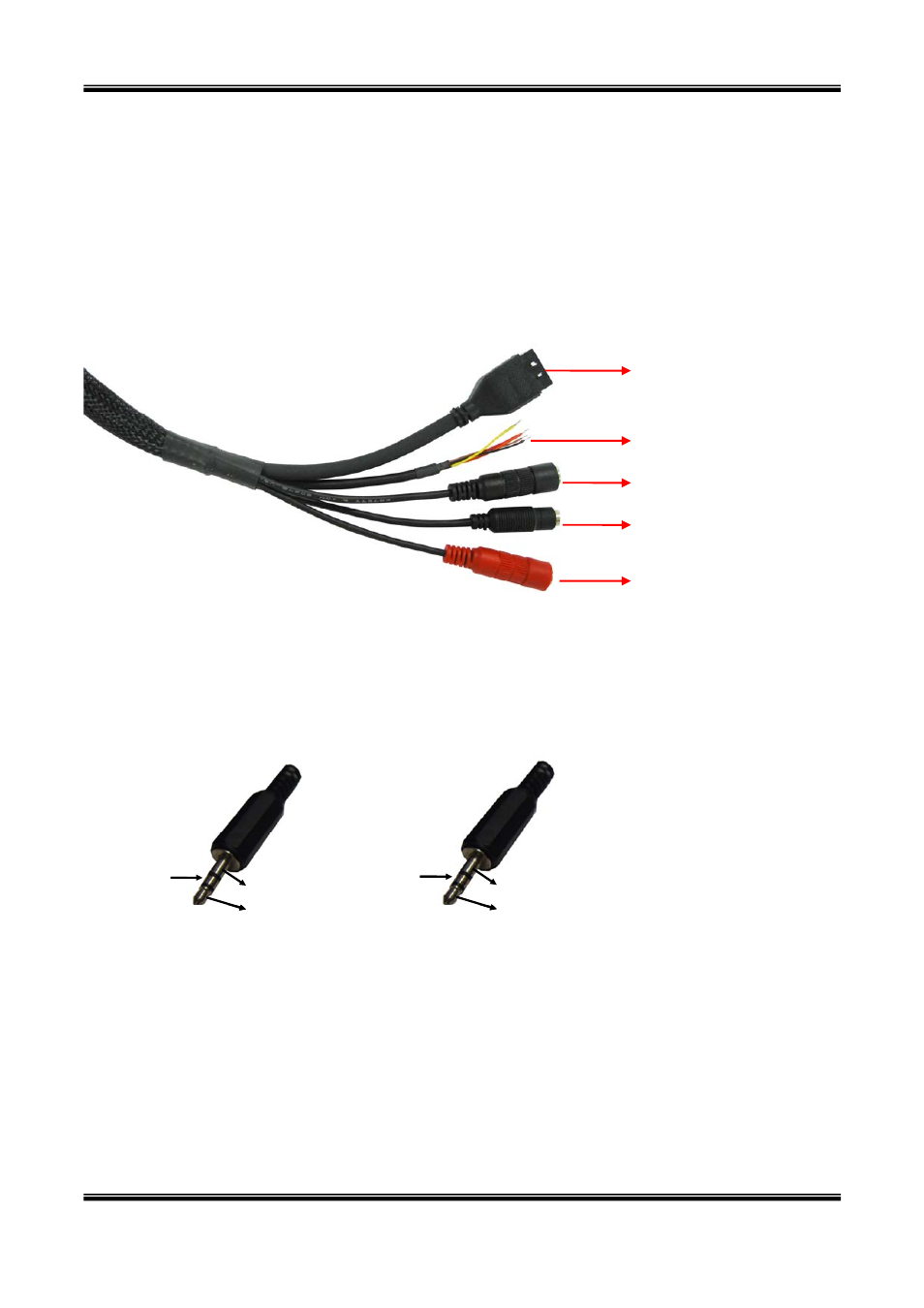

2.3.2. Bottom view and Cable Harness
100BaseT(RJ45)
Sensor In/Relay Out
Line Out
DC Power
MIC/Line In
Figure 2-3. XNET Cable
y MIC /LINE In
Connect external audio source or microphones here.
Use a standard stereo earphone jack for the connections.
Audio In
Ground
Not used
Audio In
Ground
Not used
Audio out
Ground
Not used
Audio out
Ground
Not used
Figure 2-4. Pin assignment of the plug for MIC/LINE In (left) and
LINE OUT (right)
y Line Out
Connect to speakers with built in amplifier, or PA system. Audio from the remote site is
output through Line out in bi-directional audio mode. Use a standard stereo jack for the
connection.
