5.6. Alarm Device Setup
Test the alarm output and describe the condition of alarm annunciation.

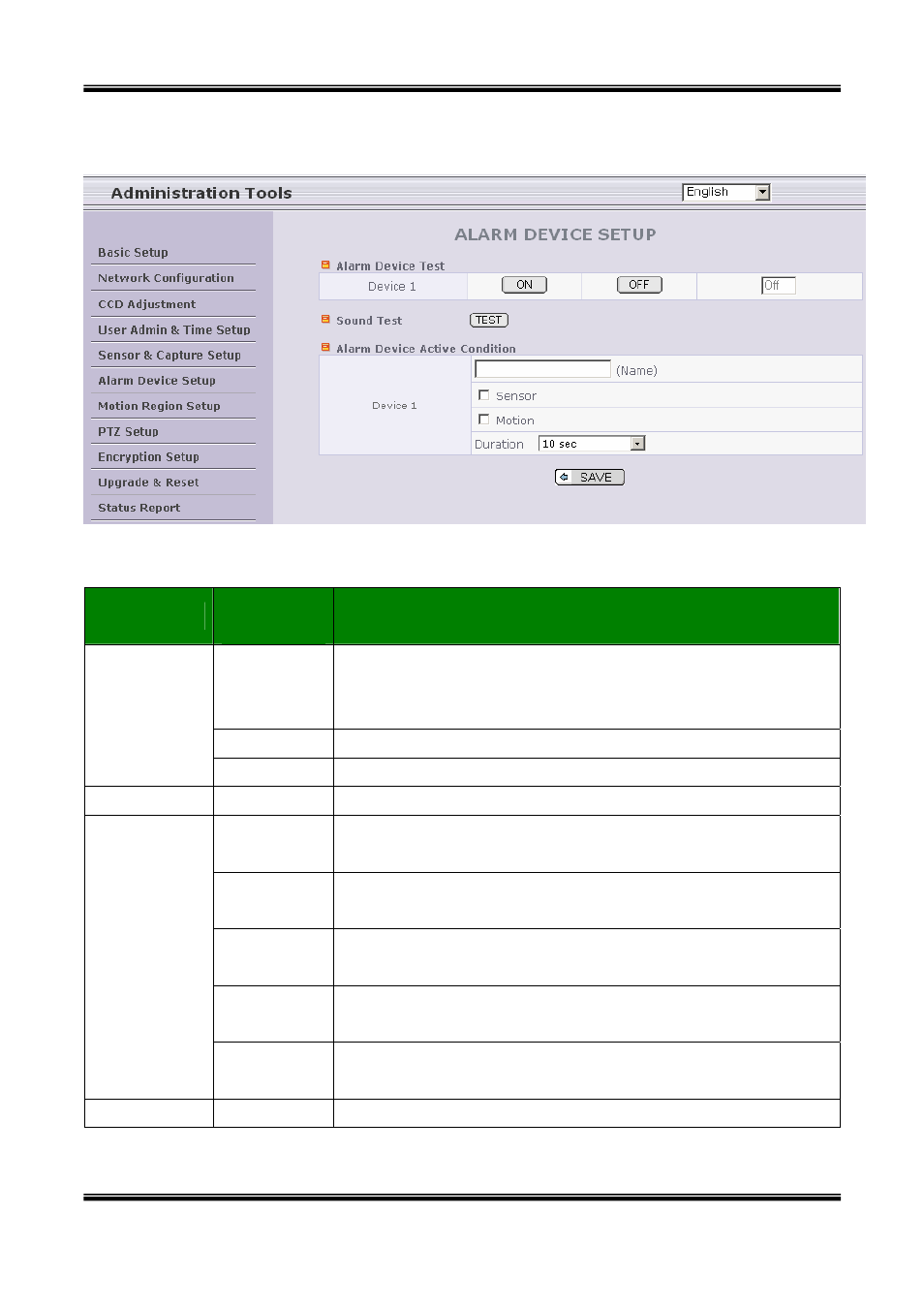

Figure 5-8. Alarm Output Setup
Field/Button
Sub Field
/Button
Description
Test alarm devices. Click on On/Off for testing.
Small box with white background indicates the status of the
relay by On/Off.
ON On the alarm output (close the relay contact)
Alarm Device
Test
OFF Off the alarm output (Open the relay contact)
Sound Test Used for audio/voice testing
Setup the condition of activating alarm device. Select sensor
or motion detection as the condition.
Logical name of the alarm device can be input into the box at
the left.
Name
Check at the box at the left of to allow alarm generation upon
sensor input.
Sensor
Check at the box at the left to allow alarm generation upon
Motion detection
Motion
Alarm Device
Active
Condition
Duration
Set the duration of Alarm annunciation.
10/30 sec, 1/2/5/10/30 min, 1 hour.
SAVE Save the setup parameters.
