U LTRA ISC S ERIES S LIM C ELL T RANSDUCER MAN-70434-0 R EV AA
P AGE 28 OF 42
4.2.4 S ELECTING A M OUNTING L OCATION
Select the mounting location for the transducer keeping the following points in mind:
 The transducer can be mounted to either inside or outside of the machine frame.
 The tension-sensing roll must not be mounted where the web wrap angle can vary, or the
transducer will not interpret the tension properly as the angle varies. If a variance in the
wrap angle occurs, it is sensed by the transducer as a tension change and the change is
indicated on the tension indicator. In cases where it is impossible to mount the transducer
where the wrap angle does not vary, the change in indicated tension that results should be
calculated and if small, can be disregarded.

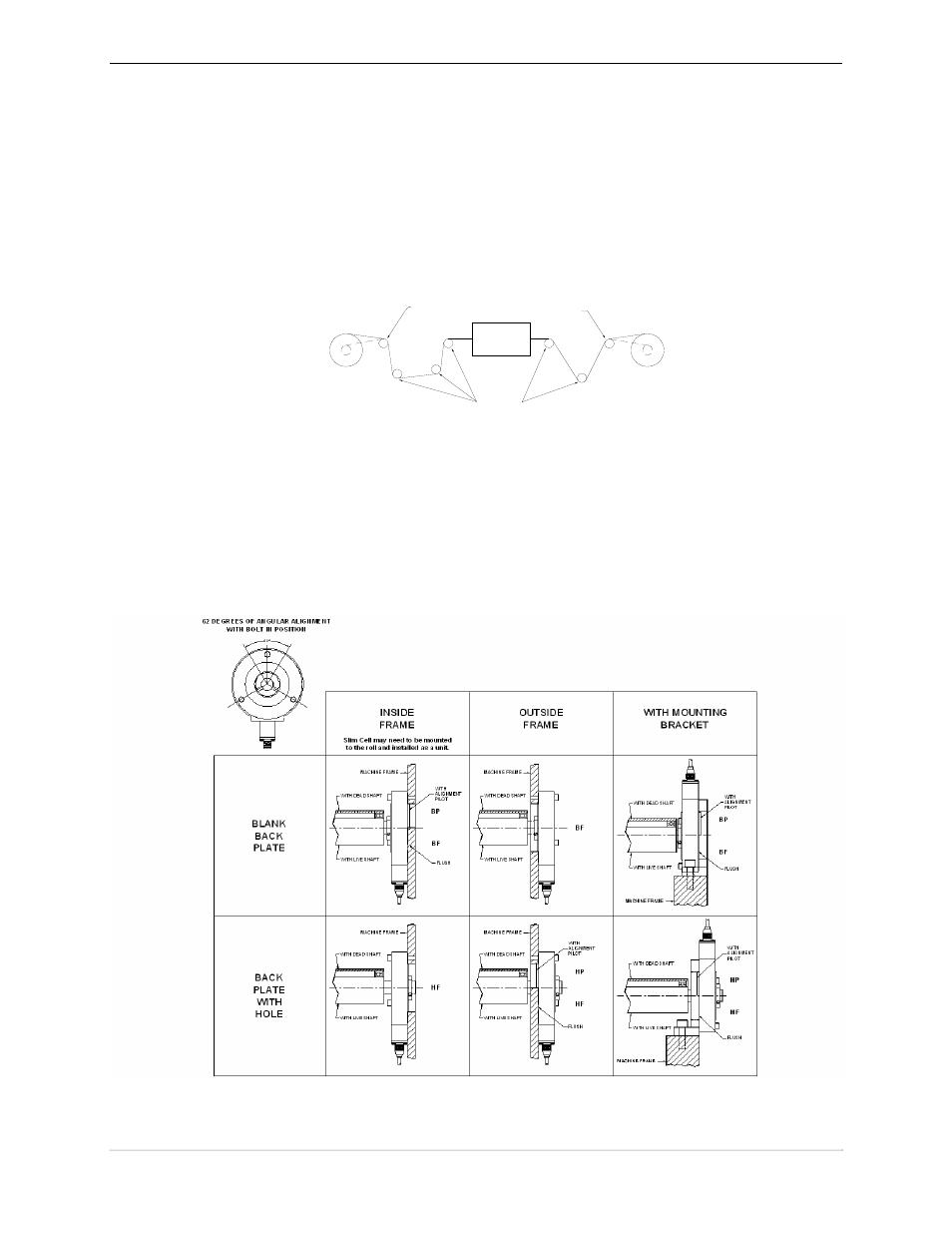

Figure 9 Example of Varying Wrap Angles
4.2.5 D ETERMINE A M OUNTING S TYLE
The Ultra ISC Slim Cell Transducer can be mounted in several different ways (Figure 10). When
choosing a mounting style, evaluate your options by taking the following points into consideration:
 Safety
 Machine Frame orientation
 Ease of Assembly
Figure 10- Slim Cell Transducer Mounting Styles
WRAP VARIES WRAP VARIES
PROCESS
OK FOR TENSION SENSING
