The Ultra Series ISC Slim Cell Tension Transducer (see Figure 3) consists of a housing that
contains the amplifier and power supply boards that are coupled directly to an “Ultra” type load
cell. There is an M12 connector to send amplified transducer signals into a tension controller,
PLC, PAC, drive or local I/O. This housing has two access holes for gain and zero potentiometer
adjustments if necessary.

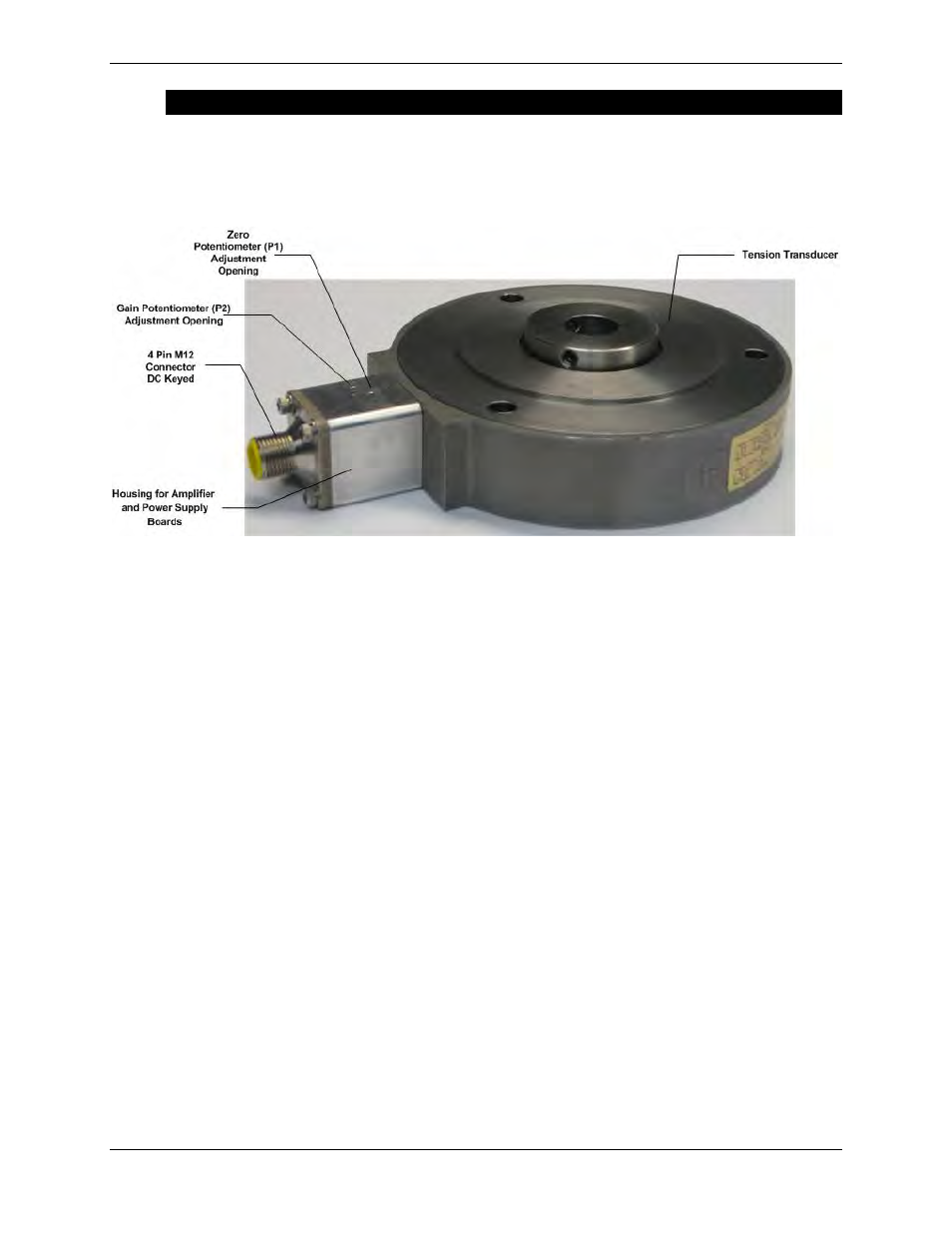

Figure 3 Ultra Series ISC Slim Cell Tension Transducer
