27

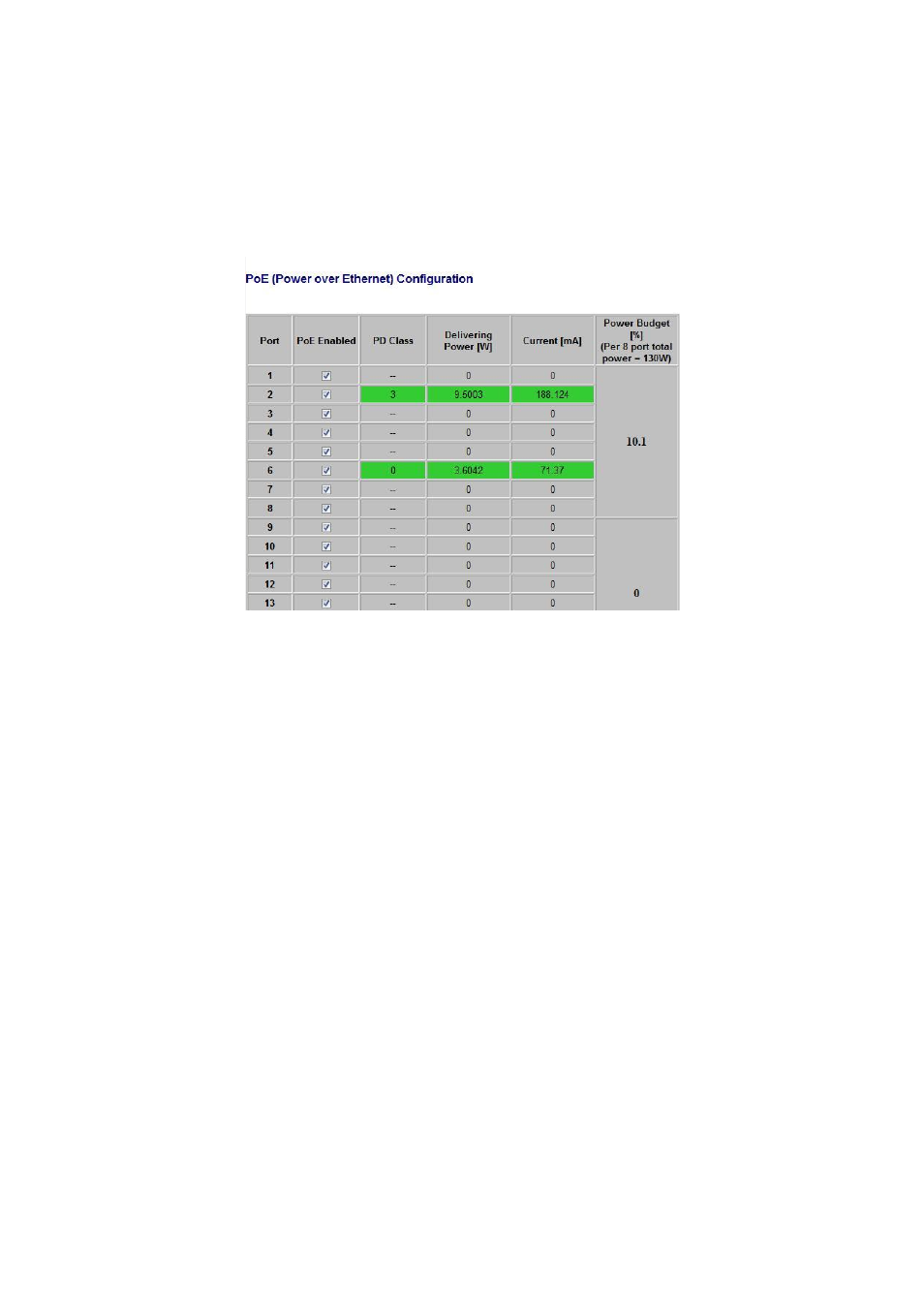

 PD Class: Detect the class of PD.
 Delivering Power (W): Output power from the switch to the PD.
 Current (mA): The status of the port current.
 Power Budget [%] ( Per 8 port total power = 130W): You can see the percentage change on
this screen.
The green shows the status of the connected PD. To protect the system and improve product
life, lower than 80% Power Budget is suggested.
4.1.13 Rate Limit Configuration
Type of Port: You can define the certain port as Policer and Shaper before you set up the rate
limit.
No Limit: This drop-down menu allows you to specify that the selected port will have no
bandwidth limit.
Rate (kbps): This drop-down menu also allows you to select the data rate in kbits per second
for the selected port. The value is between 128 kbps and 3968 kbps.
