Cashco 1164 User Manual
Page 7
IOM-1164
7

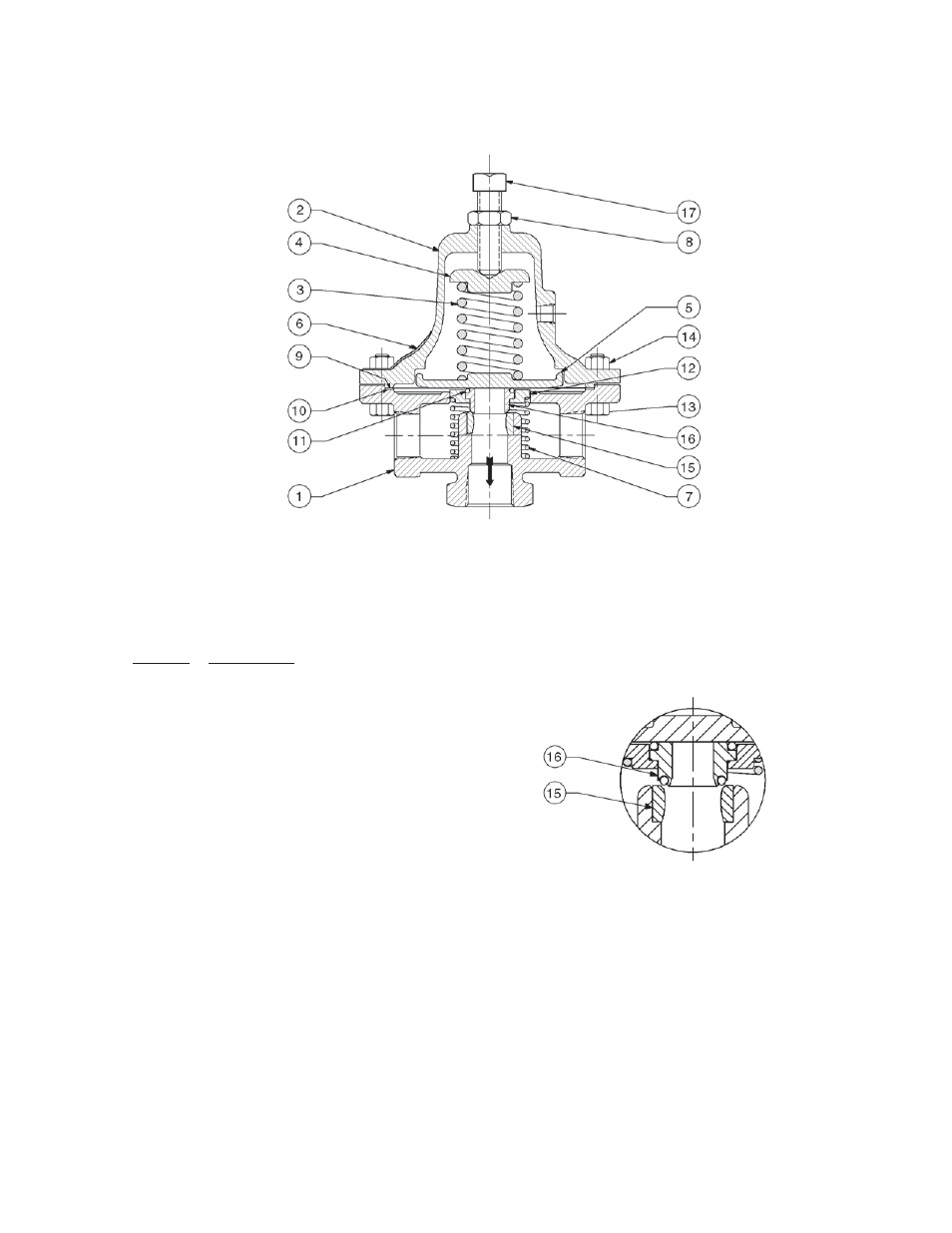

Figure 1
Basic Model 1164
Metal Seat Construction
Figure 2
Composition Seat
I
Item
No.
Description
1
Body
2
Spring
Chamber
3
Range
Spring
4
Spring
Button
5
Pressure
Plate
6
Name
Plate
7
Spring
8
Adjusting Screw Lock Nut
9
Diaphragm
10
Diaphragm
Gasket
11
O-Ring
12
Valve
Guide
13
Cap Screw (Flange Bolting)
14
Nut (Flange Bolting)
15
Valve
Seat
16
Valve Plug or Valve Plug Subassembly
17
Adjusting
Screw
