STAGE 1
CIVIL & MECHANICAL SECTION
1.1- Basic Hinge Geometry
BEFORE BEGINNING YOUR INSTALLATION OF YOUR ATI SYSTEM, CHECK THE
FOLLOWING:
* YOUR GATE PIERS OR POSTS ARE SUFFICIENTLY STRONG ENOUGH
TO SUPPORT THE GATES AND OPERATORS AND THE GATES SWING
FREELY AND THERE IS NO FRICTION BETWEEN THE MOVING PARTS.
* MEASUREMENT C MUST NOT BE GREATER THAN THE VALUE SHOWN
BELOW. IF THIS IS THE CASE, IT IS NECESSARY TO MODIFY THE
PILLAR SO THAT THIS MEASUREMENT CORRESPONDS.

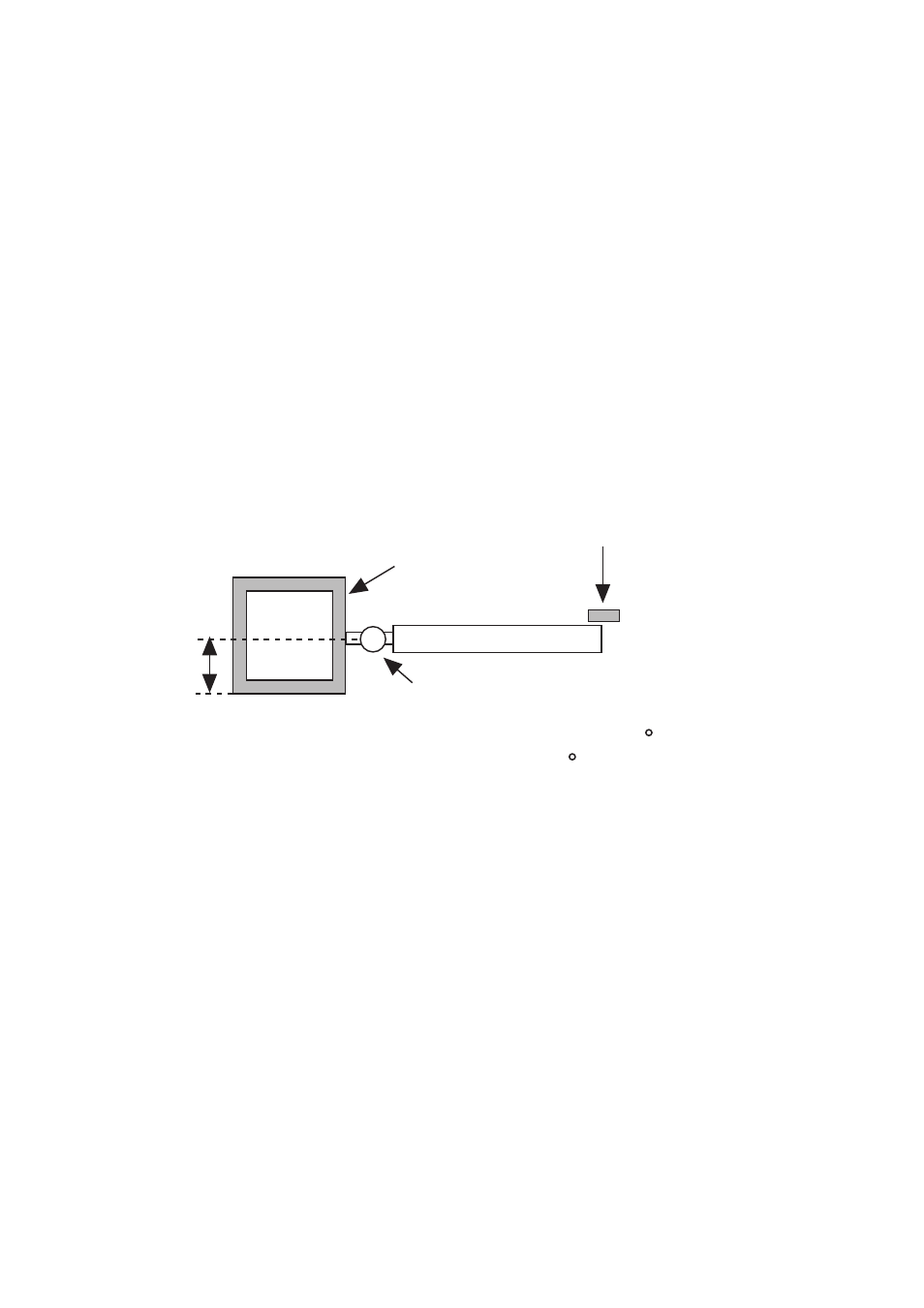

Fig 1
C
PILLAR
CLAPPING
BLOCK
HINGE
* ENSURE THAT THE CLAPPING BLOCK IS SECURELY ATTACHED TO THE PILLAR
OR POST.
Dimension C must be no greater than 120mm for 90 opening and
no greater than 70mm for a 130 opening.
