Fig 18
Fig 19
3. SELECT DIPSWITCHES 1 & 2 OFF FOR
COMMISSIONING
4. ENSURE HARD WIRE LINK IS FITTED
BETWEEN TERMINALS 1 & 2 AND
2 & C1
STAGE 3
COMMISSIONING THE CONTROL PANEL

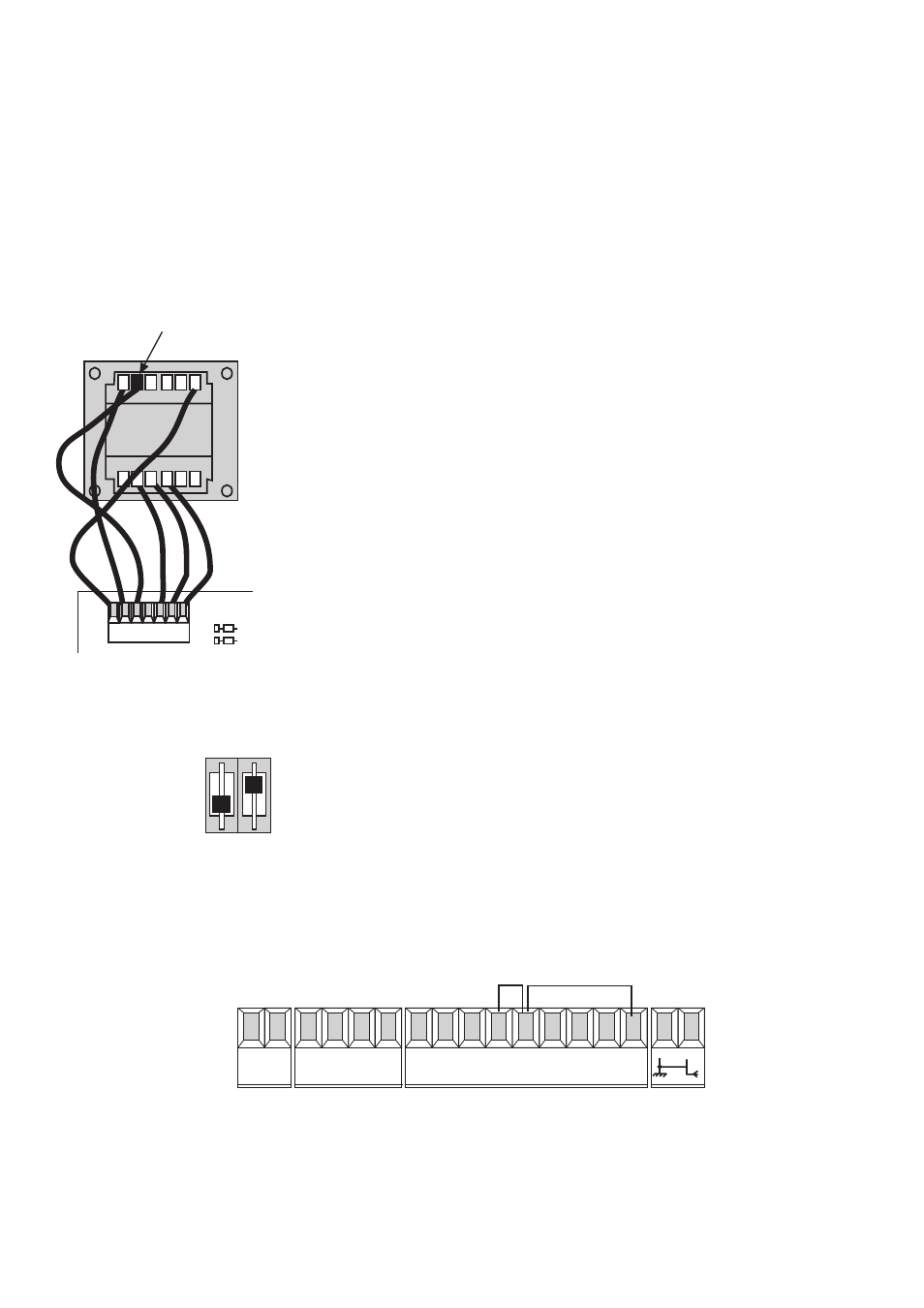

3.1 - Initial Wiring & Control Panel Setup
1. CONNECT POWER TERMINALS L1 - L2
AND A SUITABLE EARTH (L2 BEING LIVE!)
2. SELECT THE MOTOR POWER SETTING ON
THE TRANSFORMER TO LEVEL 1 FOR
COMMISSIONING
Fig 17
17
L1 L2 U V W E1 ES 10 11 1 2 3 5 7 C1
ON
OFF
1
1
