18
3.2 - Opening & Closing the Gate
2. ONCE YOU HAVE PROVED THE
MOTOR DIRECTION USE
TERMINALS 2 & 7 TO OPEN AND
CLOSE THE GATES WITH A
TRAILING WIRE ONCE AGAIN INTO
TERMINAL 2, MOMENTARILY
TOUCHING TERMINAL 7.
1. MOMENTARILY PULSE TERMINALS
2 & 3 WITH A PIECE OF WIRE
TRAILING FROM TERMINAL 2 AND
MOMENTARILY TOUCHING
TERMINAL 3.
THE GATE SHOULD START TO
OPEN. IF THE MOTOR STARTS TO
CLOSE TURN THE POWER OFF TO
THE CONTROL PANEL AND CHANGE
AROUND X-Y (MOTOR 2) TO
CHANGE THE MOTOR DIRECTION.

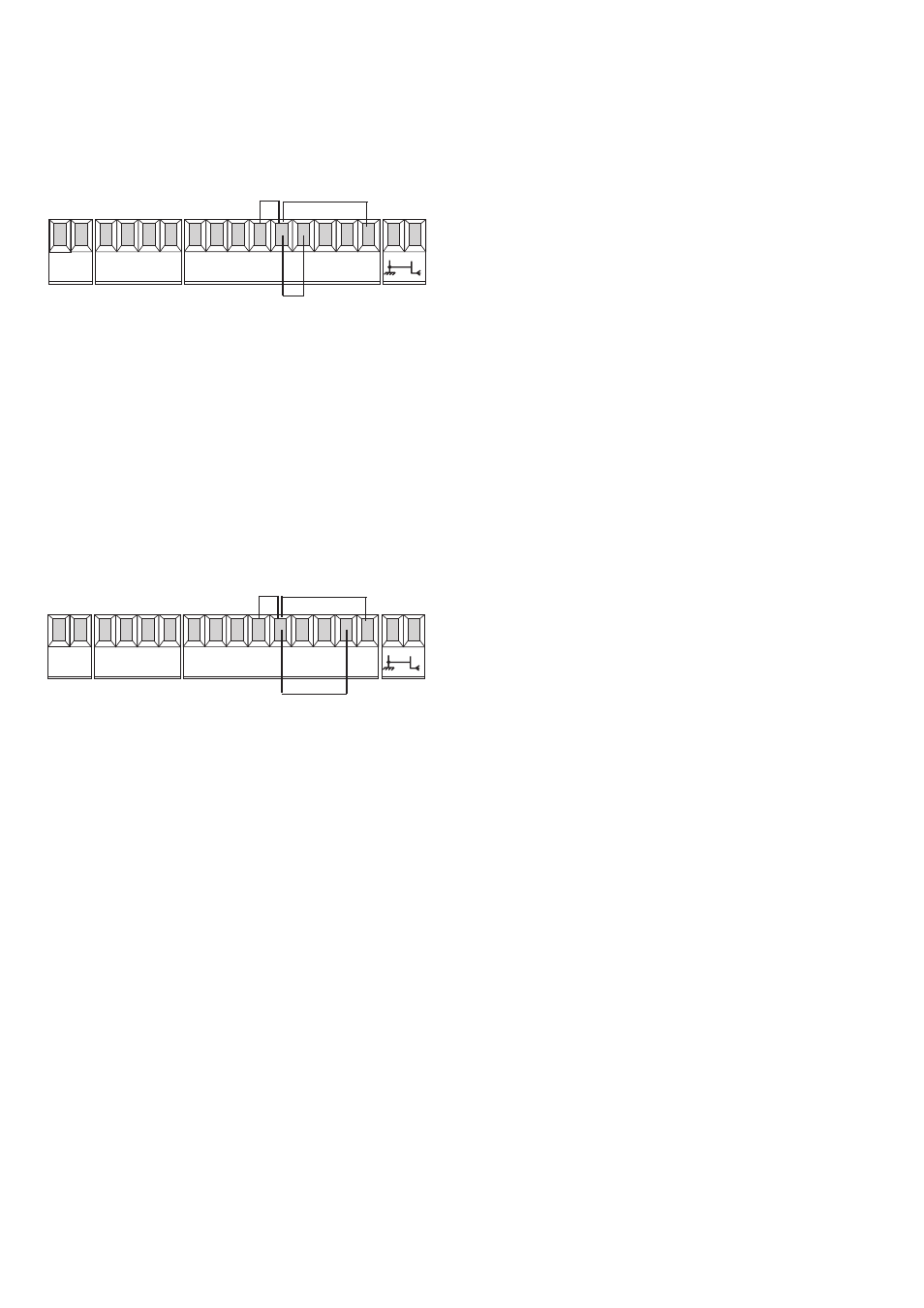

Fig 20
Fig 21
L1 L2 U V W E1 ES 10 11 1 2 3 5 7 C1
L1 L2 U V W E1 ES 10 11 1 2 3 5 7 C1
