4 - adjusting the open stop microswitch, 3 - installing the motor – CAME Ati-S324 Kit User Manual
Page 12
180
°

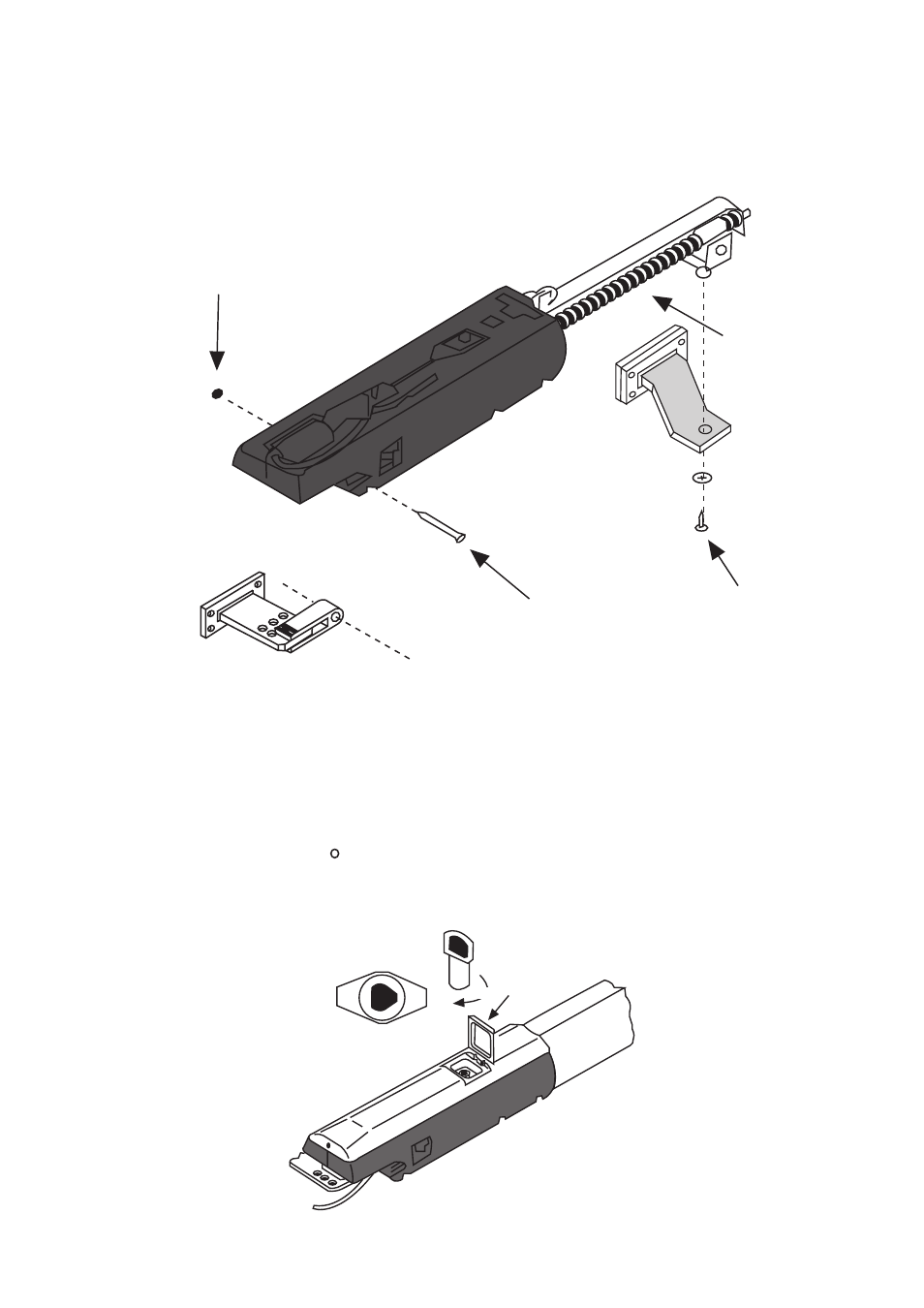

WITH THE COVERS REMOVED INSTALL THE MOTOR ON THE TWO
BRACKETS AND SECURE THE MOTOR WITH THE NUTS AND BOLTS
PROVIDED.
Fig 9
M8 X 50
M8 X 10
WORM-GEAR
M8 LOCKNUT
2.4 - Adjusting the Open Stop Microswitch
MANUALLY RELEASE THE REDUCTION GEAR BY INSERTING THE RELEASE
KEY AND TURNING IT 180.
Fig 10
2.3 - Installing the Motor
11
