TIMER FEATURES

Parameter

Display

Data

Display

PM

Indicator

Flow Indicator

x1000 Indicator

Service

Icon

Programming

Icon

Extra Cycle

Button

Up

Button

Down

Button

Error/

Information

Icon

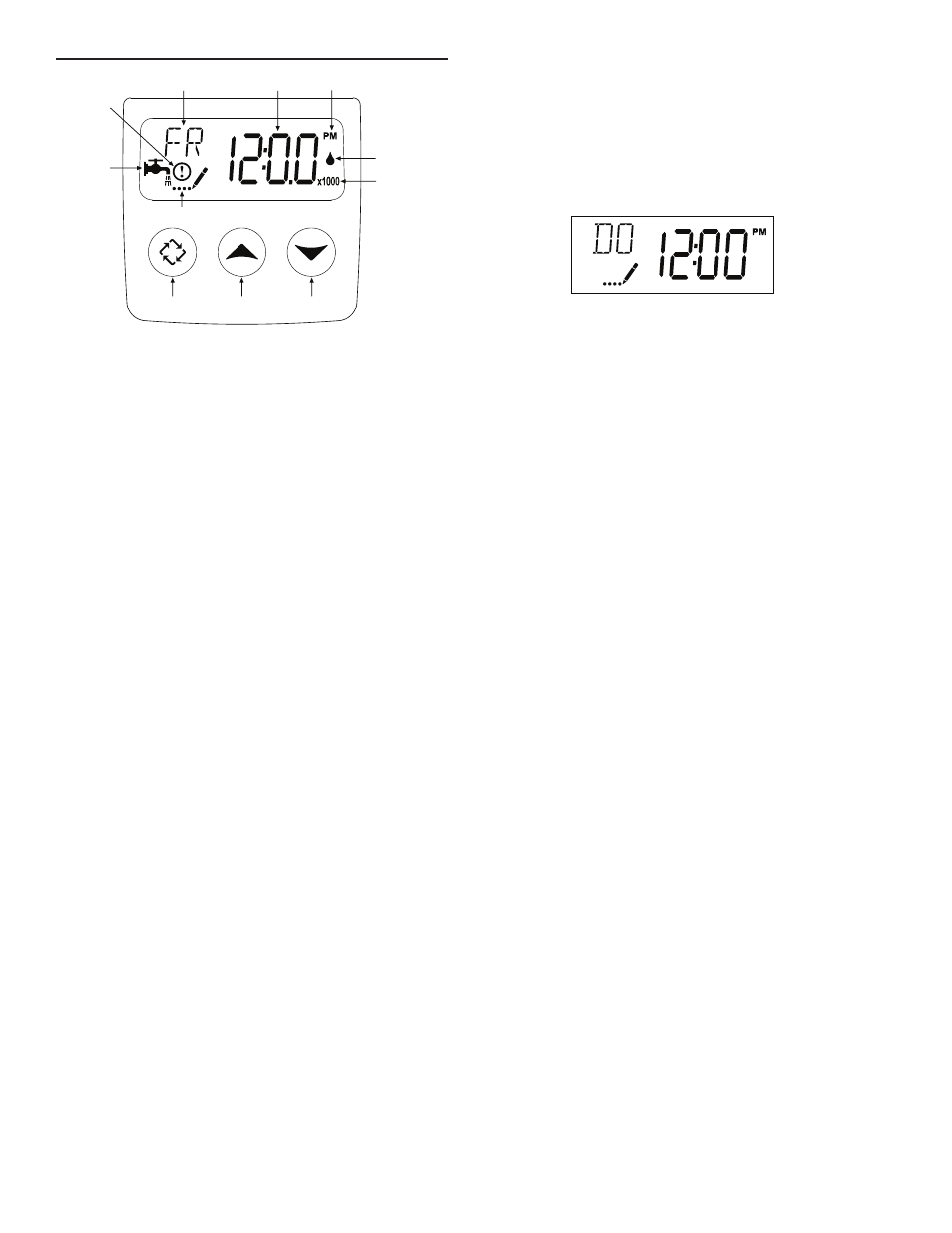

Figure 1

Features of the SXT:

• Power backup that continues to keep time and the

passage of days for a minimum of 48 hours in the event

of power failure. During a power outage, the control goes

into a power-saving mode. It does not monitor water

usage during a power failure, but it does store the volume

remaining at the time of power failure.

• Settings for both valve (basic system) and control type

(method used to trigger a regeneration).

• Day-of-the-Week controls.
• While in service, the display alternates between time of

day, volume remaining or days to regeneration, and tank

in service (twin tank systems only).

• The Flow Indicator flashes when outlet flow is detected.
• The Service Icon flashes if a regeneration cycle has been

queued.

• A Regeneration can be triggered immediately by pressing

the Extra Cycle button for five seconds.

• The Parameter Display displays the current Cycle Step

(BW, BF, RR, etc) during regeneration, and the data

display counts down the time remaining for that cycle

step. While the valve is transferring to a new cycle step,

the display will flash. The parameter display will identify

the destination cycle step (BW, BF, RR, etc) and the data

display will read “----”. Once the valve reaches the cycle

step, the display will stop flashing and the data display

will change to the time remaining. During regeneration,

the user can force the control to advance to the next cycle

step immediately by pressing the extra cycle button.

Setting the Time of Day
1. Press and hold either the Up or Down buttons until the

programming icon replaces the service icon and the

parameter display reads DO.

2. Adjust the displayed time with the Up and Down buttons.
3. When the desired time is set, press the Extra Cycle button

to resume normal operation. The unit will also return to

normal operation after 5 seconds if no buttons are pressed.

Queueing a Regeneration
1. Press the Extra Cycle button. The service icon will flash to

indicate that a regeneration is queued.

2. To cancel a queued regeneration, press the Extra Cycle

button.

Regenerating Immediately
Press and hold the Extra Cycle button for five seconds.
