3/4" BRASS PADDLE METER

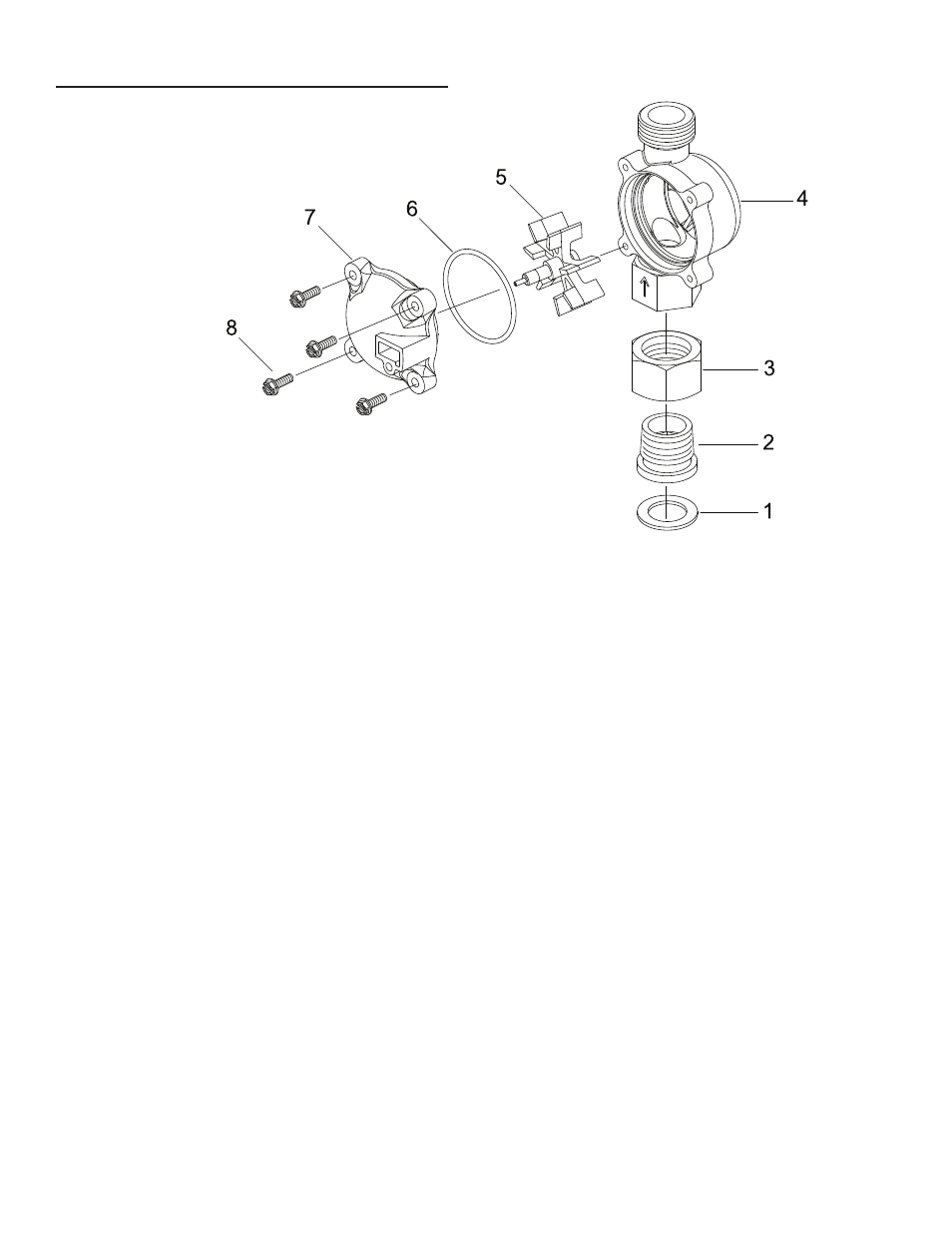

ASSEMBLY
Item No. QTY Part No. Description
1 ................1 ....... 11206 ................Gasket, Fitting
2 ................1 ....... 13942 ................Retainer, Nut
3 ................1 ....... 11207 ................Nut, Special, Quick Connect
4 ................1 ....... 13906 ................Body, Meter, 3/4"
5 ................1 ....... 13509 ................Impeller, Meter
............................ 13509-01 ...........Impeller, Celcon
6 ................1 ....... 13847 ................O-ring, -137 Std/560CD, Meter
7 ................1 ....... 14716 ................Meter Cap Assy, ET/NT
8 ................1 ....... 12473 ................Screw, Hex Wsh, 10-24 x 5/8
Not Shown
........ 19121-08 ...........Meter Cable Assy, NT, 35" w/
Connector
........ 19121-09 ...........Meter Cable Assy, NT, 99.5" w/
Connector
........ 19121-10 ...........Meter Cable Assy, NT, 303.5" w/
Connector
