Hydrotech SXT Timer - Manual (Page 10)

Item No. QTY Part No. Description
1 ................1 ....... 13881 ................Bracket, Hinge Timer
3 ................1 ....... 14265 ................Clip, Spring
4 ................1 ....... 27172 ................Stand-off, Timer, 2510SXT,
2750SXT
5 ................1 ....... 21363 ................Screw, Hex HD, M4 X 12 MM
7 ................1 ....... 27168 ................Bracket, Timer,
2510SE/2750SXT
8 ................3 ....... 13296 ................Screw, Hex Washer, 6-20 X 1/2
9 ................1 ....... 42778 ................Timer, SXT, 2510/2750, DF
9A .............1 ....... 19889 ................Housing, Circuit Board
9B .............1 ....... 42196 ................Circuit Board, SXT
9C .............1 ....... 42635-01 ...........Cover, Front, SXT, Square
9D .............1 ....... 42637 ................Label, Display, SXT
9E .............1 ....... 42864 ................Wire Harness, SXT

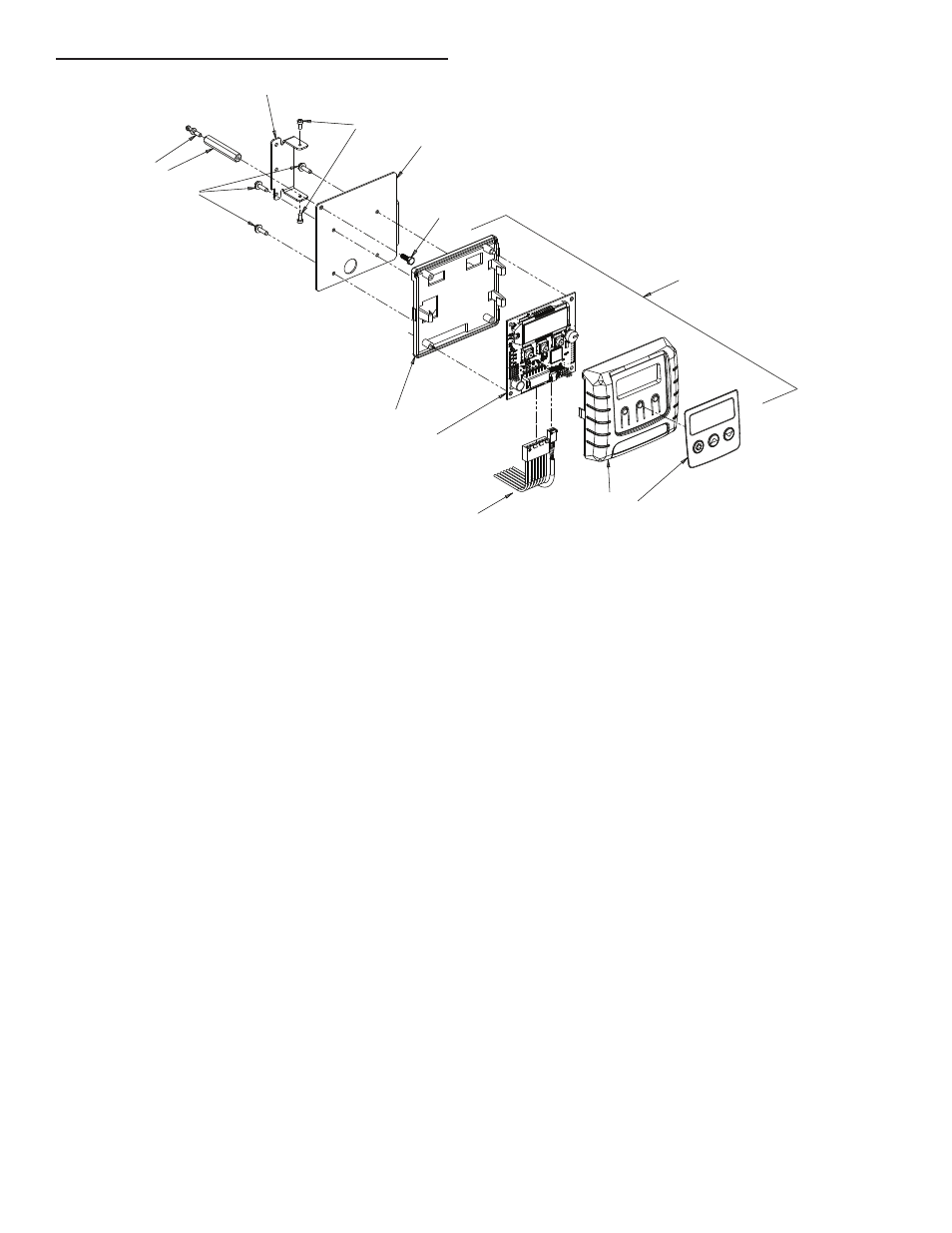

2510/2750/2850S TIMER ASSEMBLY
42778 Rev E
9
3
4
1
2
7
5
9A
9B
9C 9D
8
9E
