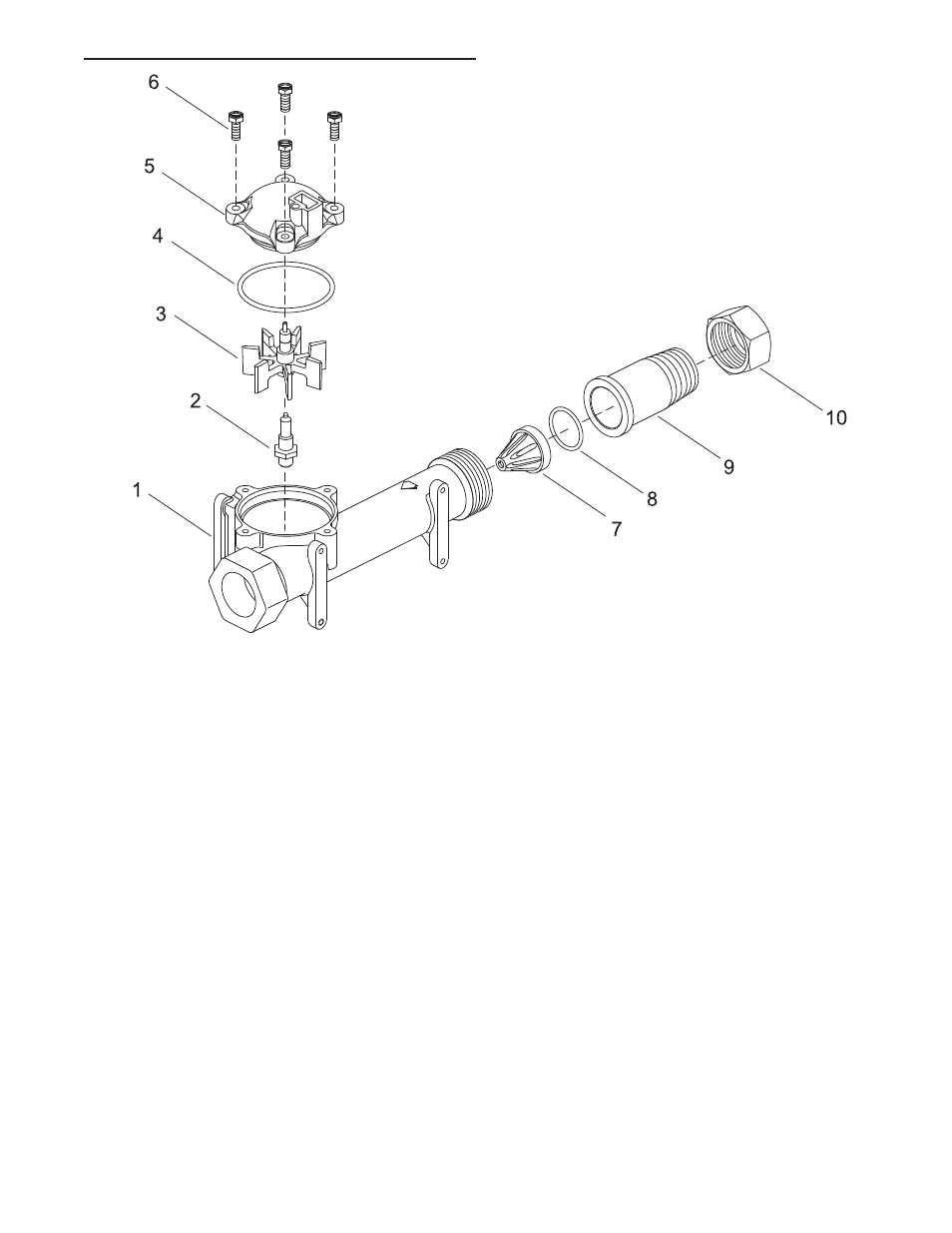

1" BRASS PADDLE METER ASSEMBLY
Item No. QTY Part No. Description
1 ................1 ....... 14959 ................Body, Meter, 2750
2 ................1 ....... 13882 ................Post, Meter Impeller
3 ................1 ....... 13509 ................Impeller, Meter
4 ................1 ....... 13847 ................O-ring, -137, Std/560CD, Meter
5 ................1 ....... 14716 ................Meter Cap Assy, ET/NT
6 ................4 ....... 12112 ................Screw, Hex Hd Mach, 10-24 x
1/2
7 ................1 ....... 14960 ................Flow Straightener, 1"
8 ................1 ....... 13287 ................O-ring, -123
9 ................1 ....... 14961 ................Fitting, 1" Quick Connect
10 ..............1 ....... 14962 ................Nut, 1" Meter, Quick Connect
