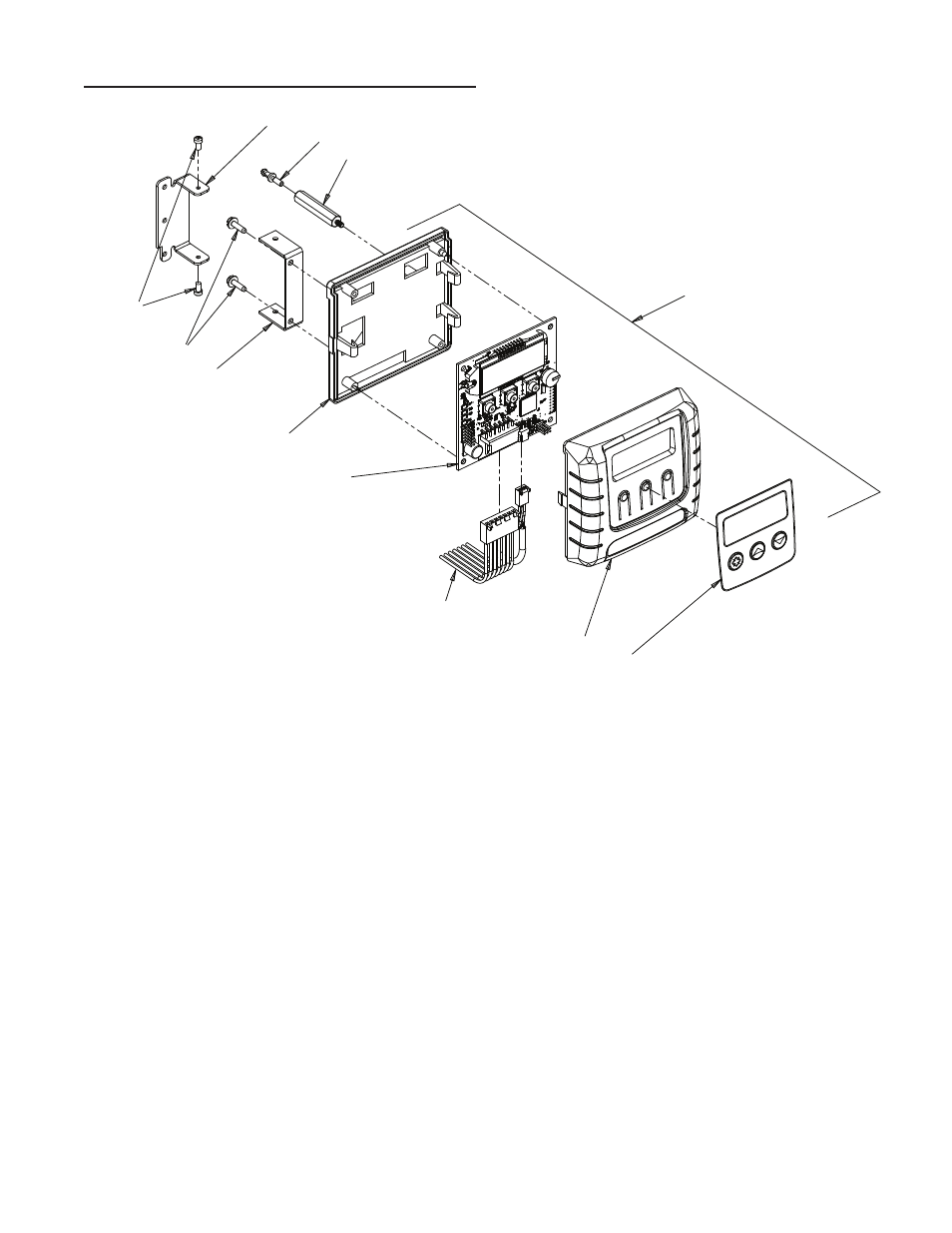

9000/9100/9500 TWIN TANK TIMER
ASSEMBLY
Item No. QTY Part No. Description
1 ................1 ....... 13881 ................Bracket, Hinge Timer
2 ................2 ....... 11384 ................Screw, Phillips, 6-32 X 1/4
3 ................1 ....... 42732 ................Bracket, Timer, 9000SXT
4 ................2 ....... 13296 ................Screw, Hex Washer Hd, 6-20 X
1/2
5 ................1 ....... 14265 ................Clip, Spring
6 ................1 ....... 42733 ................Stand-off, Timer, 9000SXT
7 ................1 ....... 42777 ................Timer, SXT, D/F, 9000/9100/9500
7A .............1 ....... 19889 ................Housing, Circuit Board
7B .............1 ....... 42196 ................Circuit Board, SXT
7C .............1 ....... 42635-01 ...........Cover, Front, SXT, Square
7D .............1 ....... 42637 ................Label, Display, SXT
8 ................1 ....... 19474-01 ...........Harness, SXT
42777 Rev D
1
2
4
3
5
6
7A
7B
7C
7D
7
8
Fleck SXT Timer JL10 • 11
