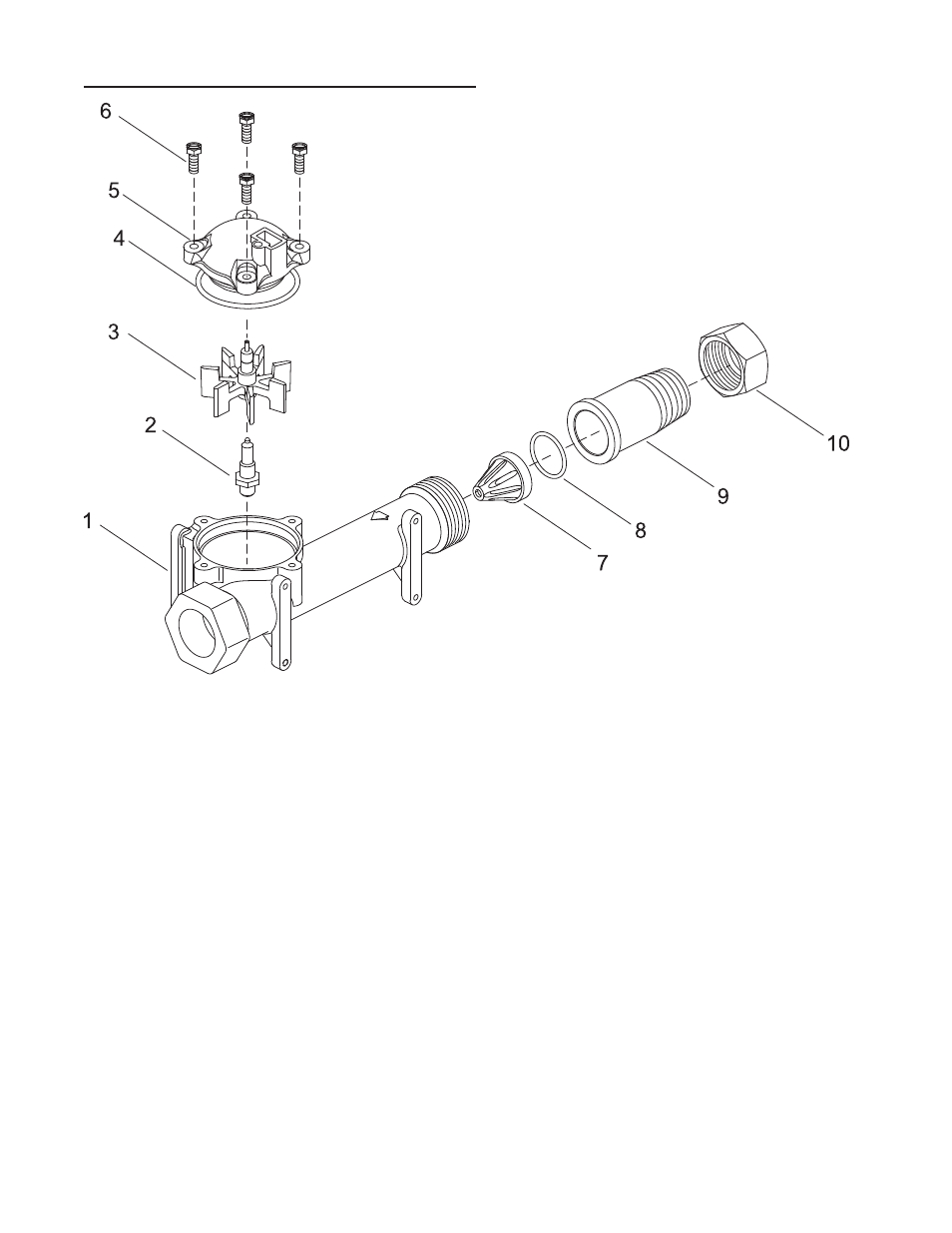

1-1/2" BRASS PADDLE METER
ASSEMBLY
Item No. QTY Part No. Description
1 ................1 ....... 17569 ................Body, Meter, 2850/9500
2 ................1 ....... 13882 ................Post, Meter Impeller
3 ................1 ....... 13509 ................Impeller, Meter
4 ................1 ....... 13847 ................O-ring, -137, Std/560CD, Meter
5 ................1 ....... 14716 ................Meter Cap Assy, NT
6 ................4 ....... 12112 ................Screw, Hex Hd Mach, 10-24 x
1/2
7 ................1 ....... 17542 ................Flow Straightener, 1-1/2"
8 ................1 ....... 12733 ................O-ring, -132
9 ................1 ....... 17544 ................Fitting, 1-1/2" Quick Connect
10 ..............1 ....... 17543 ................Nut, 1-1/2", Quick Connect
60614 Rev B
Fleck SXT Timer JL10 • 17
