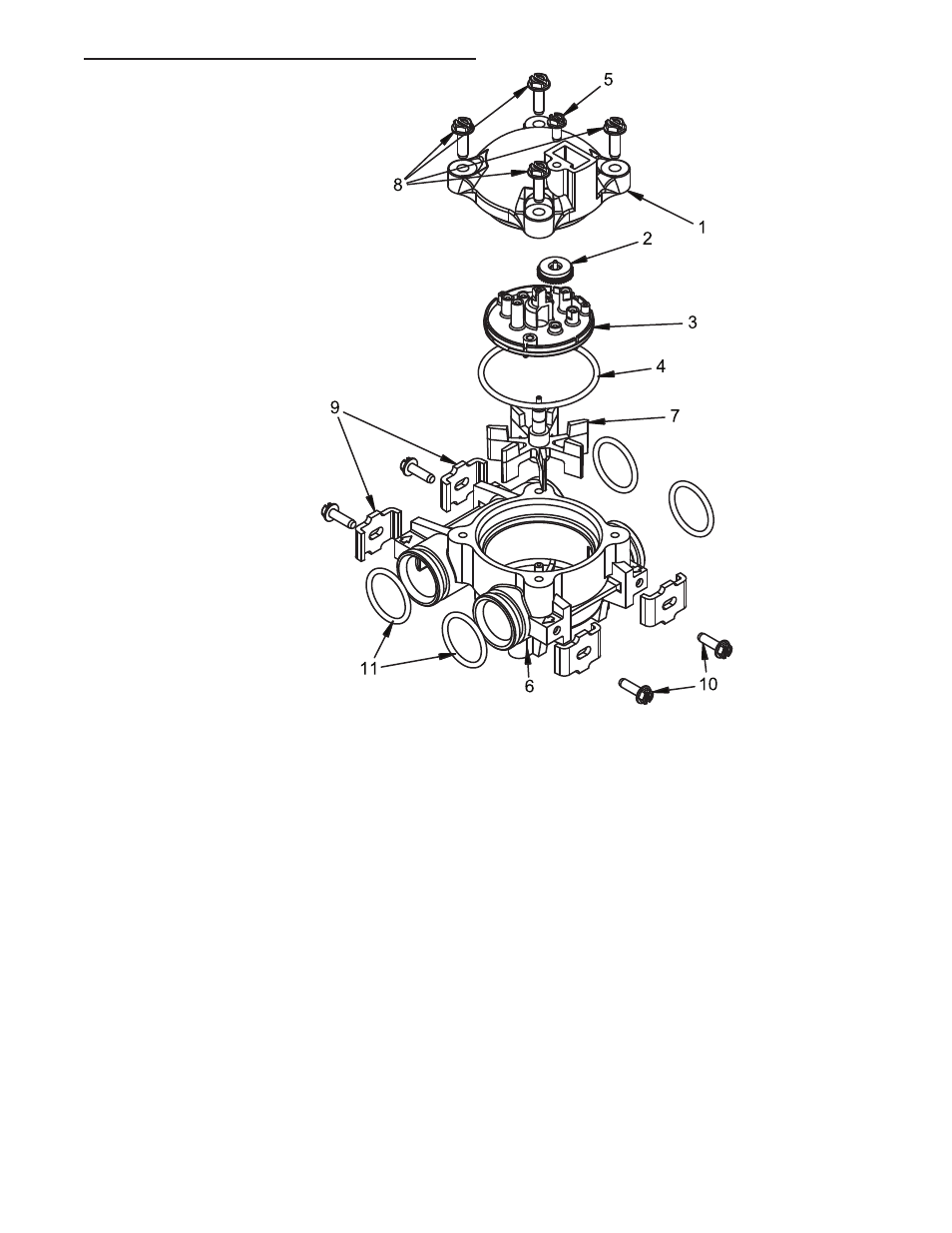

METER ASSEMBLY
Item No. QTY Part No. Description
1 ................1 ....... 13874 ................Body, Meter, 5600
2 ................1 ....... 14715 ................Gear Assy, Electronic Meter Cap
3 ................1 ....... 41055 ................Plate, Intermediate
4 ................1 ....... 13847 ................O-ring, -137, Std, Meter
5 ................5 ....... 17798 ................Screw, Slot Hex Washer Head
6 ................1 ....... 13821 ................Body, Meter, 5600
7 ................1 ....... 13509 ................Impeller, Meter
8 ................4 ....... 12473 ................Screw, Hex Wsh, 10-24 x 5/8
9 ................4 ....... 13255 ................Clip, Mounting
10 ..............1 ....... 13314 ................Screw, Slot Ind Hex, 8-18 x .60
11 ..............1 ....... 13305 ................O-ring, -119
12 ..............1 ....... 14613 ................Flow Straightener
