PC6172

17” industrial Core 2 Duo Panel PC

2-23 FSB Frequency Selection

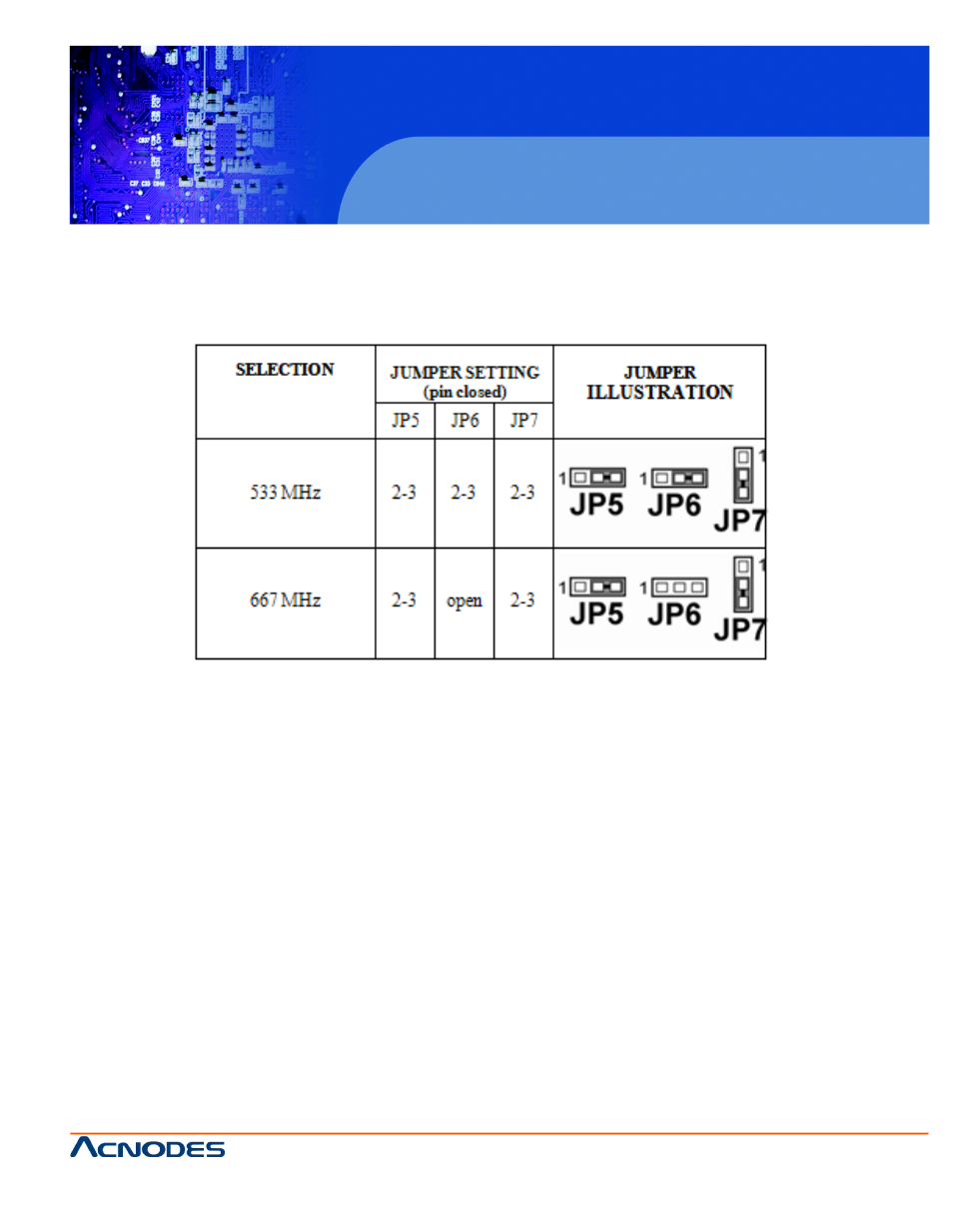

JP5, JP6, JP7:FSB Frequency Selections.

The pin assignments are as follows:

*** Manufacturing Default - 667 MHz.

2-24 Power State Selection

JP22, JP10, JP21:Power State Selections.

The pin assignments are as follows:
