PC6172

17” industrial Core 2 Duo Panel PC

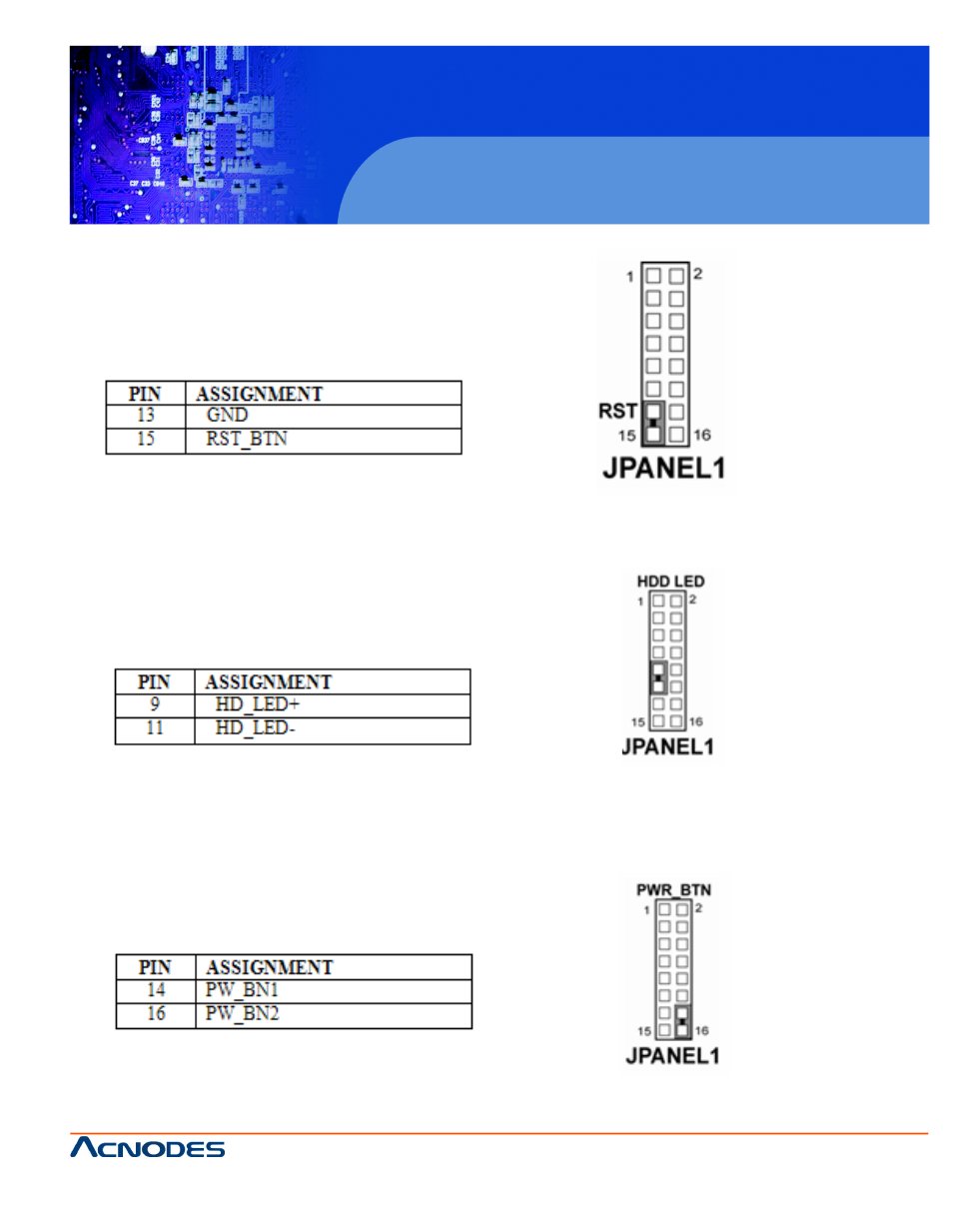

2-5 Reset Connector

JPANEL1 (13, 15) : Reset Connector. The pin

assignment is as follows :

2-6 Hard Disk Drive LED Connector

JPANEL1 (9, 11) : Hard Disk Drive LED Connector

The pin assignment is as follows :

2-7 ATX Power Button

JPANEL1 (14, 16) : ATX Power Button

The pin assignment is as follows :
