PC6172
17” industrial Core 2 Duo Panel PC
2-11 CPU Fan Connector
2-10 Clear CMOS Data Selection

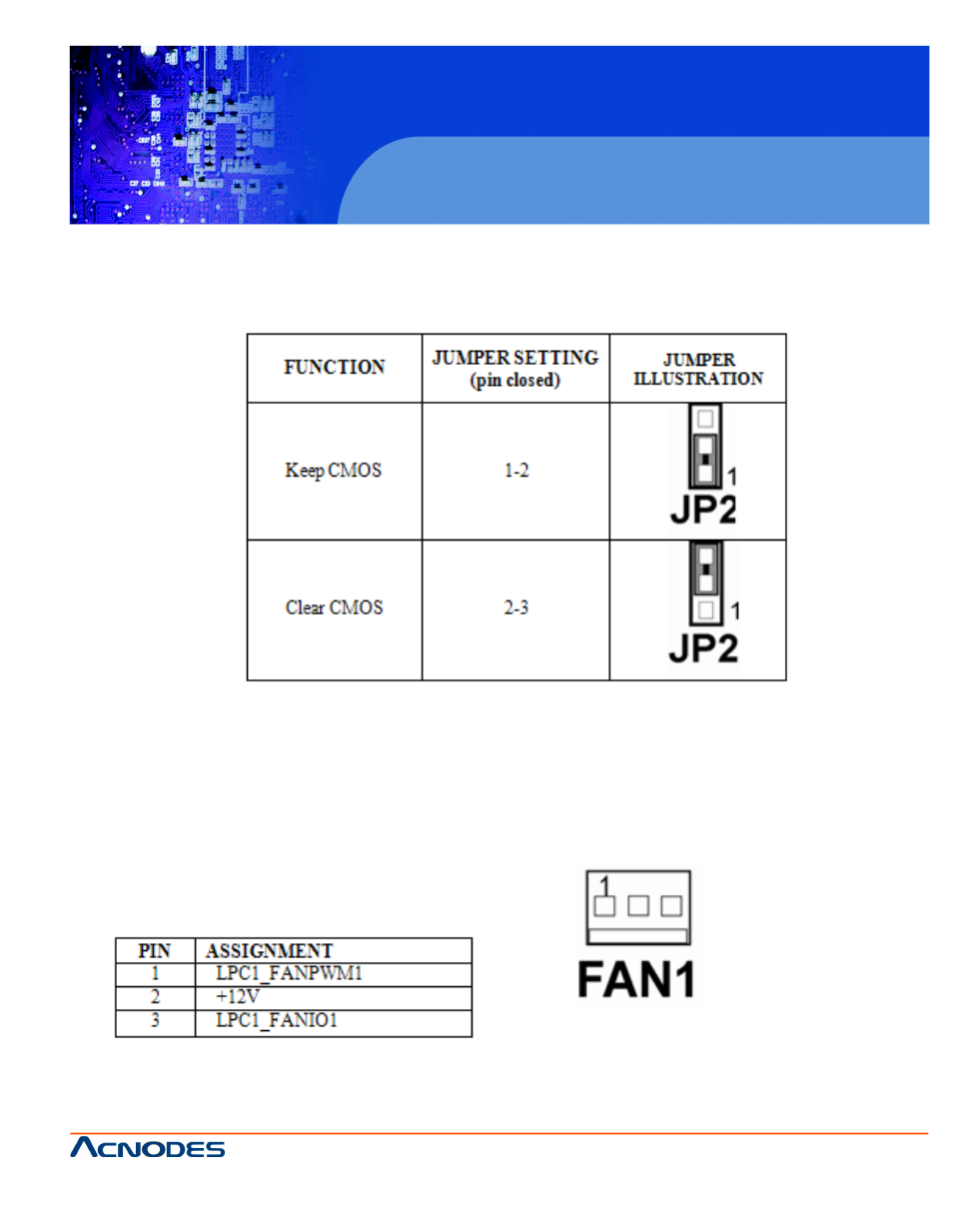

JP2 : Clear CMOS Data Selection
The selections are as follows :
*** Manufacturing Default - Keep CMOS.
Note: To clear CMOS data, user must power-off the computer and set the jumper to "Clear CMOS"
as illustrated above. After five to six seconds, set the jumper back to "Normal" and power-on the
computer.
FAN1 : CPU Fan connector
The pin assignment is as follows:
