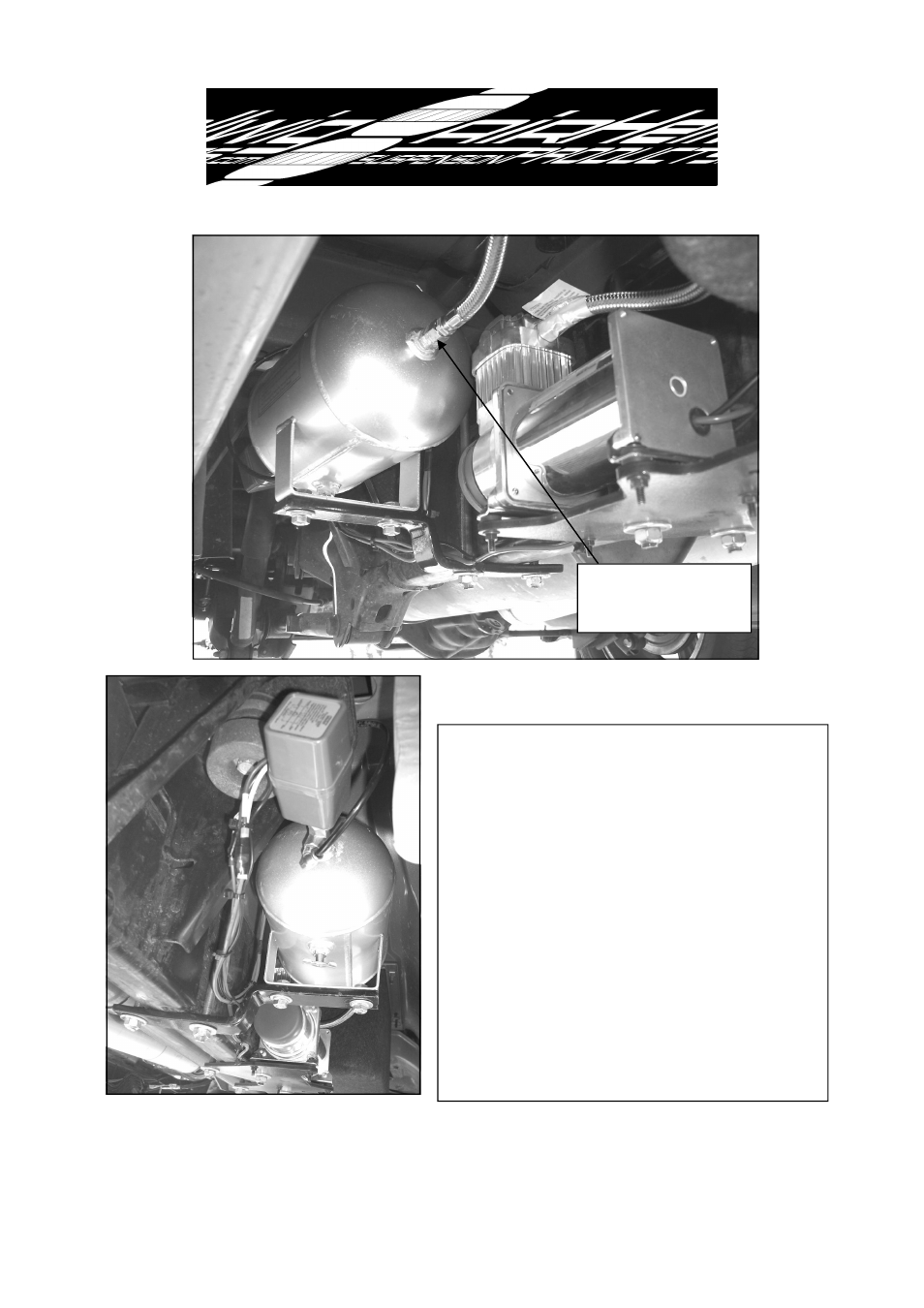

16. Mount compressor to mounting plate
using fasteners supplied with compressor
as shown in photo.
Connect compressor
mounting plate to the passenger side frame
rail using two of the supplied U-bolts
washers and locknuts. Mount tank to tank
bracket as shown using 3/8 x 1-1/4 bolts
and mount to frame using supplied U-bolt.
Torque nuts on U-bolts to 30-35 ft-lb.
Torque bolts to 20-25 ft-lb. Connect com-
pressor hose to tank fitting as shown
above. Take care to tighten only the speci-
fied fitting to avoid damaging check valve
Compressor hose in-
stalled to tank. Do not
tighten check valve.
