OPERATION (continued)

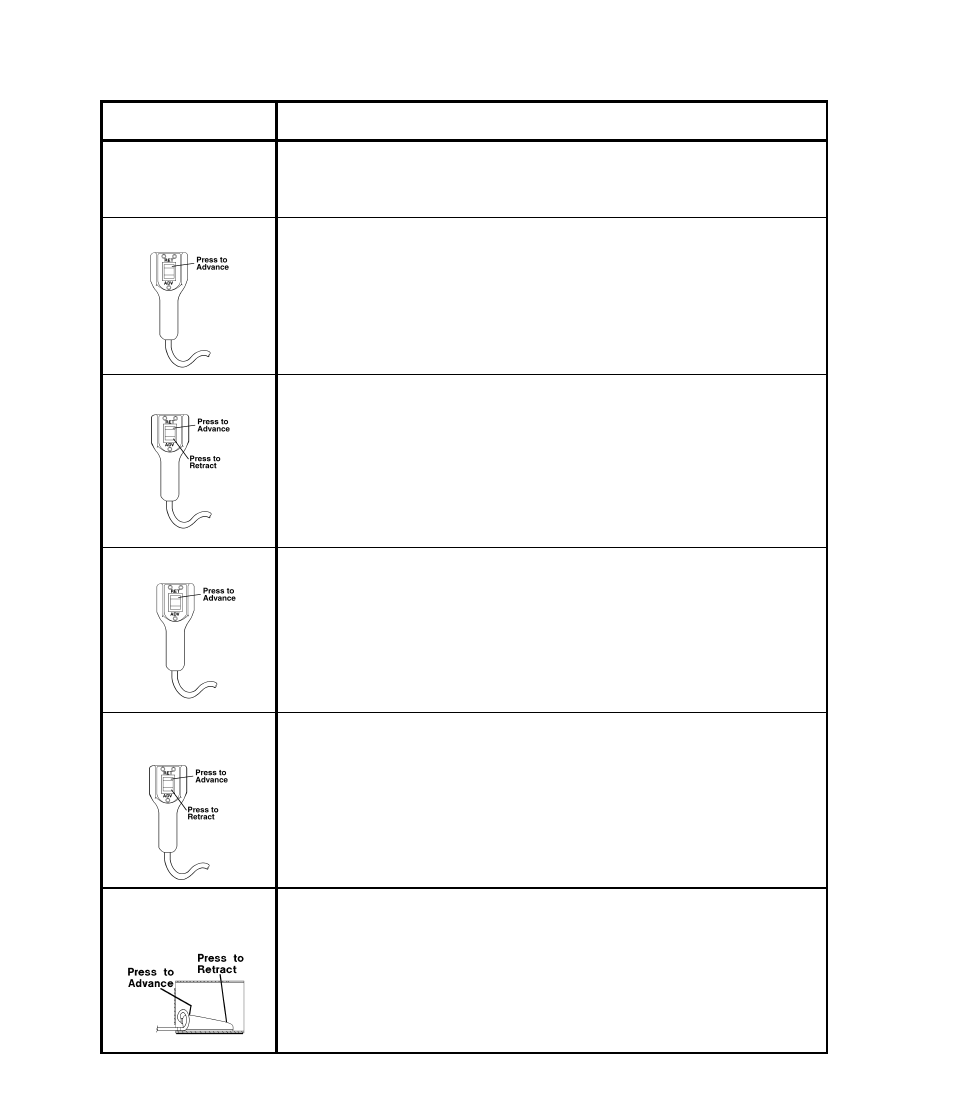

Control Type

Manual Valve

(see page 5)

Dump Pendant

Dump and Hold Pendant

Jog Pendant

Solenoid Valve Pendant

Solenoid Valve Foot
Switch

How It Works

The shroud On/Off switch activates the motor and pump.
Oil will flow according to position of manual valve. See page 5 for
valve positions.

The shroud On/Off switch activates the pendant. The pendant controls the
motor and the dump valve.

The pendant switch is momentary. Pressing “Adv” will start the motor and
shift the valve causing the cylinder to advance. When the pendant switch is
released, the motor will stop, the dump valve will shift to retract, and the
cylinder will retract.

The shroud On/Off switch activates the pendant. The pendant controls the
motor and the dump valve.

The pendant switch is momentary. Pressing “Adv” will start the motor and the
cylinder will advance. When the switch is released, the motor will stop and
the valve will hold the load in its current position. Pressing “Ret” will shift the
valve, allowing the cylinder to retract. (The motor will not run.)

The shroud On/Off switch activates the pendant. The pendant controls only
the motor.

The pendant switch is momentary. Pressing “Adv” will start the motor and oil
will flow from the pump. The direction of oil flow is controlled by the manual
valve position. (See page 5 for valve positions.) When the switch is released,
the motor will stop.

The shroud On/Off switch activates the pendant and starts the motor. The
pendant controls the direction of oil flow.

The pendant switch is momentary. Press “Adv” to advance cylinder. When
you release the pendant switch, the valve will shift to the neutral position.
Press “Ret” to retract the cylinder.

The shroud On/Off switch activates the foot switch and starts the motor. The
foot switch controls the direction of oil flow.

The foot switch is momentary. Press “Adv” to advance cylinder. When you
release the foot switch, the valve will shift to the neutral position. Press “Ret”
to retract the cylinder.
