Gardner Bender 1 1_8 HP Titan Pumps User Manual
Page 5
■
OPERATION
Always check oil level gauge before operating pump. See instructions on Page 4. Refer to section below or
on page 6 that applies to your pump. Operation is explained for manual valves; dump, dump and hold, and
jog pendants; and solenoid valve pendants and foot switches.
■
On/Off Switch Operation
The on/off switch is located on the side of the pump
shroud. For dump and jog versions, the motor is
started by the pendant switch. See page 6 for more
operating information.
■
Manual Valves

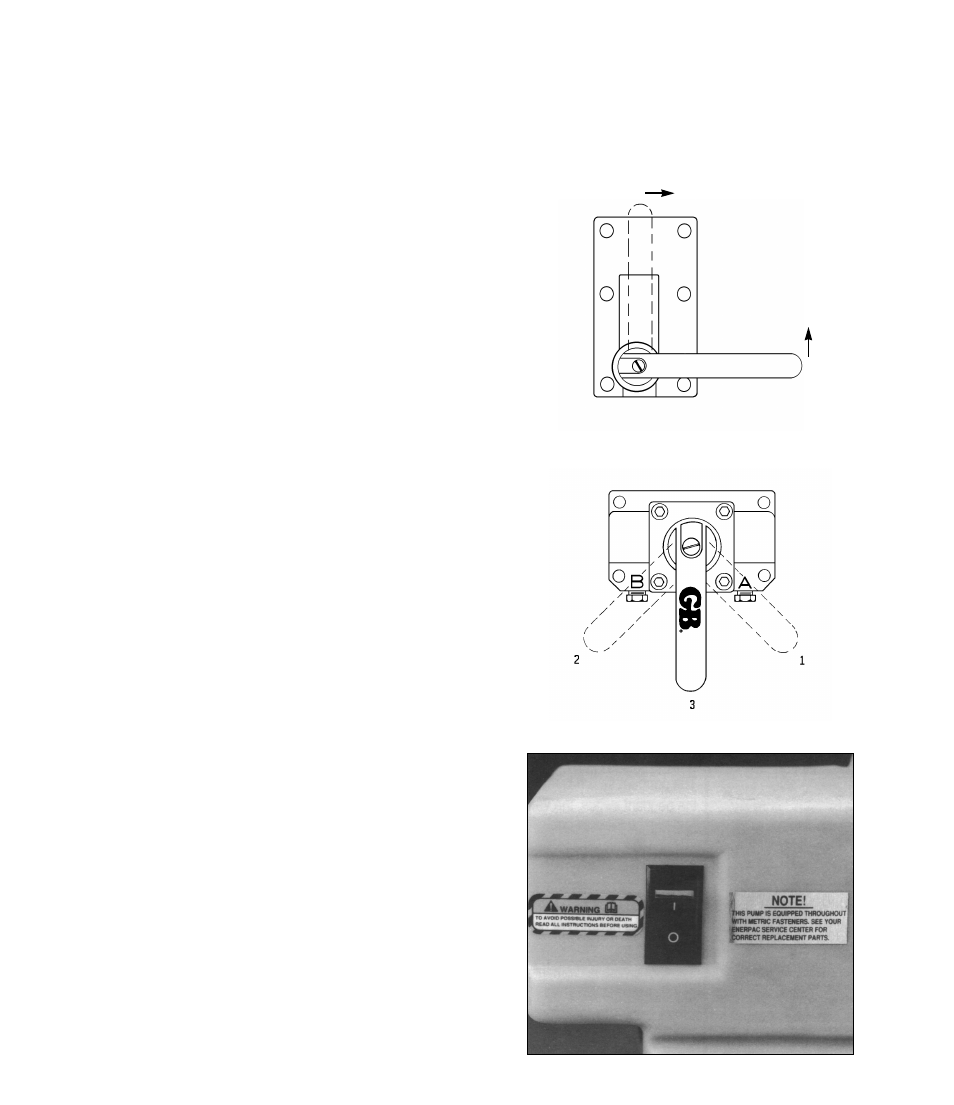

Use the pump mounted manual valve to control the
direction of the oil flow. Use 2 and 3-way valves with
single-acting, and 4-way valves with double-acting
cylinders or tools. Put valve in the neutral or retract
position before starting pump. See diagrams at right for
valve positions.
VM-2 (3-way) Valves:
1. advance
2. retract
VM-3, VM-3L (3-way), VM-4, VM-4L (4-way) Valves:
1. advance
2. retract
3. neutral
5
1
2
