Gardner Bender B2555 Series Electric Sidewinder Bender - Manual (Page 4)

4

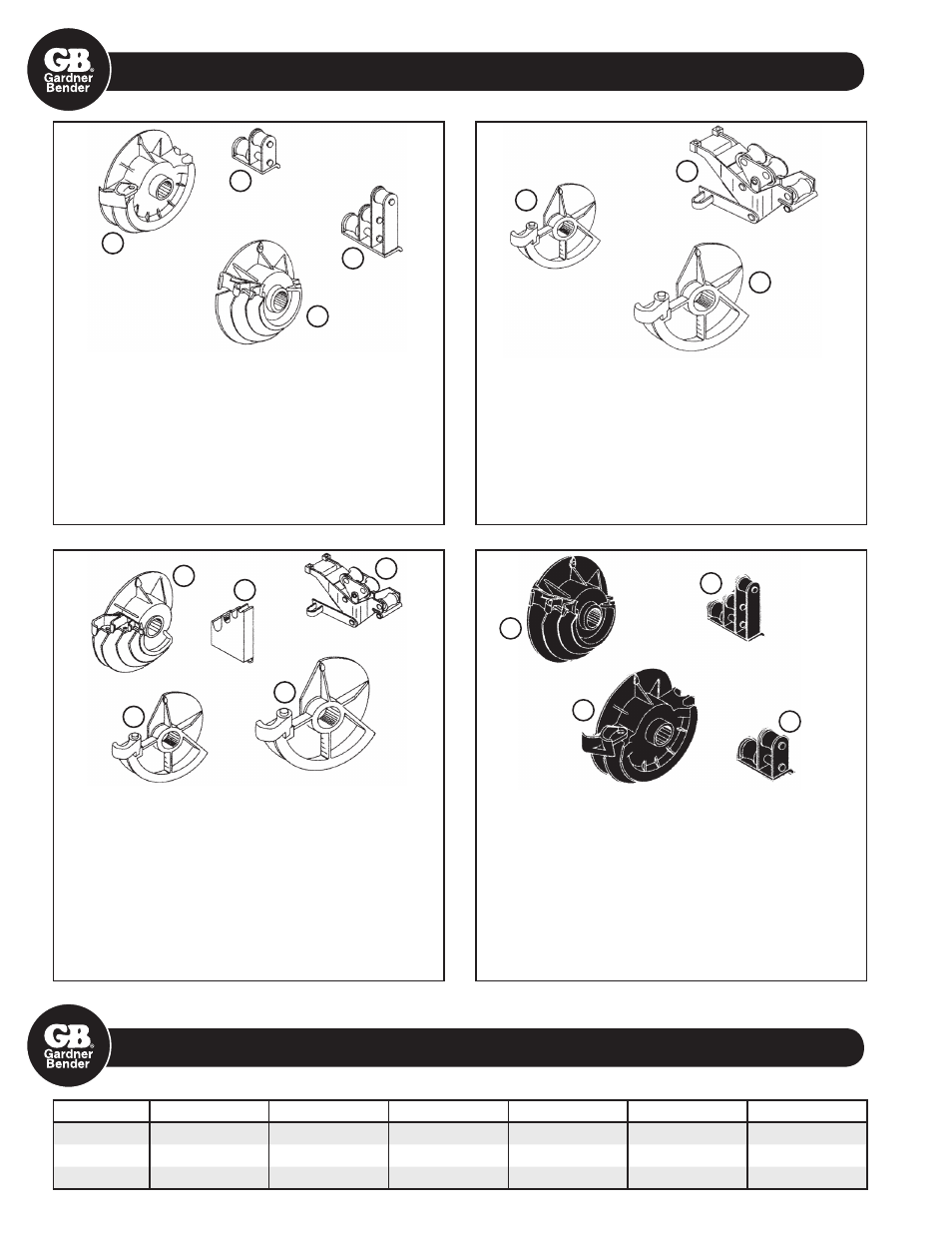

6.0 SHOE GROUPS
RIGID
1
2
3
4
BRIG-52 – For bending 1/2" thru 2" RIGID conduit, 1/2"
thru 1-1/4" IMC conduit and 1/2" thru 2" schedule 40 pipe
Includes the following four items:
Key Catalog Description
1 RS-5125 1/2" thru 1-1/4" bending shoe
2 RSR-5125 1/2" thru 1-1/4" roller support
3 RS-152 1-1/2" and 2" bending shoe
4 RSR-152 1-1/2" and 2" roller support
IMC
1
2
3
BIMC-152 – For bending 1-1/2" and 2" IMC
Includes the following four items:
Key Catalog Description
1 IS-15 1-1/2" bending shoe
2 IS-2 2" bending shoe
3 ISR-152 1-1/2" thru 2" IMC roller support unit
BX-1 Metal storage box (not shown)
EMT
1
2
3
4
BEMT-52 – For bending 1/2" thru 2" EMT (Thinwall)
Includes the following six items:
Key Catalog Description
1 ES-5125 1/2" thru 1-1/4" bending shoe
2 ESR-5125 1/2" thru 1-1/4" EMT support
3 ES15 1-1/2" bending shoe
4 ES-2 2" bending shoe
5 ESR-152 1-1/2" thru 2" EMT roller support
BX-1 Metal storage box (not shown)
PVC
1
2
3
BPVC-52 – For bending 1/2" thru 2" 40 mil PVC coated RIGID
Includes the following five items:
Key Catalog Description
1 PVS-5125 1/2" thru 1-1/4" bending shoe
2 PVR-5125 1/2" thru 1-1/4" roller support
3 PVS-152 1-1/2" and 2" bending shoe
4 PVR-152 1-1/2" and 2" roller support
BX-1 Metal storage box (not shown)
5
4
Size 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
EMT 4-1/4" 5-3/8" 6-3/4" 8-3/4" 8-9/32" 9-3/16"
IMC - - - - 8-9/32" 9-3/16"
RIGID 4-3/8" 4-1/2" 5-3/4" 7-1/4" 8-1/4" 9-1/2"
7.0 CONDUIT CENTERLINE BENDING RADII
