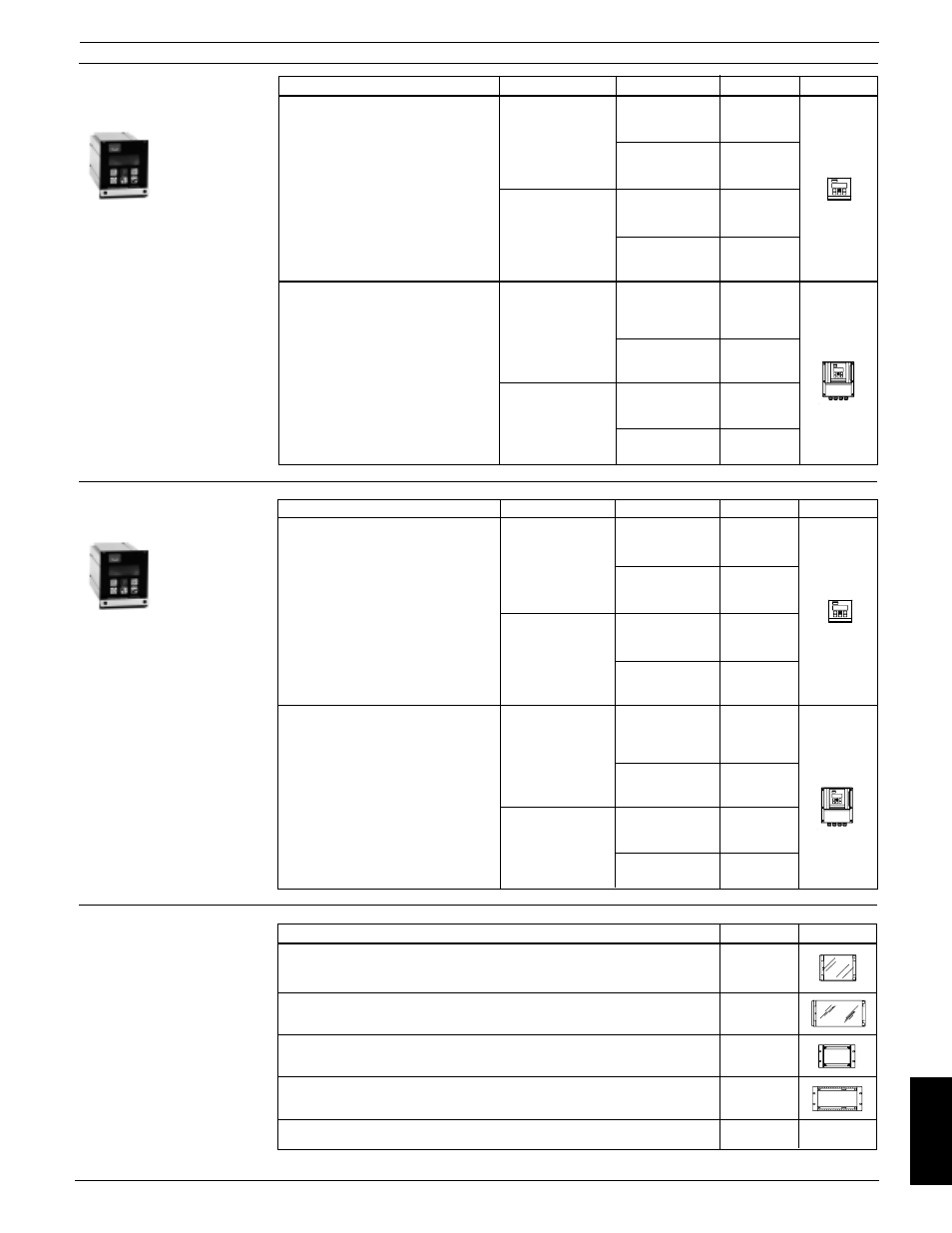

Spare Parts
Fluid Components Intl
Document 06EN003327 Rev. -
77
FlexCor
™
Model CMF Series
Description
FCI P/N
Symbol
Panel mounting kit for 19" insert (21 TE)
IP 65 enclosure in ABS plastic for panel-front mounting
083F5030
Panel mounting kit for 19" insert (42 TE)
IP 65 enclosure in ABS plastic for panel-front mounting (Holds 2 transmitters) 083F5031
Back of panel mounting kit for 19" insert (21 TE)
IP 20 enclosure in aluminium
083F5032
Back of panel mounting kit for 19" insert (42 TE)
IP 20 enclosure in aluminium (Holds 2 transmitters)
083F5033
Front cover (7 TE)
083F4525
9.5
Panel mounting
kits
9.3
Transmitter 19"
(Remote)
Standard version
Description
Version
Supply voltage
FCI P/N
Symbol
CMF B through F transmitter IP 20
1 current output
115-230 V.a.c./
version for 19" rack and panel
1 frq./pulse output
50/60Hz
083H0200
mounting
1 relay output
24 V a.c./d.c.
083H0201
3 current outputs
115-230 V.a.c./
083H0204
2 frq./pulse outputs
50/60Hz
2 relay outputs
24 V a.c./d.c.
083H0205
CMF B through F transmitter IP 20
1 current output
115-230 V.a.c./
19" version with IP 66 wall mounting
1 frq./pulse output
50/60Hz
083H0208
enclosure
1 relay output
24 V a.c./d.c.
083H0209
3 current outputs
115-230 V.a.c./
083H0212
2 frq./pulse outputs
50/60Hz
2 relay outputs
24 V a.c./d.c.
083H0213
Description
Version
Supply voltage
FCI P/N
Symbol
Transmitter,
1 current output
115-230 V.a.c./
[EEx ia] IIC IP 20 version for 19" rack
1 frq./pulse output
50/60Hz
083H0202
and panel mounting
1 relay output
24 V a.c./d.c.
083H0203
3 current outputs
115-230 V.a.c./
083H0206
2 frq./pulse outputs
50/60Hz
2 relay outputs
24 V a.c./d.c.
083H0207
CMF B through F transmitter,
1 current output
115-230 V.a.c./
[EEx ia] IIC 19" version
1 frq./pulse output
50/60Hz
083H0210
wall mounting enclosure
1 relay output
24 V a.c./d.c.
083H0211
3 current outputs
115-230 V.a.c./
083H0214
2 frq./pulse outputs
50/60Hz
2 relay outputs
24 V a.c./d.c.
083H0215
9.4
Transmitter (Remote)
19" Ex-version
