Fluid Components International CMF Series Manual Spare Parts - Manual

Spare Parts
FlexCor
™
Model CMF Series 76
Fluid Components Intl
Document 06EN003327 Rev. -

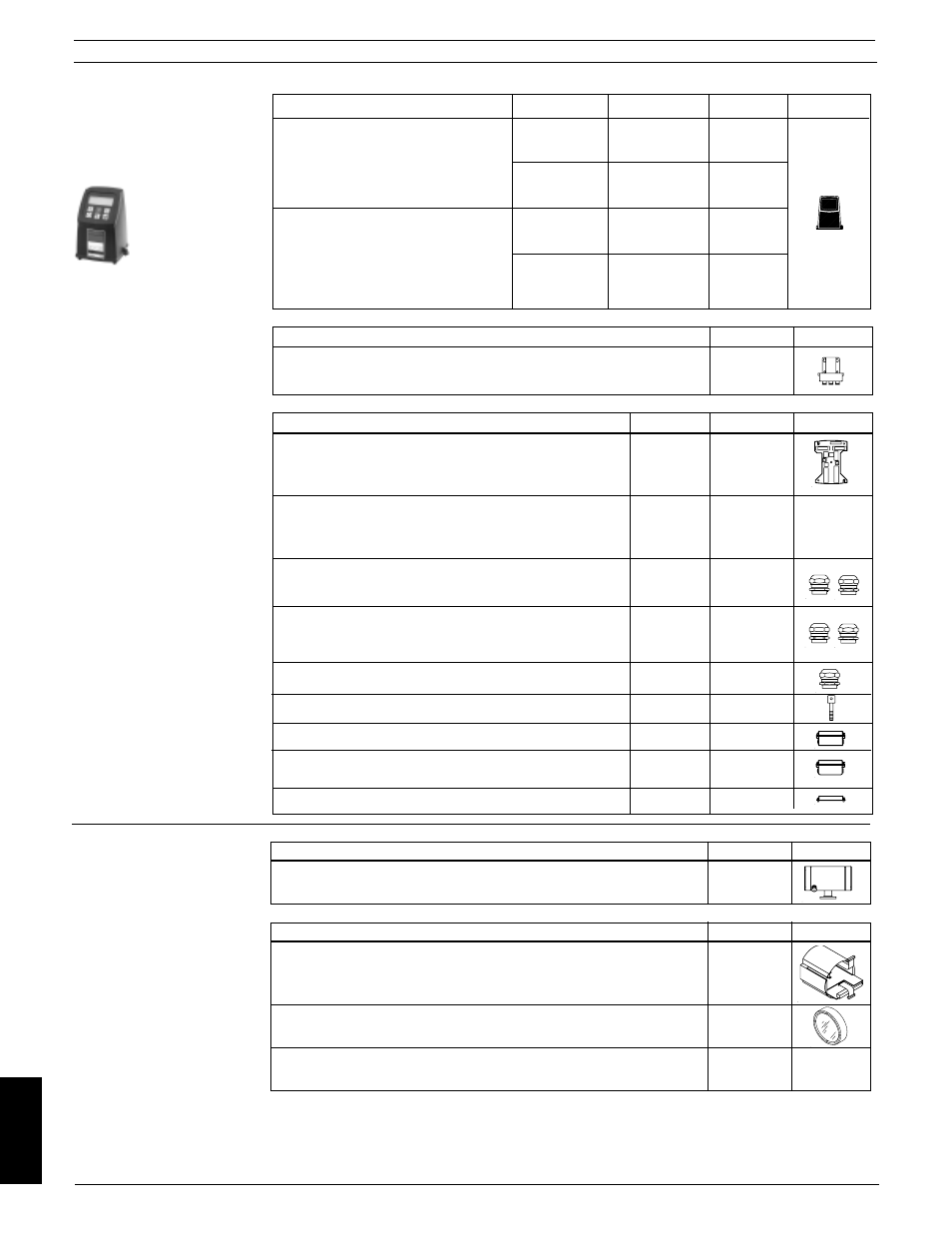

Description Version Enclosure FCI P/N Symbol
Transmitter for compact 115/230 V a.c. IP 67, fiber-
(Integral) mounting or replacement of 50/60 Hz glass reinforced 083H0222
remote transmitter (Does not include polyamide
mounting unit or bracket) 11-30 V d.c./ IP 67, fiber-
11-24 V a.c glass reinforced 083H0223
polyamide
Transmitter for remote mounting. 115/230 V a.c. IP 67, fiber-
Includes wall mounting unit and bracket 50/60 Hz glass reinforced 083H0217
polyamide
11-30 V d.c./ IP 67, fiber-
11-24 V a.c glass reinforced 083H0218
polyamide
Description FCI P/N Symbol
Wall mounting unit for IP 67 version with
Wall bracket, 4 Pg 13.5 cable glands
085U1001
Description Version FCI P/N Symbol
Connection plate/PCB 115-230 V/
12-24 V
Terminal box kit, consisting of polyamid terminal box,
cable/connector between PCB and sensor pedestal, PCB,
083H3060
seal and screws (4 pcs.) for mounting on sensor
083H4260
Standard Pg 13.5 screwed cable entries
for above cables (nickel-plated brass)
2-off 083G0227
Standard Pg 13.5 screwed cable entries
type Jacob 50.013PA for above cables (Ø 9-10 mm)
in black polyamide 212°F (100°C)
2-off 083G0228
Pg 13.5 (M) x 1/2 FNPT adapter Nickel-plated brass 017945-01
Sealing screws for sensor/transmitter 2-off 085U0221
Stainless steel (AISI 316) terminal box with lid 085U1000
Polyamid terminal box 085U1002
Complete incl. terminals excl. lid
Polyamid lid for terminal box 085U1003
9.2 Compact
( Remote)
Ex-d
Description FCI P/N Symbol
Transmitter Compact Ex de [ia] T3-T6 for mounting 083H0221
on top of CMF B through F sensor
Spare parts for
compact(Integral) Ex-d
Description FCI P/N Symbol
Ex-d converter insert 083H3061
Front lid 083U2348
Screws between pedestal and sensor (4 pcs.) 083X1407
9.1 Transmitter
Compact IP 67
Wall mounting kit
Spare parts for compact
(Integral) IP 67
9.0 Spare Parts
