Dim. & weights
FlexCOR ä Model CMF Series 18
Fluid Components Intl
Document 06EN003327 Rev. -

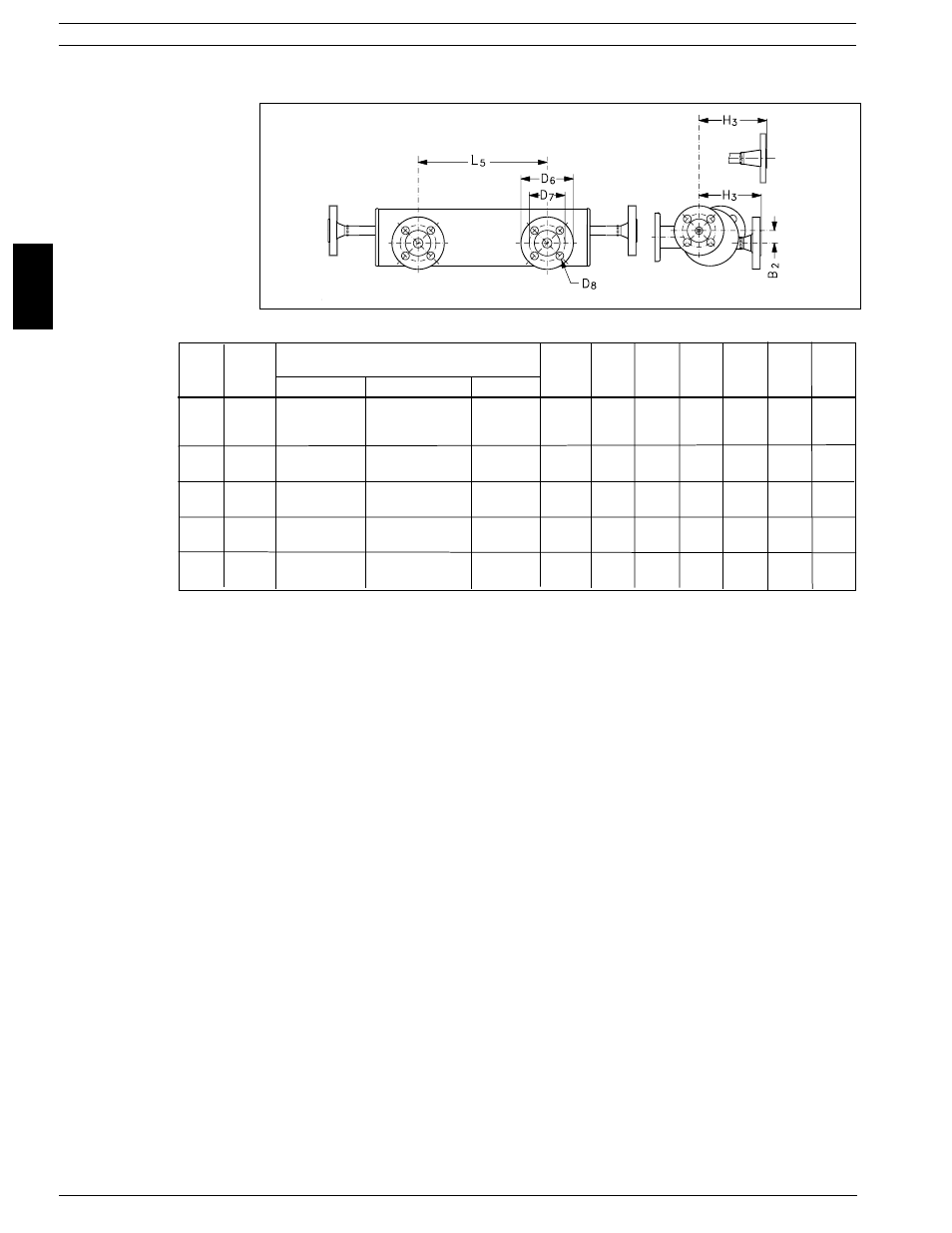

3.4 Sensor with
"heating jacket"
Flange Pressure rating Size
1/8" ANSI B16.5 CLASS 150 1 /
2
" 9.2 3.0 5.2 0.9 3.5 2.4 0.6
3 mm [234] [75.0] [131.6] [22.0] [88.9] [60.5] [15.7]
1/4" ANSI B16.5 CLASS 150 1 /
2
" 9.2 2.4 121.6 0.9 3.5 2.4 0.6
6 mm [234] [62.0] [121.6] [22.7] [88.9] [60.5] [15.7]
1/2" ANSI B16.5 CLASS 150 1 /
2
" 9.2 3.0 136.1 1.2 3.5 2.4 0.6
15 mm [234] [75.0] [136.1] [31.5] [88.9] [60.5] [15.7]
1 " ANSI B16.5 CLASS 150 1 /
2
" 16.5 2.9 223.2 2.4 3.5 2.4 0.6
25 mm [420] [74.5] [223.2] [60] [88.9] [60.5] [15.7]
2 " ANSI B16.5 CLASS 150 1 /
2
" 19.7 2.8 277.1 1.7 3.5 2.4 0.6
40 mm [500] [71.5] [277.1] [43] [88.9] [60.5] [15.7]
Sensor
size
Connections
Heated
L5
in.
[mm]
L3
in.
[mm]
H3
in.
[mm]
B2
in.
[mm]
D6
in.
[mm]
D7
in.
[mm]
D8
in.
[mm]
Model
CMF-
B
C
D
E
F
