ELRO HIS20USB Security & home automation system USERS MANUAL User Manual
Page 8
8

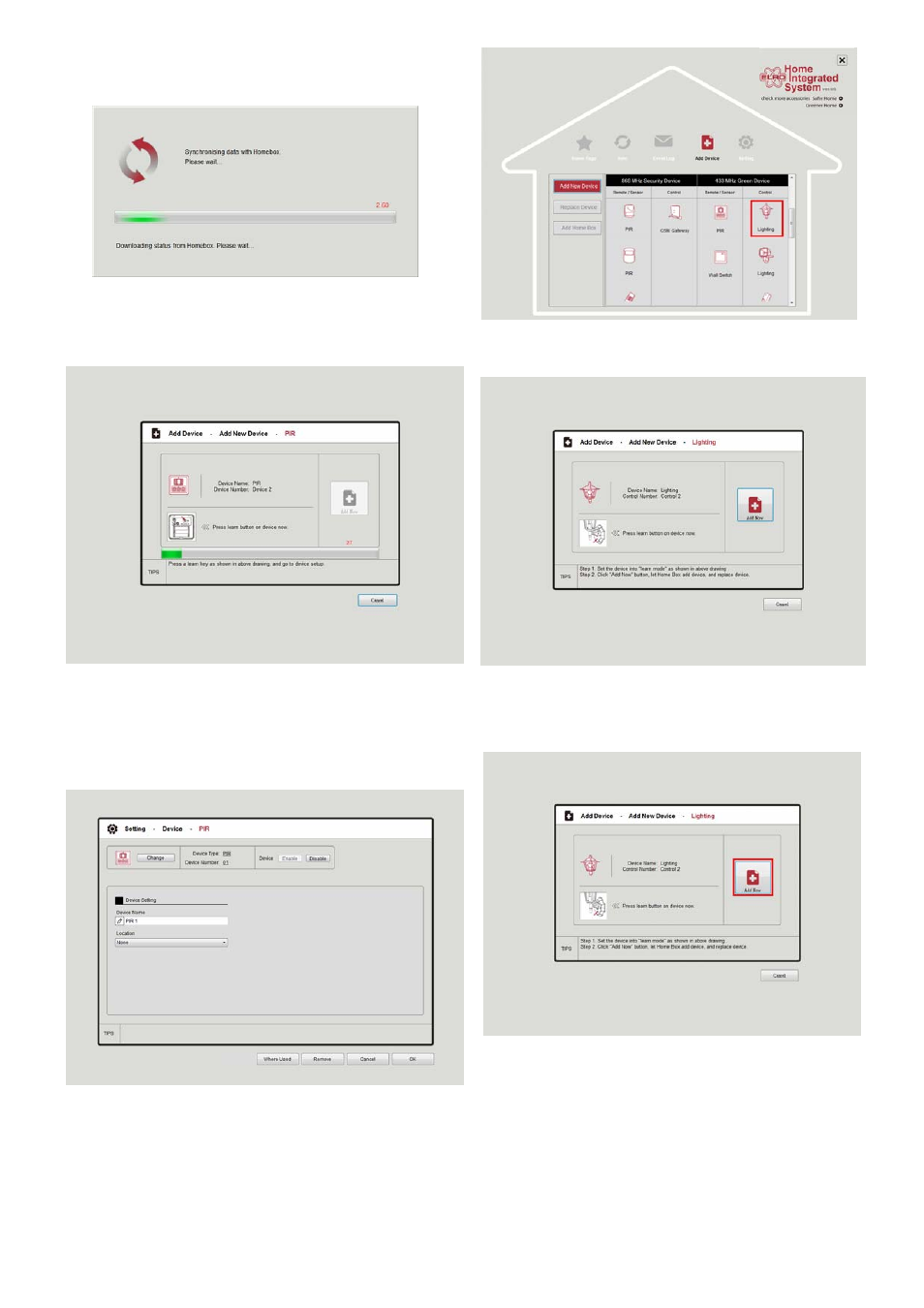

into code learning mode.
3. Operate the selected PIR device within 30 seconds
to transmit a code to be picked up by Home Box.
4. Once the system has learnt the device’s code, the
device setting window will pop up for you to configure
the relevant device properties.
Example 2: Adding a 433 (Green Device) Lighting
device
1. Click Lighting
2. The system will promptly display the code learning
window
3. Set the selected lighting device to “learn mode”.
4. Click [Add Now] in the window.
5. Once Home Box has issued the learn code
command, the code learning process for the device
would be completed.
5-1. Home Box will issue test commands, and you
should see the selected lighting device go on
and off to demonstrate that code learning has
been properly completed.
