6227 - 3
english
Mounting plate 1/2" or 3/4" inter
nal thread
Mounting module, left
T
e
rminating
module
DN 10 base module dual, tr
iple or quad
V
alv
e set type 6227
DN 10
DN 10 insert (fitted with manif
old or distr
ib
utor
function depending on the installation position)
Sensor holder
Lower connections:
3/8" internal thread
Hose connection
3/4" outer thread
3/4" outer thread with chec
k v
alv
e
V
alv
e set type 6227
DN 13 DN 13 insert (fitted with manif
old or distr
ib
utor
function depending on the installation position) DN 13 base module dual or tr
iple
T
e
rminating module
Mounting module, right
Mounting plate 1/2" or 3/4" inter
nal thread

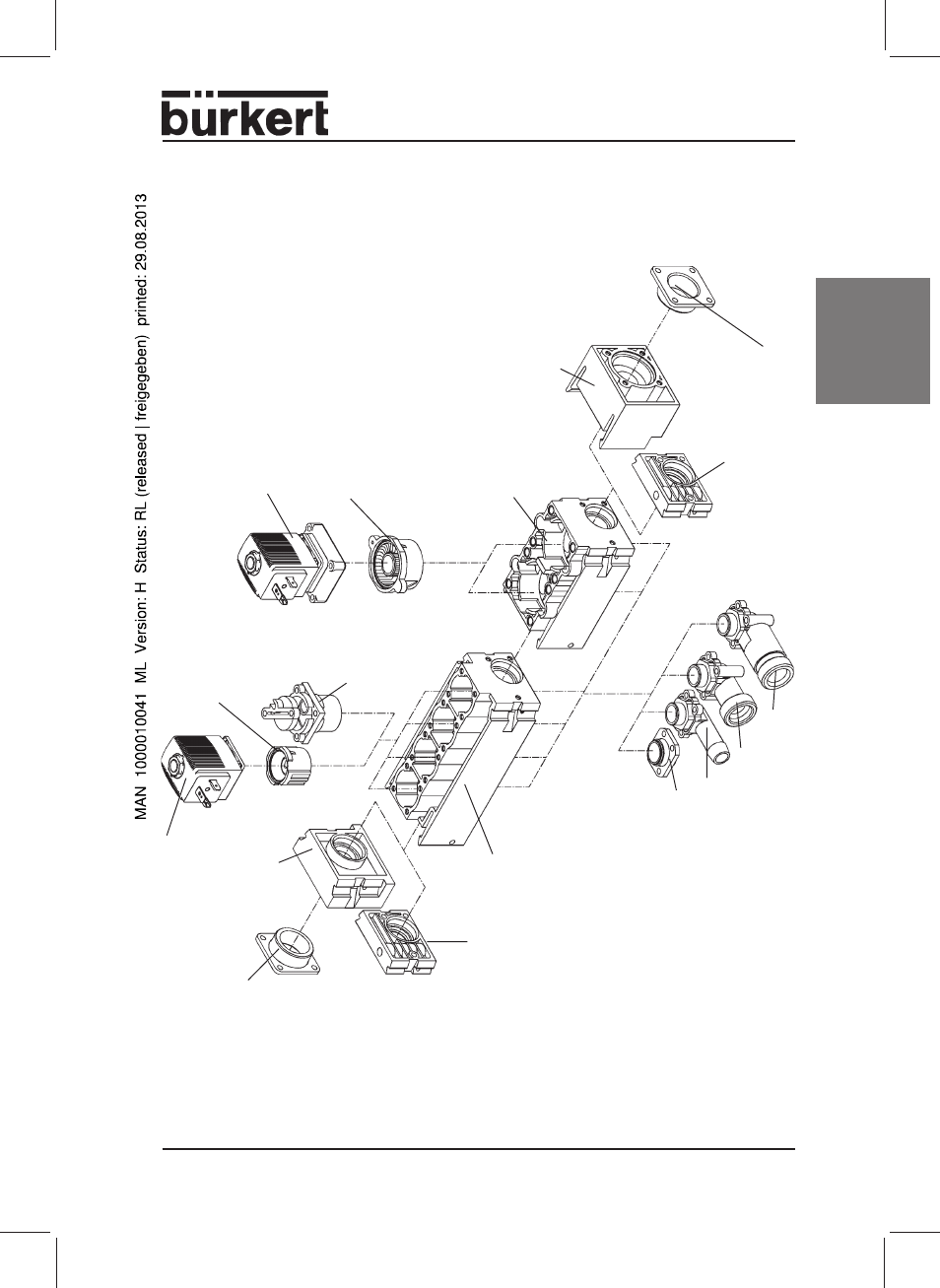

2.2 Diagram of the modular combinable water valve
