Burkert Type 5407 User Manual

Page 4

6.1.2. Type label approval

Permitted ambient temperature

Max. permitted medium temperature

T med. Max. 160°C

T Umg. -15°C bis 60°C

Reg.Nr. XXXXX

0036

Inspection body

Certification mark

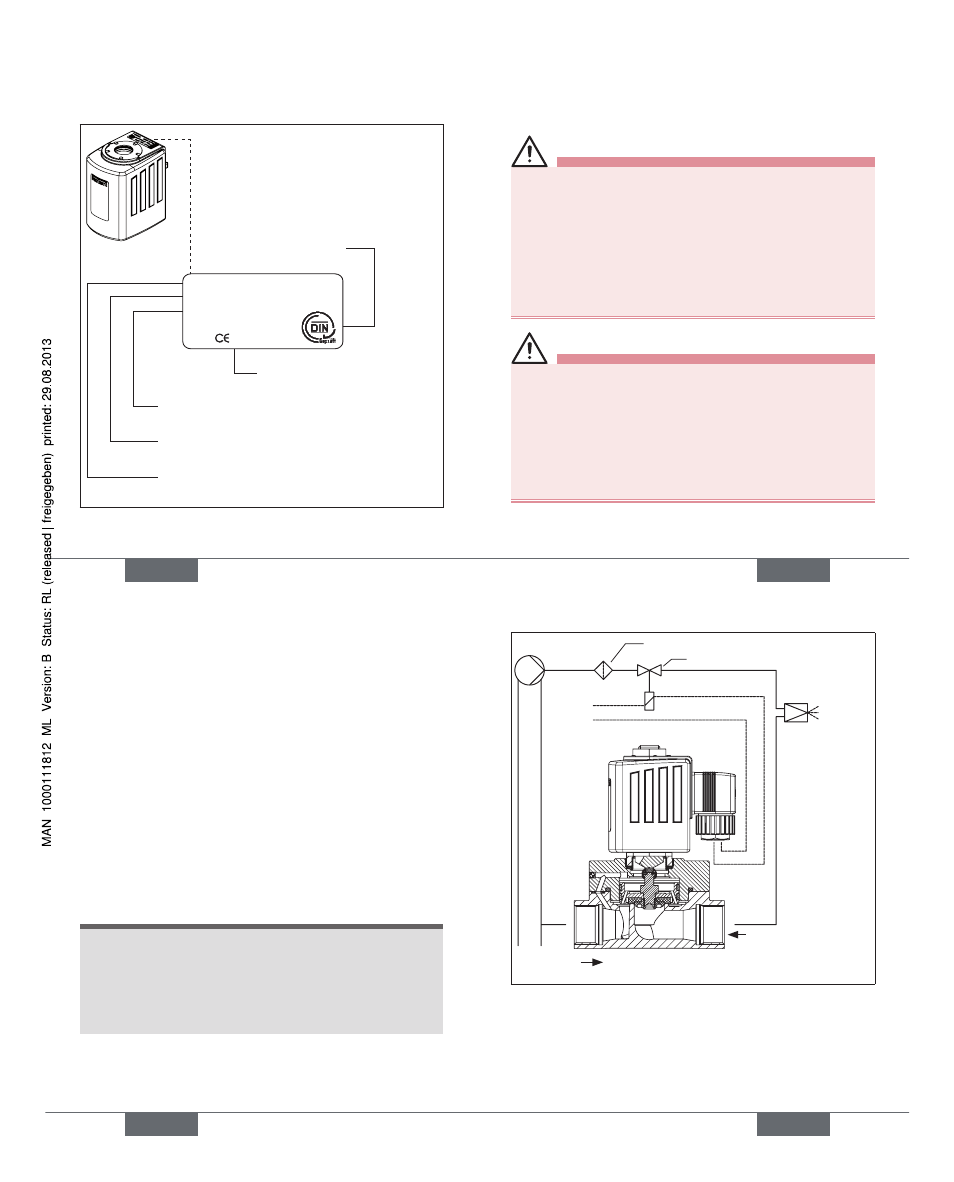

Fig. 2:

Location and description of the additional plate

english

7. insTallaTiOn

7.1. safety instructions

Danger!

Risk of injury from high pressure in the system!
• Before loosening the lines and valves, turn off the

pressure and vent the lines.

Risk of injury due to electrical shock!
• Before reaching into the system , switch off the power

supply and secure to prevent reactivation!

• Observe applicable accident prevention and safety

regulations for electrical equipment!

Warning!

Risk of injury from improper installation!
• Installation may only be carried out by authorized tech-

nicians with the appropriate tools!

Risk of injury from unintentional activation of the
system and an uncontrolled restart!
• Secure system from unintentional activation.
• Following assembly, ensure a controlled restart.

english

7.2. before installation

Installation position:
Installation can be in any position.
Preferably: Drive at the top.

→

Prior to installation check pipelines for dirt and clean if
necessary.

7.3. installation

→

Hold the device with a suitable tool (open-end wrench)
on the housing and screw into the pipeline.

→

Observe flow direction:
Direction of flow against direction of arrow on the
housing.

note!

Caution risk of breakage!
• Do not use the coil as a lifting arm.
Pipelines soiled with sealing material may result in a
malfunction!
• Do not seal pipe connections with hemp or PTFE tape.

english

Upstream dirt filter

Flow valve

Return flow from
nozzle

Safety shut-off device

Fig. 3:

Installation

english

Type 5407
