Burkert Type 0293 - Manual (Page 5)

16
7.3. electrical installation
Danger!
Risk of injury due to electrical shock!
• Before reaching into the system, switch off the power
supply and secure to prevent reactivation!
• Observe applicable accident prevention and safety
regulations for electrical equipment!
max. 1 Nm
Coil
Device socket
Seal
(make certain the position is
correct!)

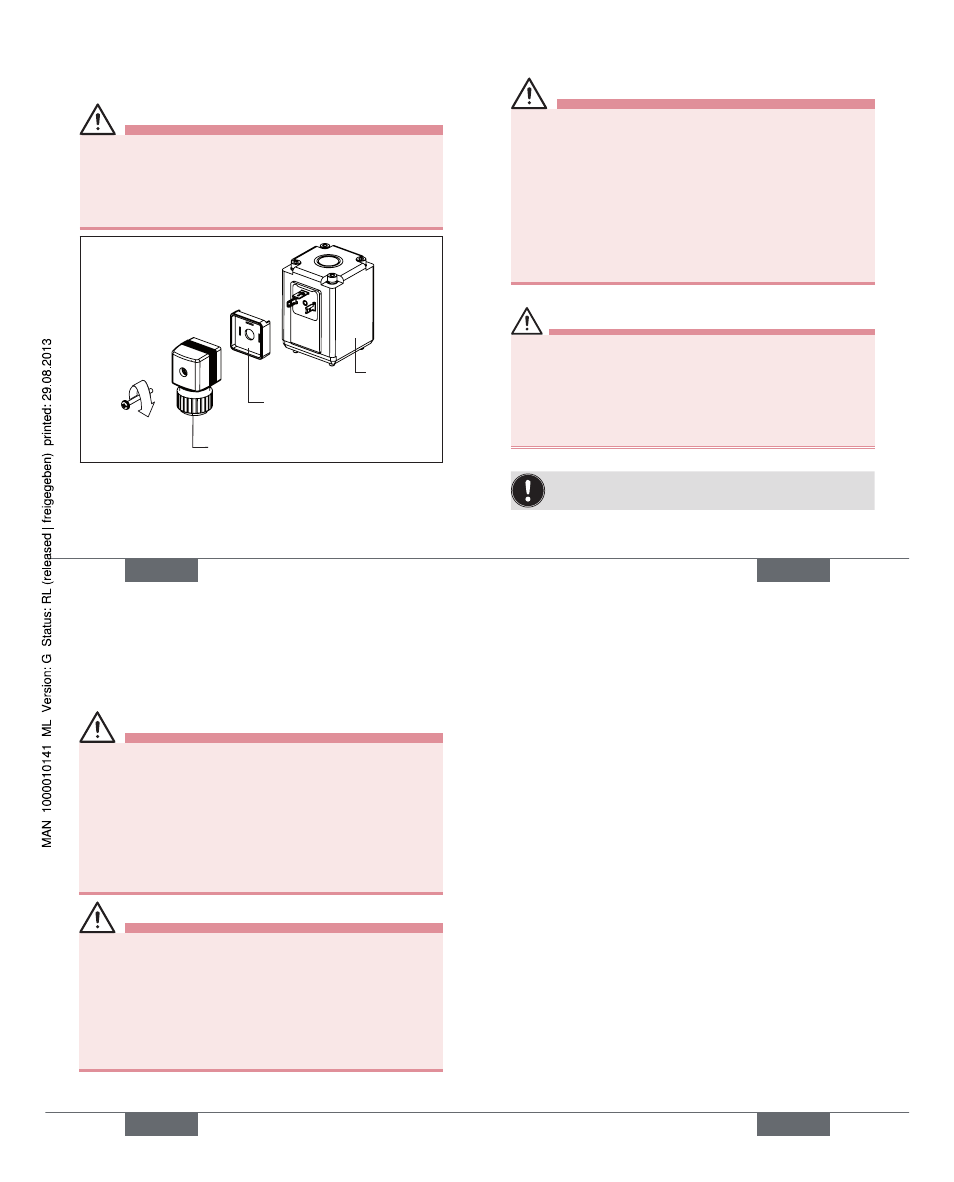

Fig. 2: Electrical installation
english 17
Warning!
Danger of electrical shock if the protective conductor
contact between the coil and housing is missing!
• Always connect protective conductor.
• Check electrical continuity between coil and housing.
Risk of short-circuit or escape of media through
leaking screw joints.
• Ensure seals are seated correctly!
• Carefully screw together coil and device socket or valve
and pipelines!
Caution!
Risk of injury due to malfunction of valves with alter-
nating current (AC).
Sticking core causes coil to overheat, resulting in a
malfunction.
• Monitor process to ensure function is in perfect working
order!
Note the voltage and current type as specified on
the rating plate.
english
18
8. mainTenance,
TrOubleshOOTing
8.1. safety instructions
Danger!
Risk of injury from high pressure in the equipment!
• Before loosening the lines and valves, turn off the pres-
sure and vent the lines.
Risk of injury due to electrical shock!
• Before reaching into the system, switch off the power
supply and secure to prevent reactivation!
• Observe applicable accident prevention and safety
regulations for electrical equipment!
Warning!
Risk of injury from improper maintenance!
• Maintenance may be carried out by authorized technicians
only and with the appropriate tools!
Risk of injury from unintentional activation of the
system and an uncontrolled restart!
• Secure system from unintentional activation.
• Following maintenance, ensure a controlled restart.
english 19
8.2. malfunctions
Malfunctions
If malfunctions occur, check whether:
• the device has been installed according to the
instructions,
• the connections are correct,
• the device is not damaged,
• all screws have been tightened,
• the voltage and pressure have been switched on,
• the pipelines are clean.
If the magnet does not pick up, ensure that:
• there is no short-circuit or coil interruption,
• the core / core area is not dirty.
If the valve still does not switch, please contact your
Bürkert Service.
english
Type 0293
