Rev A MN204260 3 of 16
SPECIFICATIONS / DIMENSIONS Step Two
Display type: LCD, 6‐digit with 4 relay
indicators
Display units: Engineering units, liquid volume
or height
Display output: ‐9999.9 to 99999.9
Character height: 0.374" (9.5 mm)
Decimal point:
Fixed
Dot indication: Relay status
User interface: Three button
Sensor input: (1) EchoPod® sensor
Supply voltage: Provided by EchoPod®
Operating temp.: F: ‐4° to 140°
C: ‐20° to 60°
Cable type: 4‐conductor, #22 AWG
Cable length: 4' (1.2m)
Cable material: Polyurethane
Enclosure rating: NEMA 4 (IP65) when mounted
Enclosure mat’l: Polycarbonate
Enclosure type:
Panel mount
Button mat’l: Silicon rubber
Compliance: CE (pending), RoHS

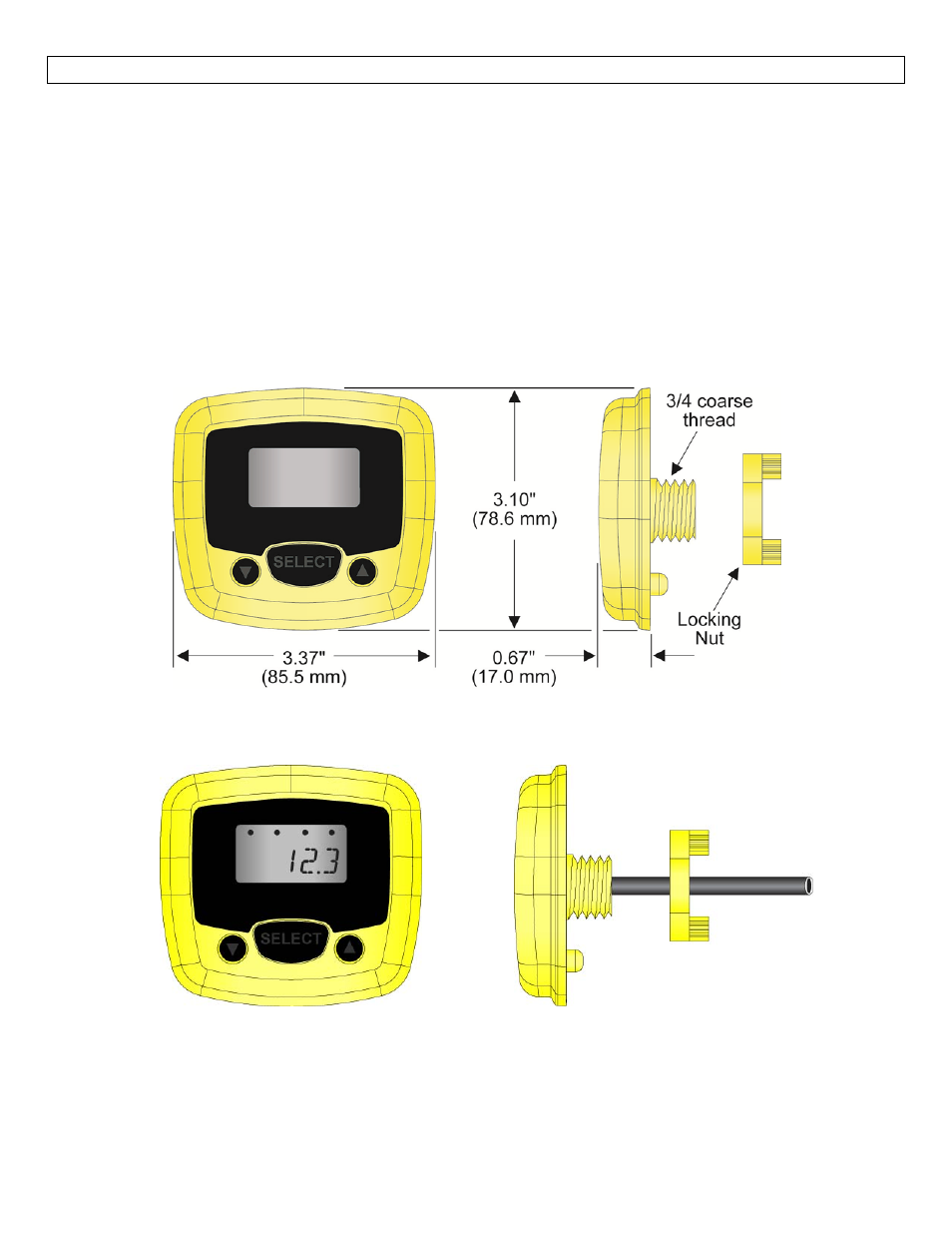

Dimensions
Included Components
PodView® comes with a 4’ (1.2m) cable, locking nut and the Quick Start.
PodView® Front View PodView® Side View
