Providing production efficiency
Page 57 of 125

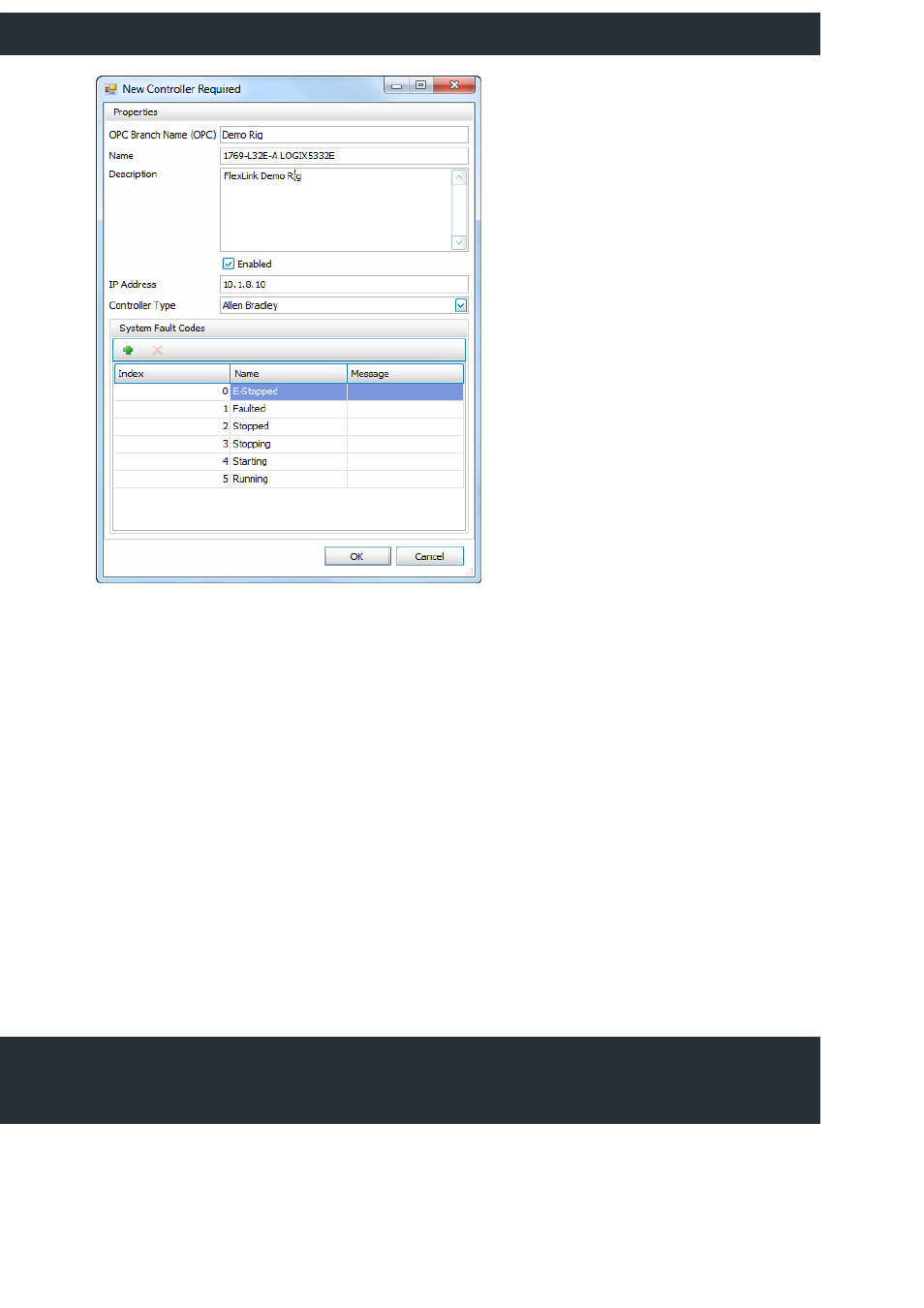

Figure 71
Enter information as described below:
• OPC Branch Name (OPC): Name of the FlexLink line.
• Name: Name of the OPC PLC Server (Copied from the Matrikon Configuration, note setting
in Figure 71 above.
• Description: Any information that can be used to describe the FlexLink line.
• Enabled: Checked by default and should remain checked.
• IP Address: IP Address of the PLC Controller
• Controller Type: Type of PLC used to control the FlexLink line.
• System Fault Codes: Fault codes applicable to the PLC configuration.
Once all information has been entered click ‘OK’ to close the dialog.
