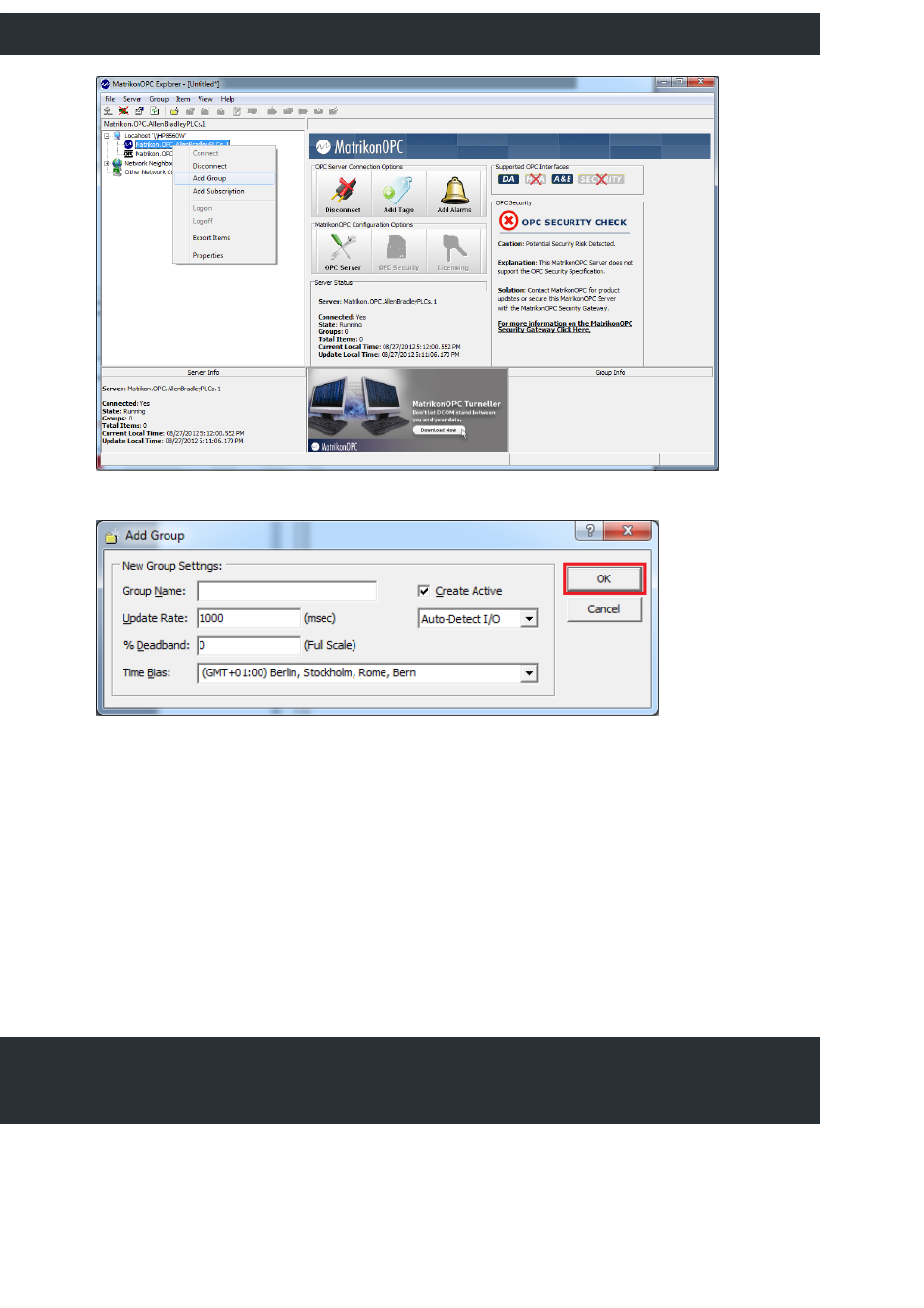

The ‘Add Group’ dialog will appear. Press ‘Ok’.
The tag browser will appear. In the upper tree structure, you will find your Ethernet/IP configuration
made previously with the MatrikonOPC Server (The Alias node can be ignored). Expand the
configuration and then you should see another node which is the PLC configuration. Expand that
node. Now the available tags are shown. First select the node in the where the Youtilize variables are
located (this varies on which PLC suite is used). The Youtilize variables can now be selected from the
‘Available Tags’ area. Drag and drop or double click on variables you want to monitor. Then click ‘Ok’
in the bottom right
