Interspace divert and merge module XBUT 180 C

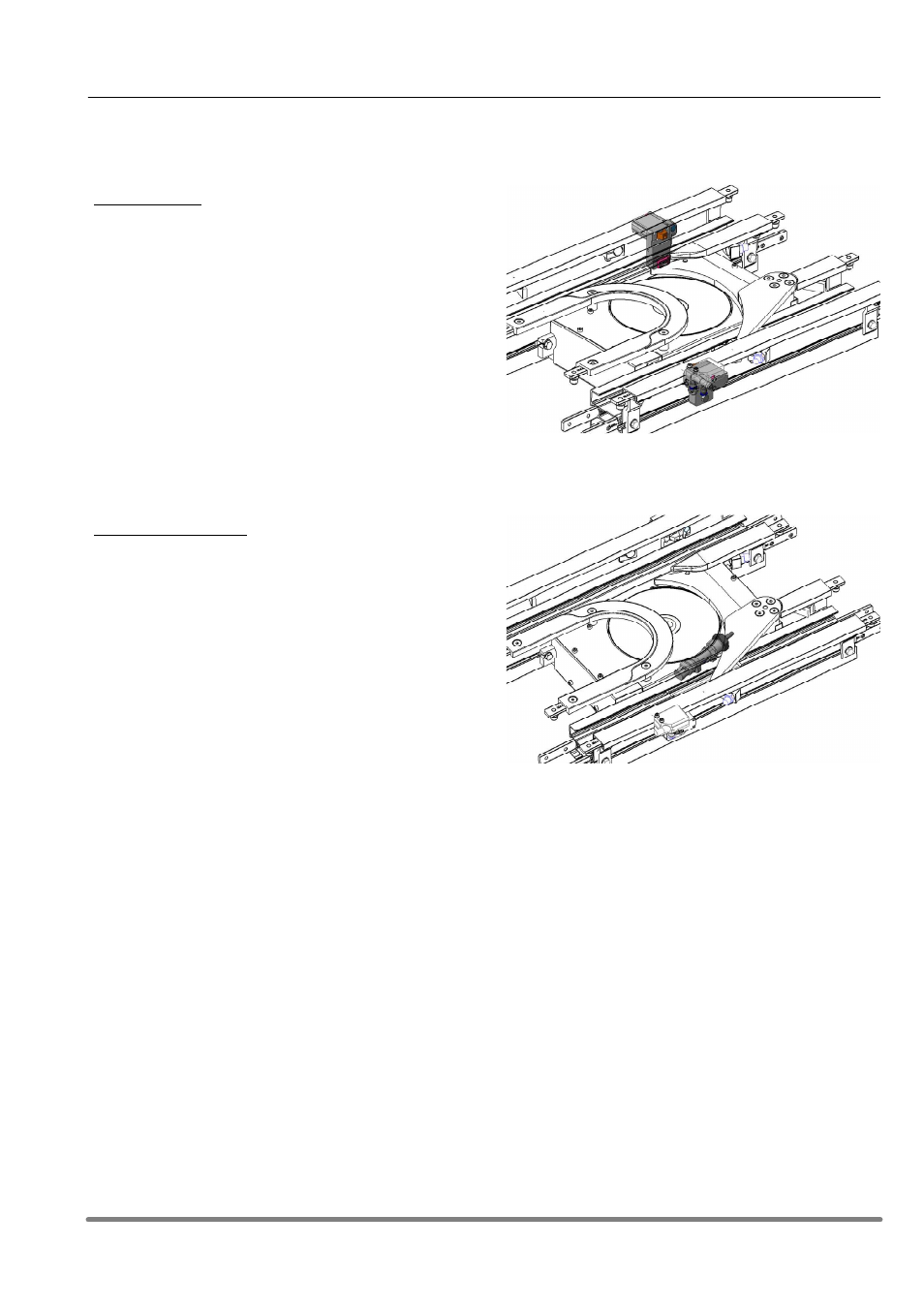

Sensor details
Sensor B1 ”Stop”
Type: Proximity switch, inductive
Position: Placed together with stop.
Function: Detects the initiator plate of the pallet before the
pallet is stopped and stays active until the pallet leaves
the stop.
The reason why the pallet is detected by the sensor
before the pallet hits the stop, is to enchance the
efficiency of the pallet flow. As the pallet is detected in
advance, the controller has time to take a decision
whether or not the pallet should be stopped. If it should
pass, the stop change state to ”Release flow” before the
pallet reach it.
Sensor B6 and B7 ”Arm”
Type: Cylinder sensor
Position: Placed on the arm cylinder.
Function: Detects the arm position
X85 Pallet
Sensor B1
Sensor B6 and B7
