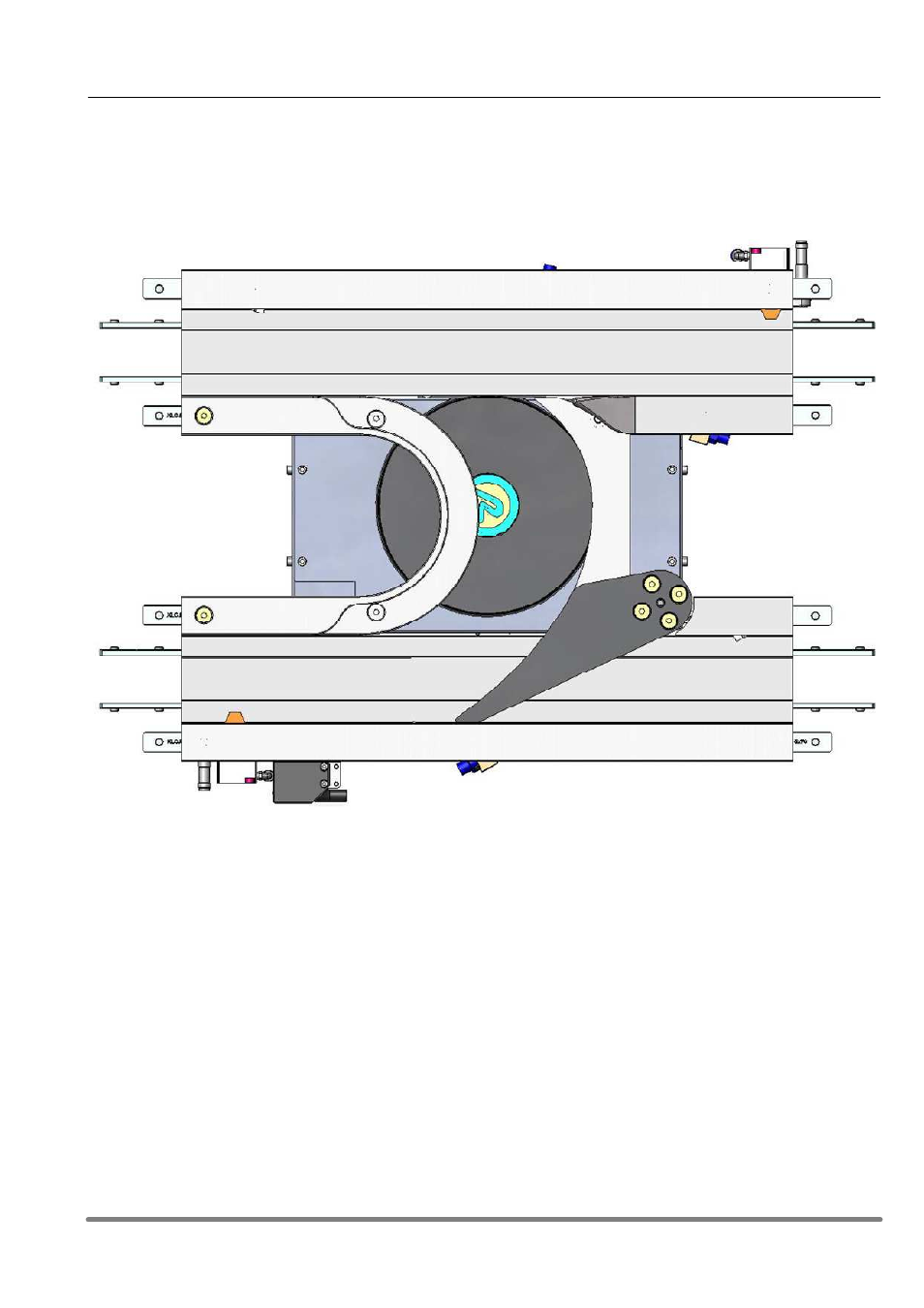

Interspace divert and merge module XBUT 180 C
X85 Pallet
Initiators and actuators
Initiators
B1 Pre-stop
B2 Occupied 1
B3 Occupied 2
B4 Occupied 3
B5 Return stop
B6 Straight flow
B7 Short-cut flow
B10 RFID
Actuators
A1 Stop. Single acting.
A2 Return stop. Single acting.
A3 Arm. Double acting.
B1
A3
B6
B7
A2
B3
B2
B4
B5
A1 B10
