X85 Pallet

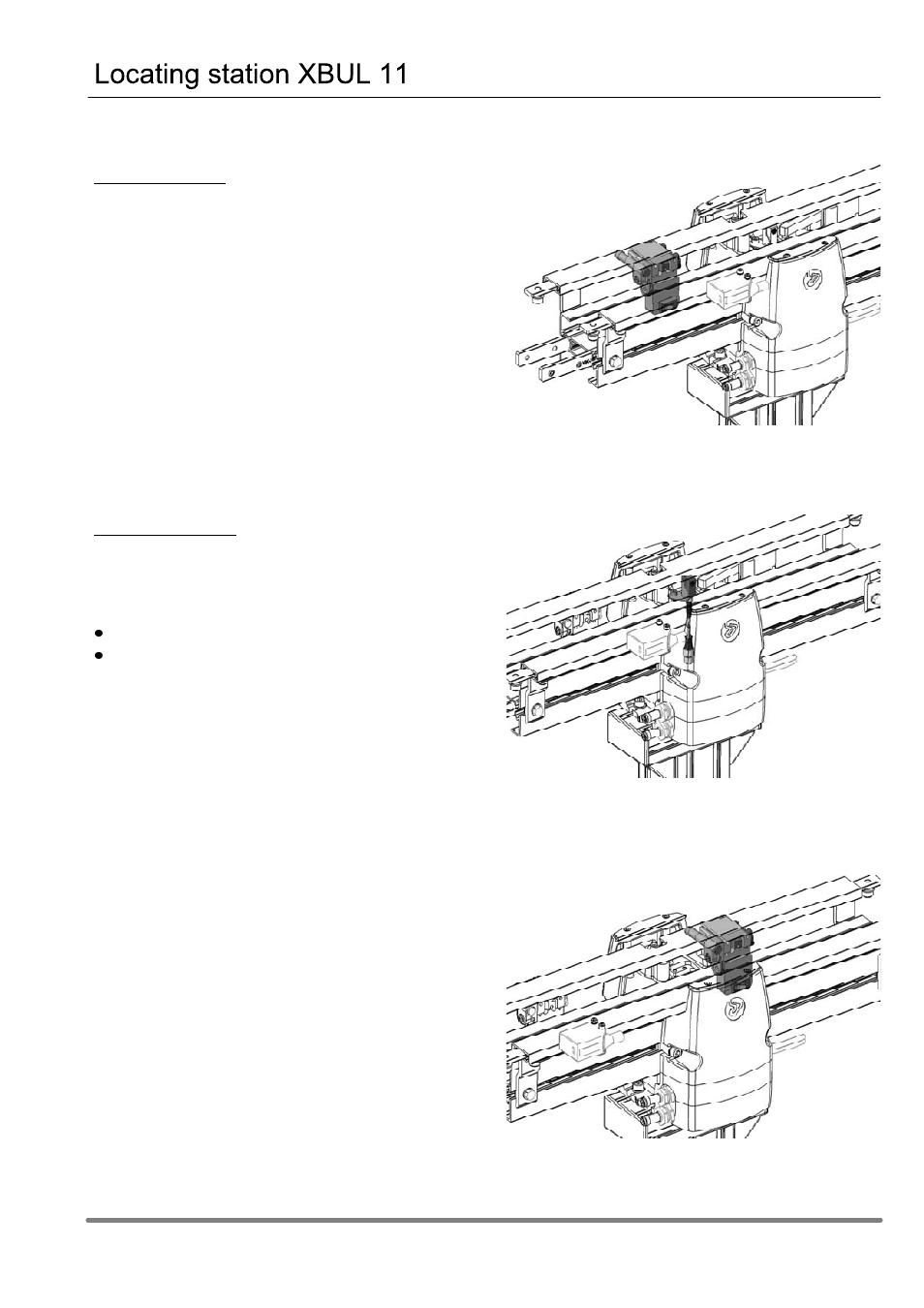

Sensor B1
Sensor details
Sensor B1 ”Pre-stop”
Type: Proximity switch, inductive
Position: Placed together with Pre-stop.
Function: Detects the initiator plate of the pallet before the
pallet is stopped and stays active until the pallet leaves
the stop.
The reason why the pallet is detected by the sensor
before the pallet hits the stop, is to enhance the efficiency
of the pallet flow. As the pallet is detected in advance, the
controller has time to take a decision whether or not the
pallet should be stopped. If if should pass, the stop
changes state to ”Release flow” before the pallet reaches
it.
Sensor B2 ”In position”
Type: Proximity switch, inductive. Model depends on
pallet length.
Position: Depends on pallet length.
100/125/175: Inside process position, left side
225: After process position, left side
Function: Detects the pallet initiator plate when the pallet
is stopped in the process position.
Sensor B2
Sensor B2, pallet length 225mm
