2 Technical bulletin
Twisted conveyor beams
Twisted beam
Components

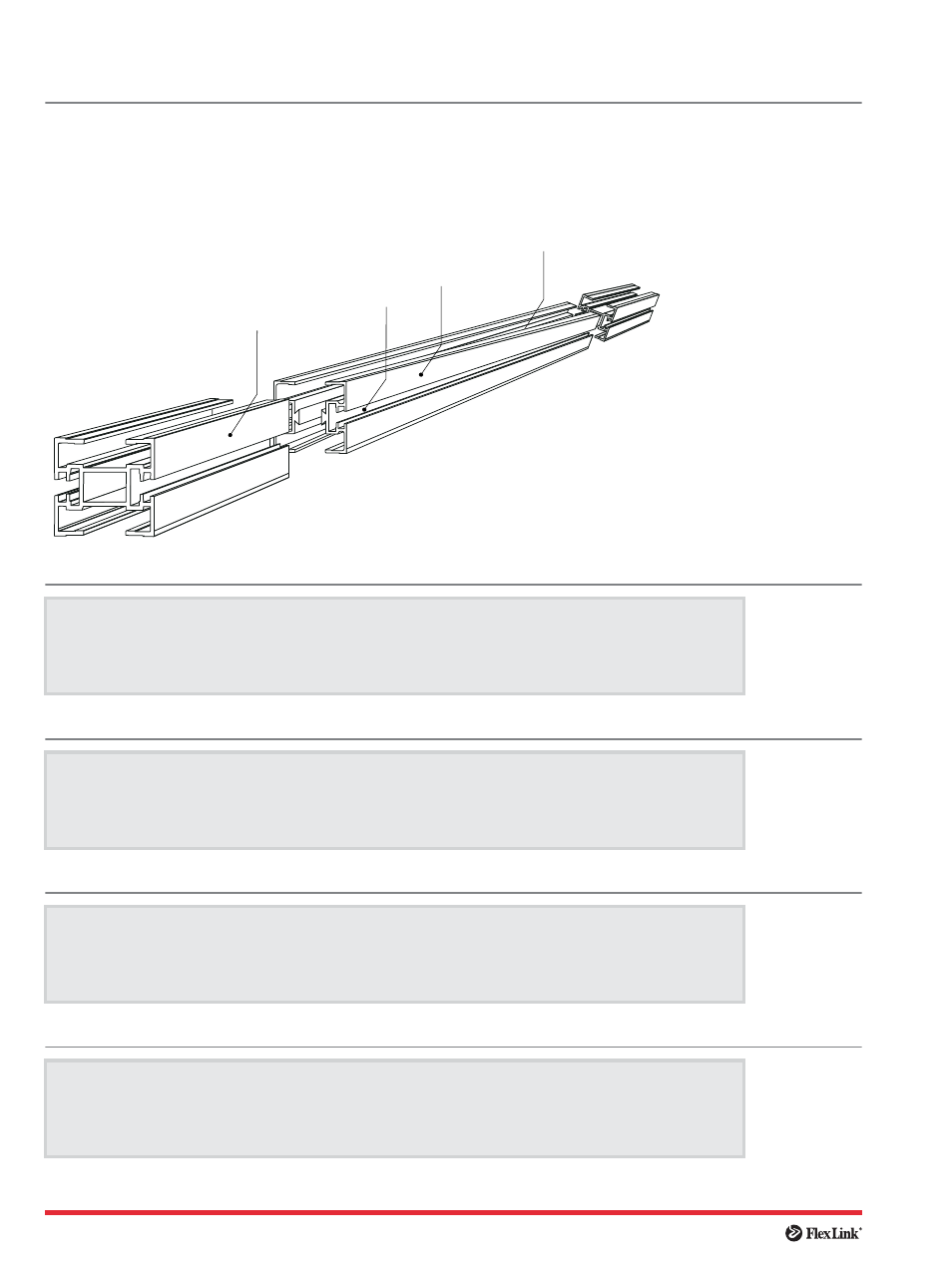

A twisted beam consists of three beam sections: two
short pieces of standard conveyor beam and one split
beam section. Note that slide rail XLCR 3 T (stainless
steel) is not suitable for twisted beams. The illustration and tables below show what components
the twisted beam consists of. Page 3 contains a short
instruction on how to twist the split beam.
1
2
3
4
Position Amount Designation Description
1
2
3
4 2
2
Se following page
8
XLCB 6 H
XLCB 6
XLCE 29x20
XLCJ 6x130 XL split beam
XL standard beam, 160 mm
Complete mounting clips
Connecting strip
Conveyor system XL
Conveyor system XM
Position Amount Designation Description
1
2
3
4 2
2
Se following page
8
XMCB 6 H
XMCB 6
XMCE 49x30
XLCJ 6x130 XM split beam
XM standard beam, 160 mm
Complete mounting clips
Connecting strip
Conveyor system XH
Position Amount Designation Description
1
2
3
4 2
2
Se following page
8
XHCB 6 H
XHCB 6
XHCE 69x30
XLCJ 6x130 XH split beam
XH standard beam, 160 mm
Complete mounting clips
Connecting strip
Conveyor system X85
Position Amount Designation Description
1
2
3
4 2
2
Se following page
8
5043914
XBCB 3A85
XBCE 42x20
XSCJ 6x130 X85 split beam
X85 standard beam, 160 mm
Complete mounting clips
Connecting strip
