14 Assembly
Feet (continued)
Height adjustment assembly
XEFU 500
Used with XEFG 70 T foot only.
Mounting:
Allen key 5 mm
Lock brackets (included) 3903139
Hex socket head screws (included) MC6S 8×20

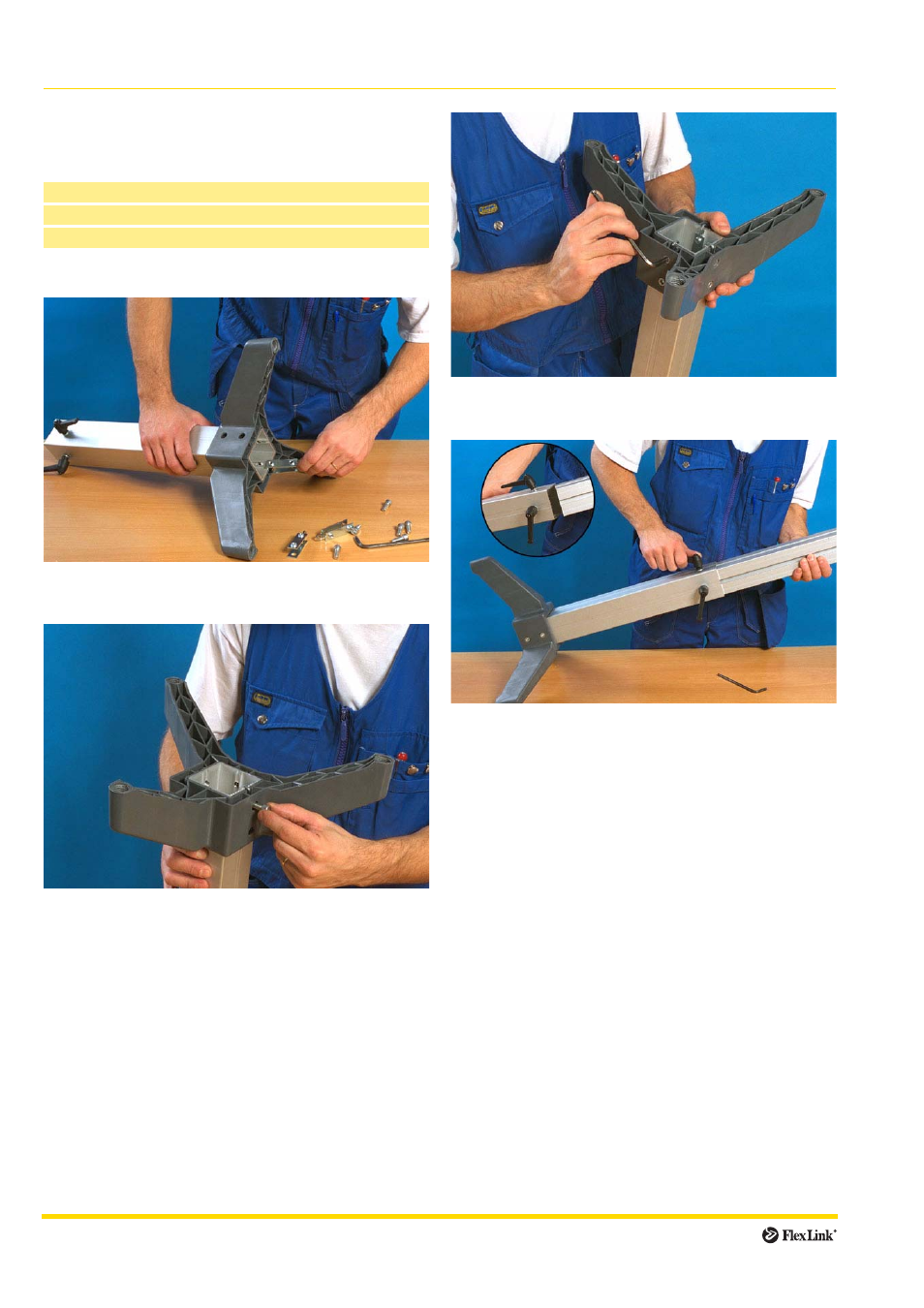

1 Attach the height adjustment assembly to the foot by
sliding the lock brackets into the slots on the beam.
2 Insert screws.
3 Tighten screws using an Allen key. The recom-
mended tightening torque is 15 Nm.
4 Insert the beam into the adjustment assembly and set
it at the required height.
Fasten the beam using the adjustment assembly lock-
ing levers.
