Visible Light PIR Camera OSD Menu Tree eLineTechnology.com

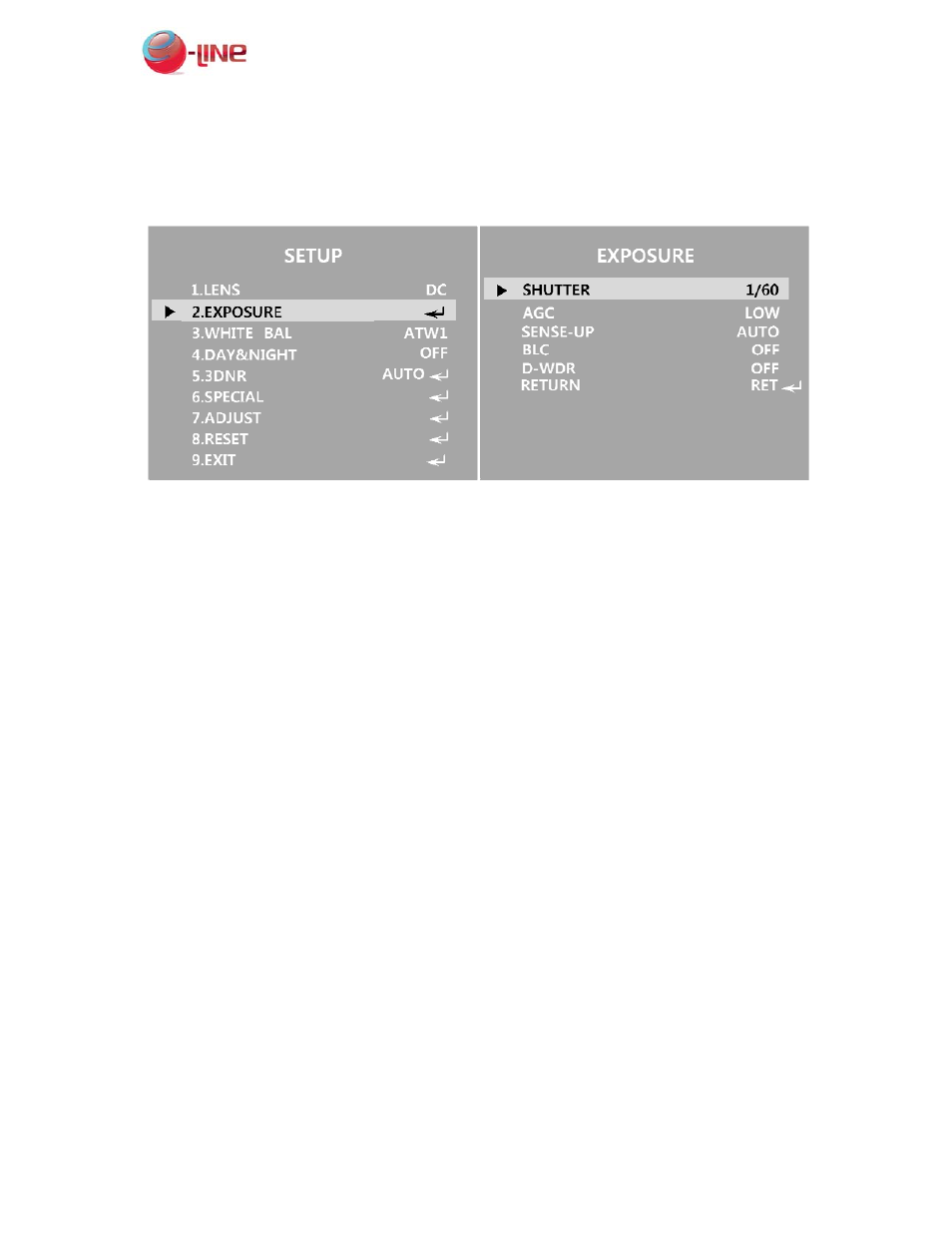

2. EXPOSURE
1. Once the SETUP menu screen is displayed, choose ‘ EXPOSURE’ by using the Up or Down
buttons in order to indicate the arrow ‘EXPOSURE’
2. You can select wanted mode by using the Up or Down buttons.
● SHUTTER : You can select condition and speed control of the SHUTTER.
AUTO : Select this to control the shutter speed automatically. Once ESC is selected, the shutter
speed is automatically controlled depending on the ambient illumination of the subject.
FLK : You are able to select when you experience picture flicker, which can happen when there
is a clash with the frequency of the installed lighting.
MANUAL: You can control shutter speed manually. (1/60(50)~1/100,000, x2,x4,x8,x16, x32,x64,
x128, x256)
● AGC (Auto Gain Control) : The higher the gain level, the brighter the screen. But the higher
the noise.
OFF : Deactivates the AGC function
LOW : Allows automatic gain control from 5.3dB to 26dB.
MIDDLE : Allows automatic gain control from 5.3dB to 32dB.
HIGH : Allows automatic gain control from 5.3dB to 37dB.
● SENSE-UP: When it is night or dark circumstance, the camera automatically detects the light
level and maintains a clear picture if this mode is operated.
OFF : Deactivates the SENSE-UP function.
AUTO : Activated the SENSE-UP function.
※ You can choose the SENSE-UP value from x2 to x256.
_ _ _ : When the AGC function is to set by OFF, SENSE-UP can't be changed the setting.
