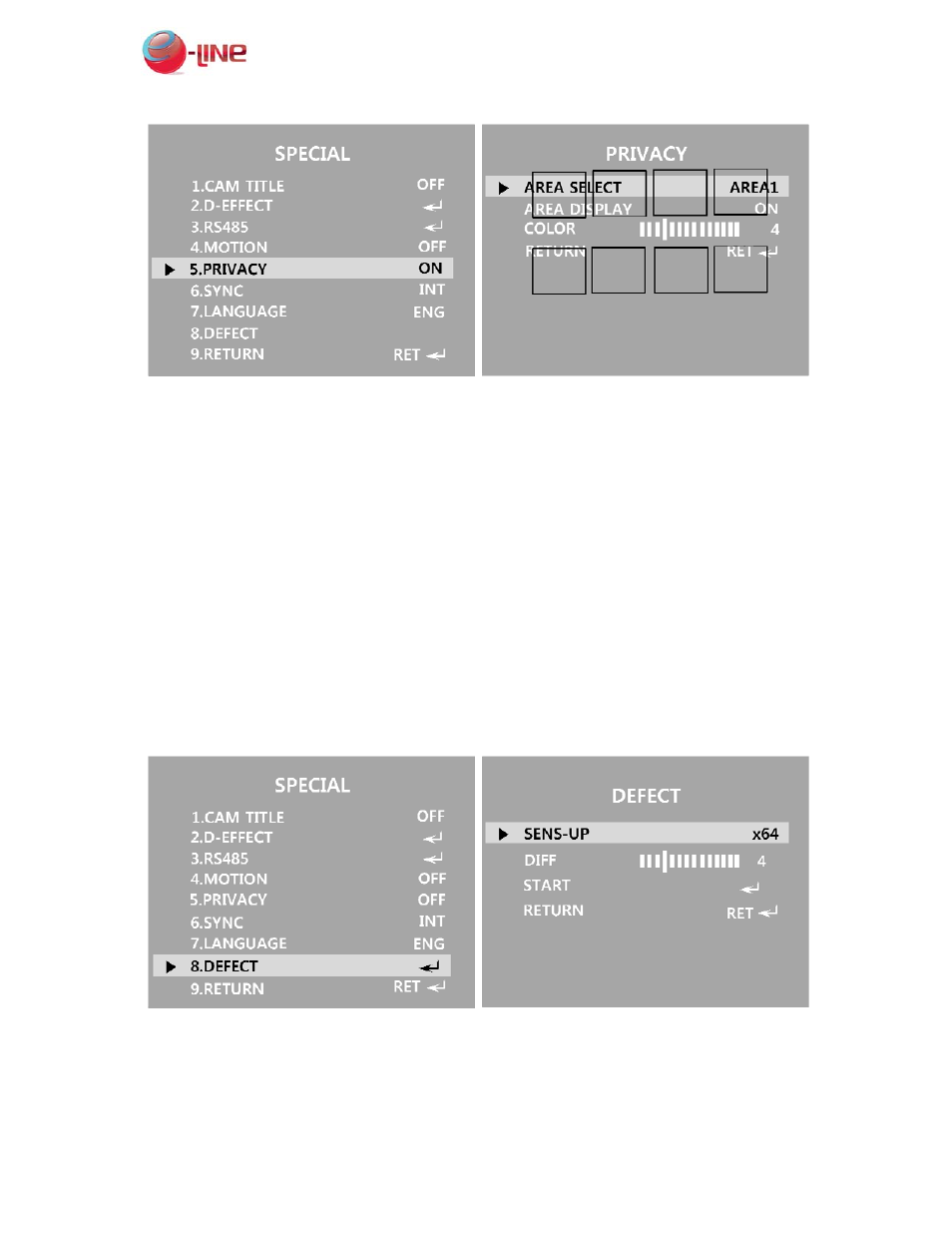

Visible Light PIR Camera OSD Menu Tree

eLineTechnology.com

AREA SELECT : You can set up the PRIVACY area from AREA1 to AREA8.
AREA DISPLAY : Move the arrow down to AREA DISPLAY. AREA DISPLAY can be displayed on

screen ON or OFF by pushing the button LEFT or RIGHT. When set OFF of
each AREA, the color shades will not be display on screen. When set ON of
each AREA, the color shades will appear on screen.

COLOR : You can select your color shade from 15 colors.


LANGUAGE

You can select the menu language according to your requirements.
You can change Display Language on [Language] of function Menu by operating LEFT/RIGHT
buttons. (ENGLISH,KOREAN,JAPANESE,CHINESE1,CHINESE2)

DEFECT

You can compensate by using 'DEFECT' function if there is defect on CCD Sensor.

1.Once the SETUP menu screen is displayed, you can choose ‘DEFECT’ by using the UP/DOWN
buttons in order to indicate the arrow ‘DEFECT’
2.After finish set up the mode by use of SENS-UP, DIFF, press the 'START' button.
3.Cover the lens then press set key
